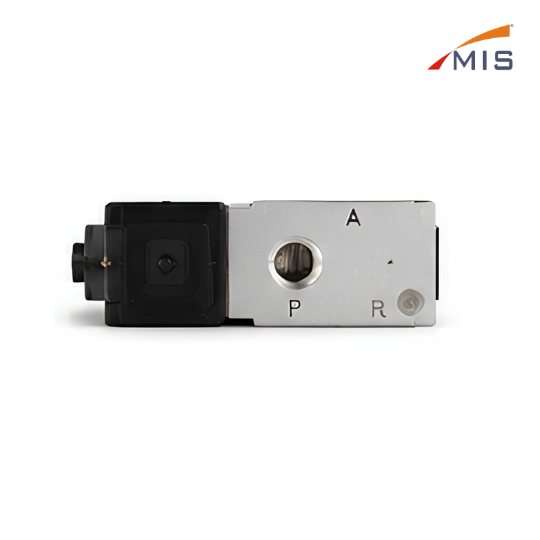

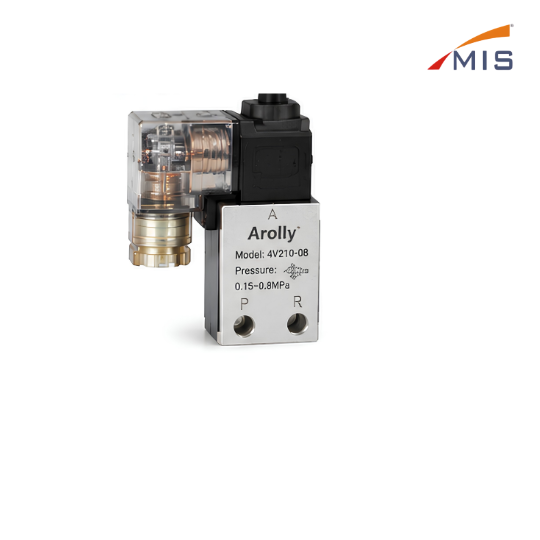

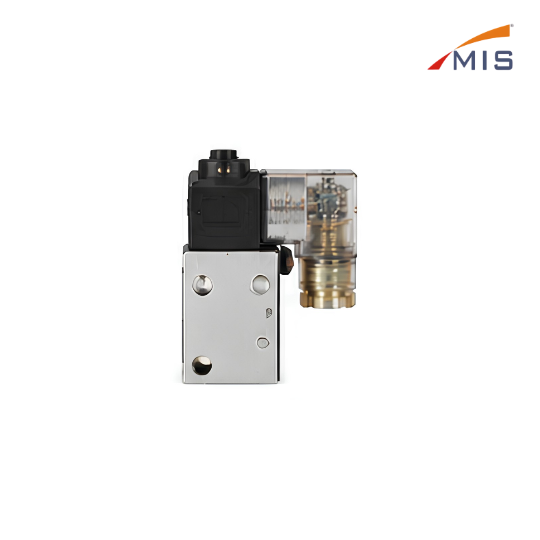

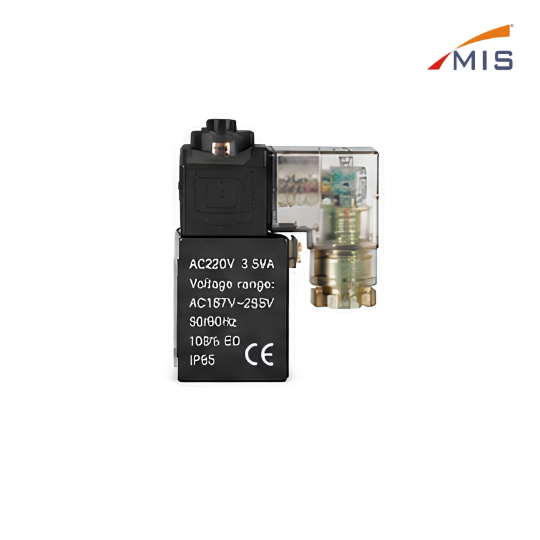

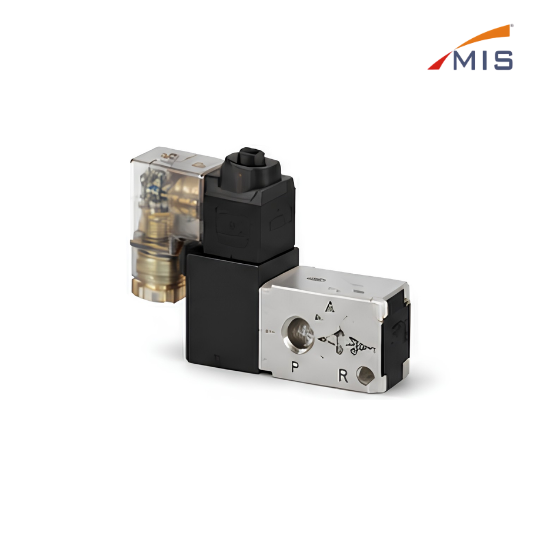

2/2 WAY MINI SOLENOID VALVE(4V-210-08)

Size 4V210-08AC220V(1/4)"

Have questions about orders, wholesale pricing, or bulk inquiries?

2/2 way mini solenoid valve is a direct acting poppet type valve. It is normally closed (NC) and opens when energized. Compact structure, small size, fast response and low power consumption. Widely used in pneumatic control systems.

Specifications

Model Series

4V200 Series

Valve Type

2/2 Way, Normally Closed

Actuation

Direct Acting

Port Size

1/4" BSPP

Orifice Size

2.0 mm

Working Medium

Air (Filtered by 40μm filter element)

Working Pressure

0.15 0.8 MPa (21 114 psi)

Proof Pressure

1.2 MPa (175 psi)

Ambient Temperature

-5 ~ +50 °C

Voltage

AC220V 50/60Hz

Power Consumption

AC: 3.5VA

Insulation Class

Class B

Protection Class

IP65 (DIN 40050)

Connector Type

DIN Type with LED (Optional)

Body Material

Aluminum Alloy

Seal Material

NBR

Response Time

≤ 20 ms

Mounting Type

Through Holes

Weight (Approx.)

0.16 kg
