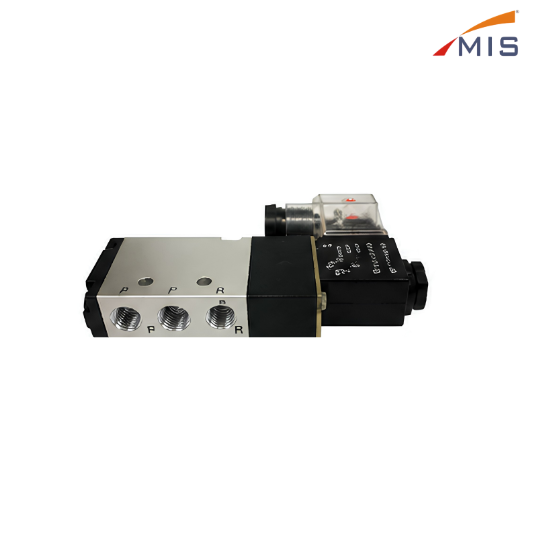

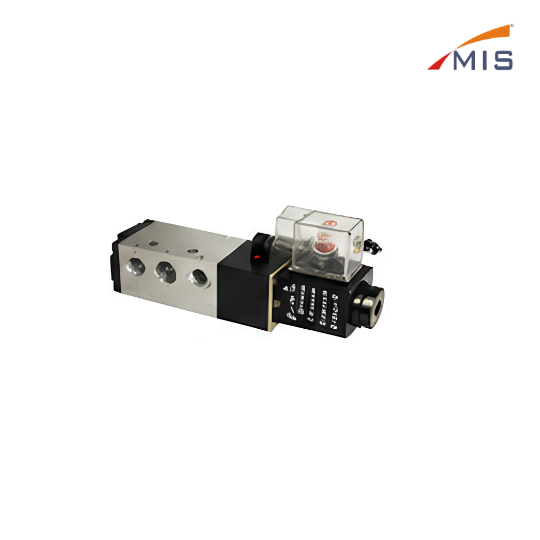

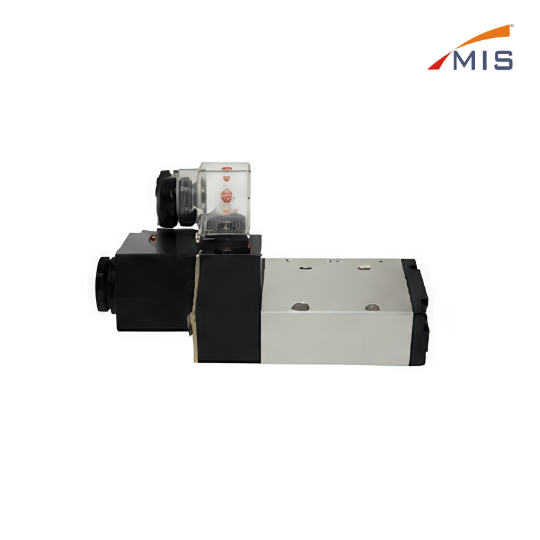

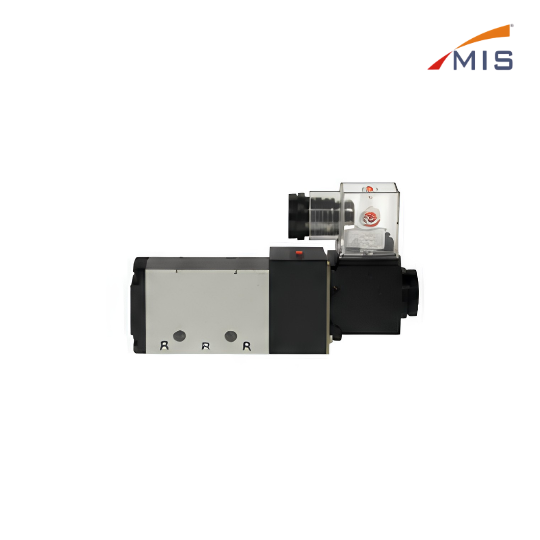

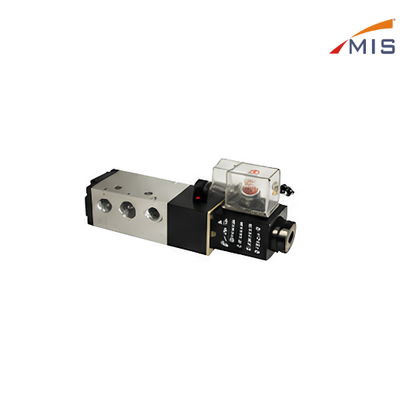

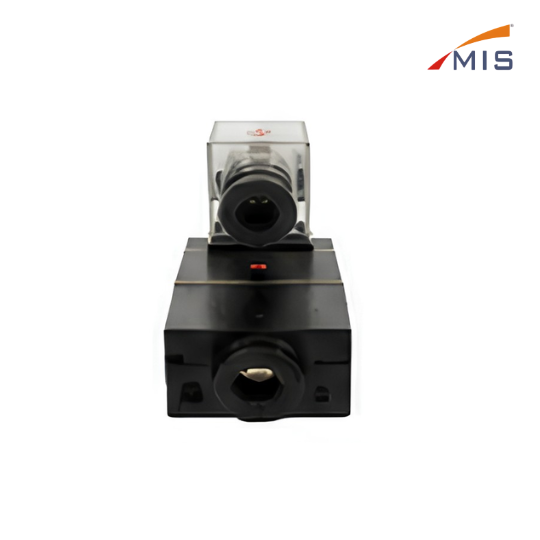

3/2 SERIES SOLENOID VALVE WITH AC220V COIL

3/2 SERIES SOLENOID VALVE WITH AC220V COIL

Size 3V1-210-06(1/8)" 3V1-210-08(1/4)" 3V1-310-10(3/8)" 3V1-410-15(1/2)"

Have questions about orders, wholesale pricing, or bulk inquiries?

3/2 series solenoid valve is a direct acting poppet type valve with high flow capacity, low power consumption and fast response. It is widely used in pneumatic control systems.

Specifications

Model Series

:

3V1 Series

Valve Type

:

3/2 Way, Direct Acting, Normally Closed

Port Size

:

1/8", 1/4", 3/8", 1/2" BSPP

Working Medium

:

Air (Filtered by 40μm filter element)

Actuation

:

Solenoid/Spring Return

Working Pressure

:

0.15 0.8 MPa (21 ~ 114 psi)

Max. Pressure

:

1.0 MPa (145 psi)

Ambient Temperature

:

-5 +50 °C

Coil Type

:

AC220V, 50/60Hz

Power Consumption

:

3.5VA

Insulation Class

:

Class B

Protection Class

:

IP65 (DIN 40050)

Body Material

:

Aluminum Alloy

Seal Material

:

NBR

Response Time

:

≤ 15 ms

Installation

:

In-line or Manifold

Weight

:

Refer to table below
