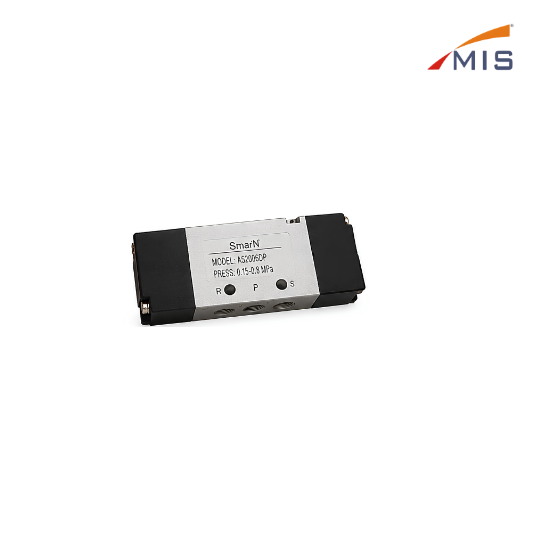

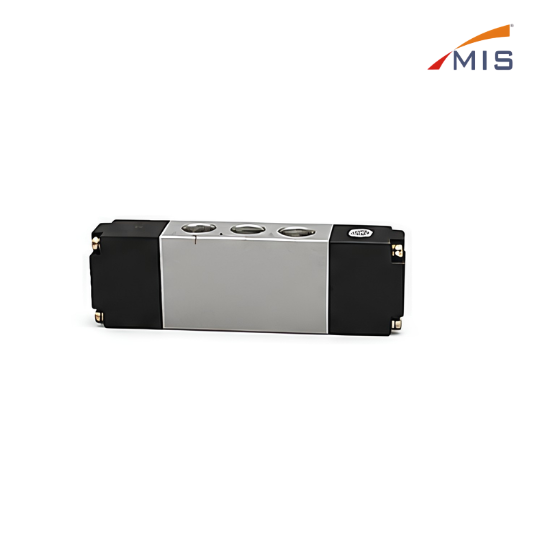

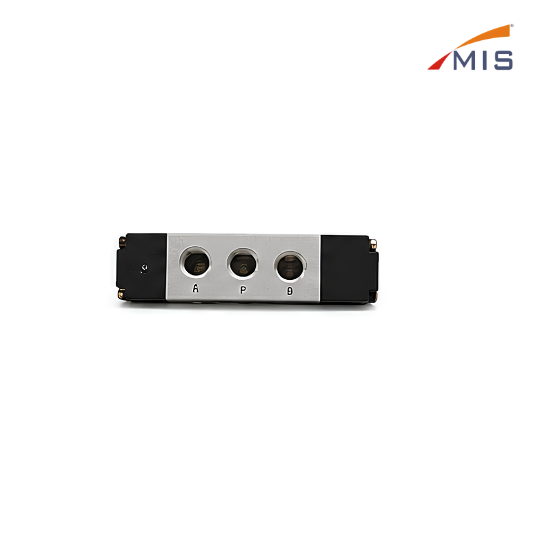

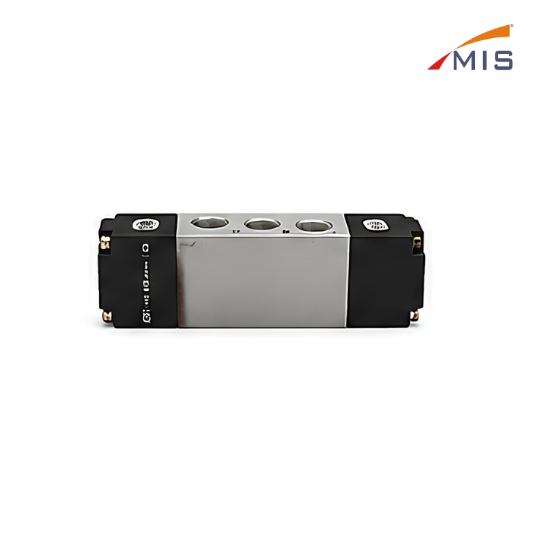

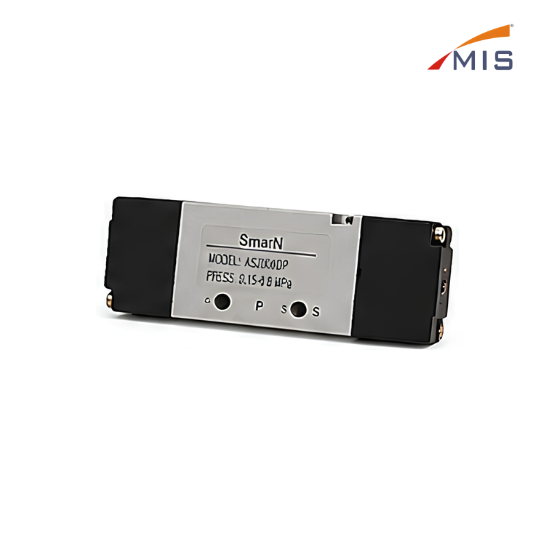

5/2 DOUBLE PILOT VALVE

5/2 DOUBLE PILOT VALVE

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

5/2 Double Pilot Valve is a pneumatically operated directional control valve with double pilot actuation and spring return. It is designed to control the direction of air flow to double acting actuators by using air signals from both sides.

Specifications

 Model Series
:
4A200 Series
 Valve Type
:
5/2 Way, Double Pilot
 Actuation
:
Pneumatic Pilot (Double Pilot)
 Port Size
:
1/8", 1/4", 3/8", 1/2" BSPP
 Working Medium
:
Air (Filtered by 40μm filter element)
Working Pressure
:
0.15 0.8 MPa (21 ~ 114 psi)
Max. Pressure
:
1.0 MPa (145 psi)
Effective Area
:
14.0 mm² (Cv=0.78)
Flow Capacity
:
980 NI/min
 Pilot Pressure
:
0.15 0.8 MPa (21-114 psi)
 Coil Type
:
-
 Body Material
:
Aluminum Alloy
Seal Material
:
NBR
Insulation Class
:
-
Installation
:
In-line or Manifold
Mounting Type
:
Through Holes
Weight (Approx.)
:

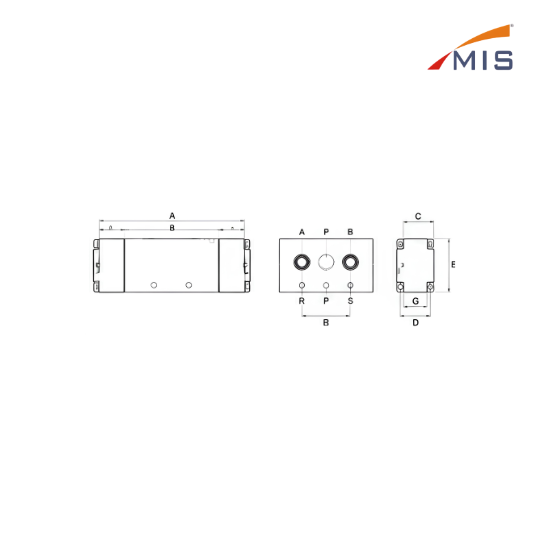

Refer to table below
