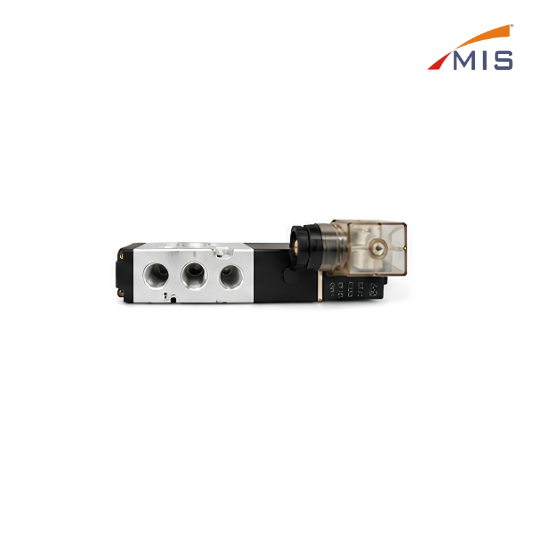

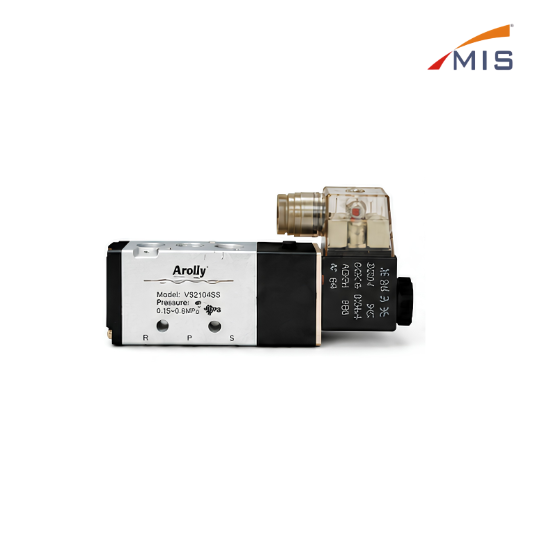

5/2 SERIES SOLENOID VALVE WITH AC220V COIL

Size 4V210-06 4V200-06 4V200-08 4V310-10 4V410-15

Have questions about orders, wholesale pricing, or bulk inquiries?

5/2 series solenoid valve is a pilot operated spool valve with high flow capacity, low power consumption and fast response. It is widely used in pneumatic control systems to control the direction of air flow in double

acting actuators.

Specifications

Model Series

4V200 Series

Valve Type

5/2 Way, Pilot Operated, Spring Return

Port Size

1/8", 1/4", 3/8", 1/2" BSPP

Working Medium

Air (Filtered by 40μm filter element)

Actuation

Solenoid/Spring Return

Working Pressure

0.15 0.8 MPa (21 ~ 114 psi)

Max. Pressure

1.0 MPa (145 psi)

Ambient Temperature

-5 +50 °C

Coil Type

AC220V, 50/60Hz

Power Consumption

3.5VA

Insulation Class

Class B

Protection Class

IP65 (DIN 40050)

Body Material

Aluminum Alloy

Seal Material

NBR

Response Time

≤ 15 ms

Installation

In-line or Manifold

Weight

Refer to table below
