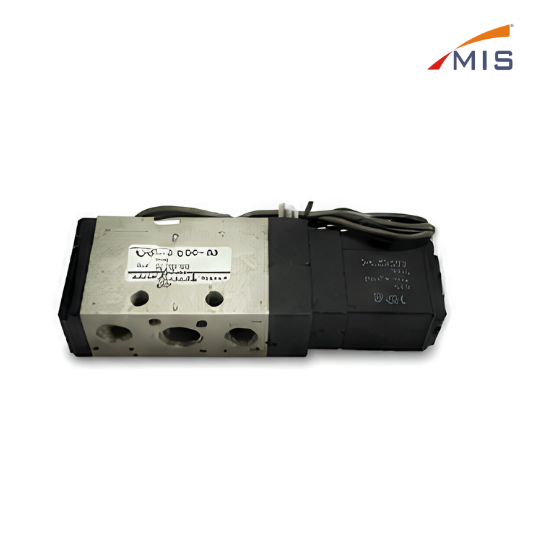

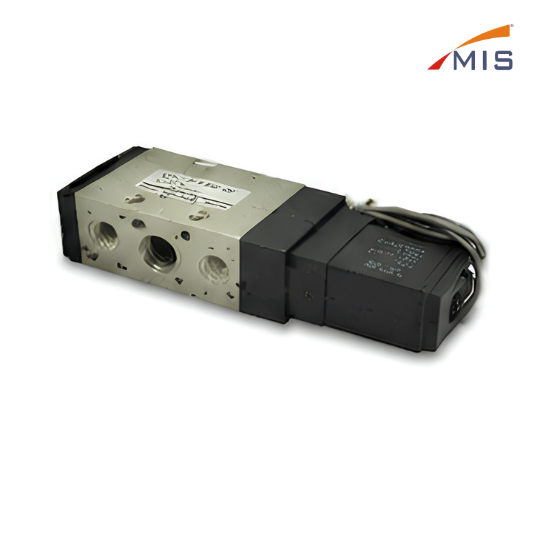

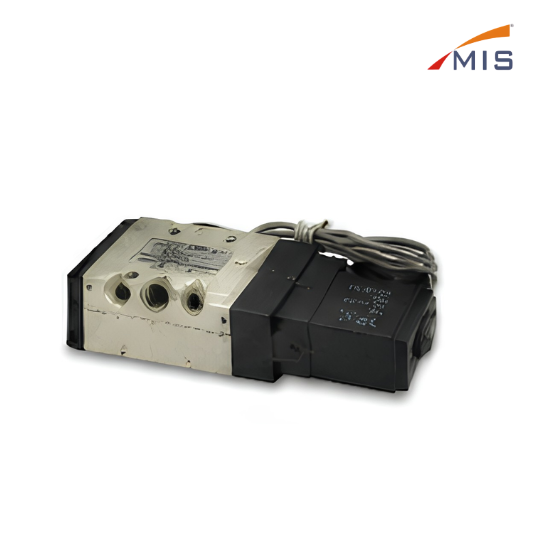

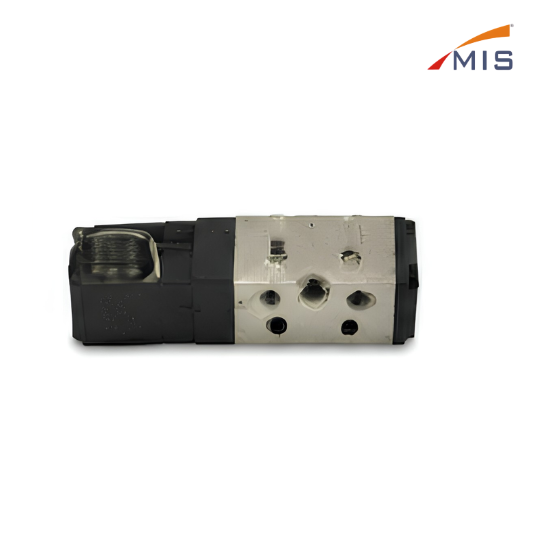

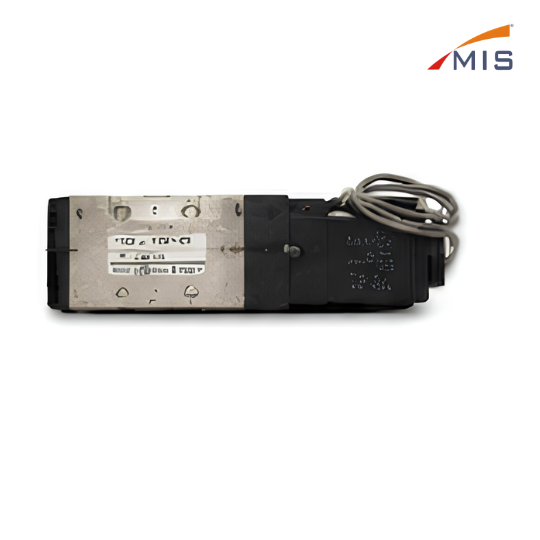

5/2 SINGLE PILOT VALVE (4A-210 - 06)

5/2 SINGLE PILOT VALVE (4A-210 - 06)

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

pilot signal. 5/2 Single Pilot Valve is a pneumatically piloted spool valve with spring return. It controls the direction of air flow to double acting actuators using a single

Specifications

 Model Series
:
4A200 Series
Valve Type
:
5/2 Way, Single Pilot
Actuation
:
Pneumatic Pilot / Spring Return
Port Size
:
1/4", 3/8", 1/2" BSPP
 Working Medium
:
Air (Filtered by 40μm filter element)
Working Pressure
:
0.15 0.8 MPa (21-114 psi)
Max. Pressure
:
1.0 MPa (145 psi)
Ambient Temperature
:
-5 ~ +50 °C
Effective Area
:
14.0 mm² (Cv=0.78)
Flow Capacity
:
980 NI/min
Pilot Pressure
:
0.15 0.8 MPa (21-114 psi)
 Coil Type
:
-

Body Material


:
Aluminum Alloy
Seal Material
:
NBR
Insulation Class
:
-
Installation
:
In-line or Manifold
Mounting Type
:
Through Holes
Weight (Approx.)
:

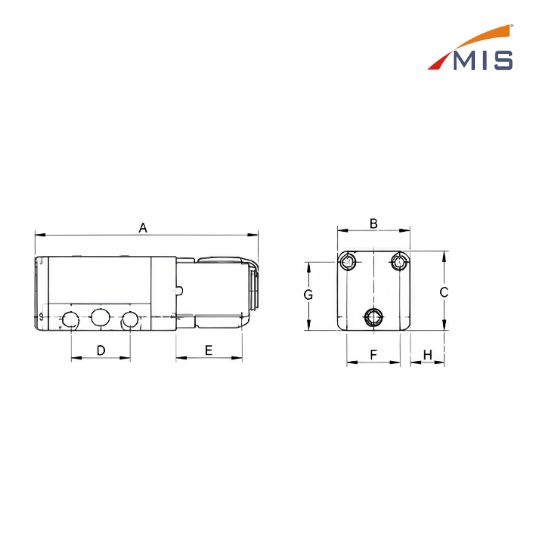

Refer to table below

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
