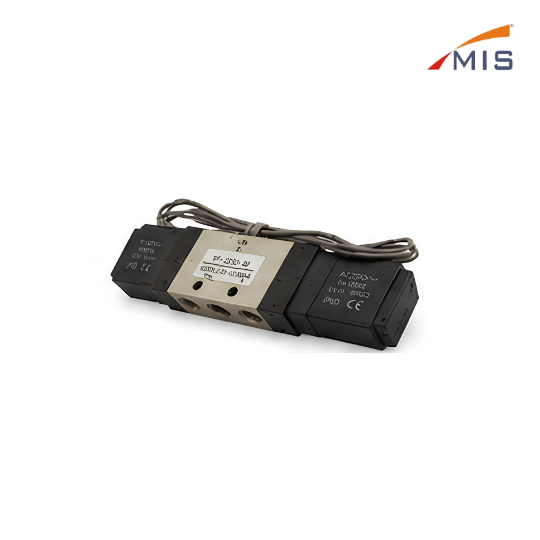

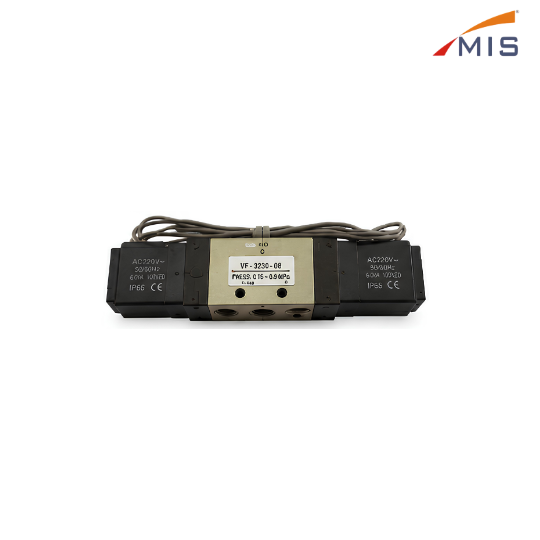

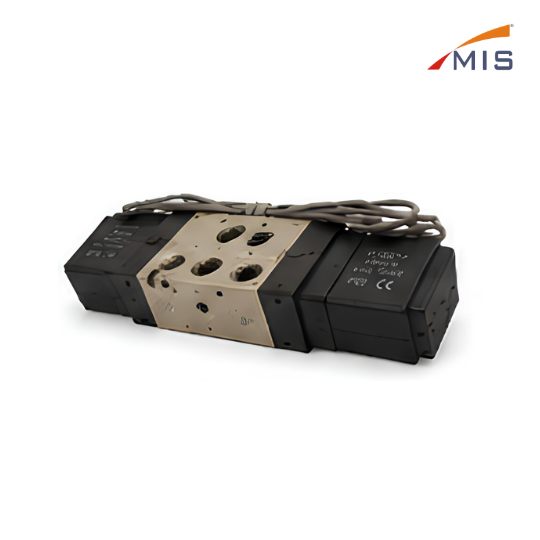

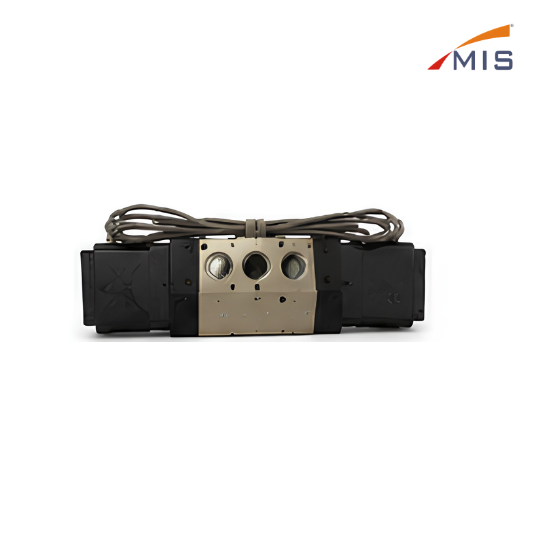

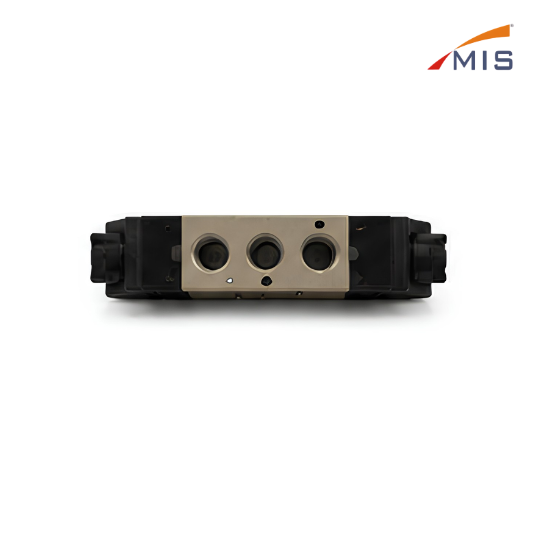

5/2 SMC TYPE DOUBLE SOLENOID VALVE

5/2 SMC TYPE DOUBLE SOLENOID VALVE

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

5/2 SMC type double solenoid valve is a pilot operated spool valve with double solenoid and spring return. It is designed to control the direction of compressed air in pneumatic systems. SMC type sub-base mounting, compact structure, high flow capacity, fast response and long service life.

Specifications

 Model Series
:
VF-3230 Series
 Valve Type
:
5/2 Way, Double Solenoid (Spring Return)
 Actuation
:
Solenoid / Spring Return
 Port Size
:
1/4" BSPP
Working Medium
:
Air (Filtered by 40μm filter element)
Working Pressure
:
0.15 0.8 MPa (21-114 psi)
Max. Pressure
:
1.0 MPa (145 psi)
Ambient Temperature
:
-5-+50 °C
Flow Capacity (Cv)
:
1.2 (Cv=0.67)
Response Time
:
≤ 20 ms
Coil Type
:
AC220V, 50/60Hz
Power Consumption
:
6.0VA
Insulation Class
:
Class B
Protection Class
:
IP65 (DIN 40050)
Body Material
:
Aluminum Alloy
Seal Material
:
NBR
Installation
:
SMC Type (Sub-base Mounting)
Mounting Type
:
Through Holes
Weight (Approx.)
:
0.28 kg
