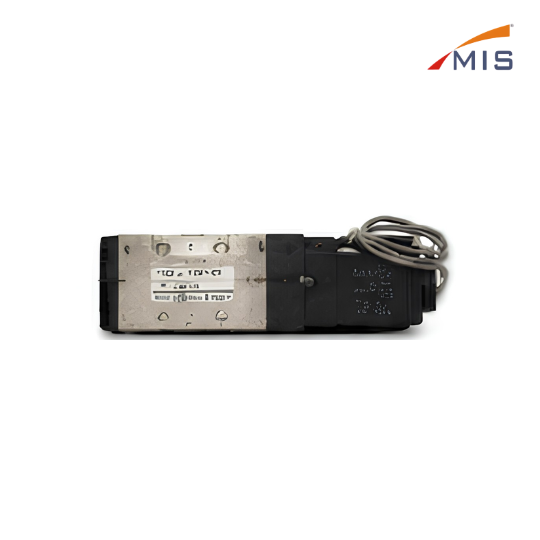

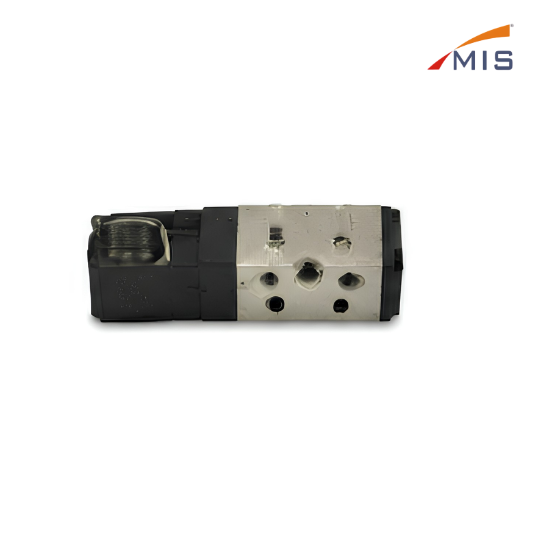

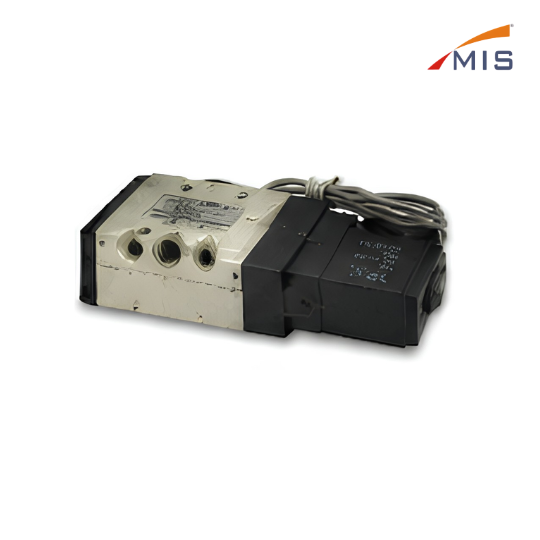

5/2 SMC TYPE SINGLE SOLENOID VALVE

5/2 SMC TYPE SINGLE SOLENOID VALVE

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

5/2 SMC type single solenoid valve is a pilot operated spool valve with

spring return. It is designed to control the direction of compressed air

in pneumatic systems. Compact structure, high flow capacity, sensitive

response and long service life.

Specifications

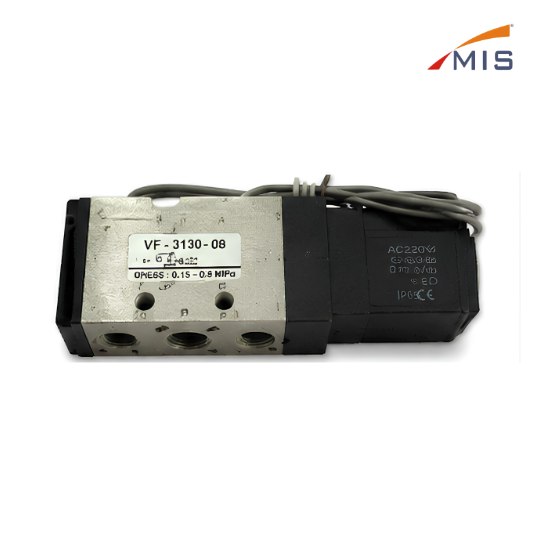

 Model Series
:
VF-3130 Series
 Valve Type
:
5/2 Way, Single Solenoid (Spring
 Actuation
:
Solenoid/Spring Return
 Port Size
:
1/4" BSPP
 Working Medium
:
Air (Filtered by 40μm filter element)
Working Pressure
:
0.15 0.8 MPa (21-114 psi)
Max. Pressure
:
1.0 MPa (145 psi)
Ambient Temperature
:
-5-+50 °C
Flow Capacity (Cv)
:
1.2 (Cv=0.67)
Response Time
:
20 ms
Coil Type
:
AC220V, 50/60Hz
Power Consumption
:
6.0VA
Insulation Class
:
Class B
Protection Class
:
IP65 (DIN 40050)
Body Material
:
Aluminum Alloy
Seal Material
:
NBR
nstallation
:
SMC Type (Sub-base Mounting)
Mounting Type
:
Through Holes
 Weight (Approx.)
:
0.22 kg
