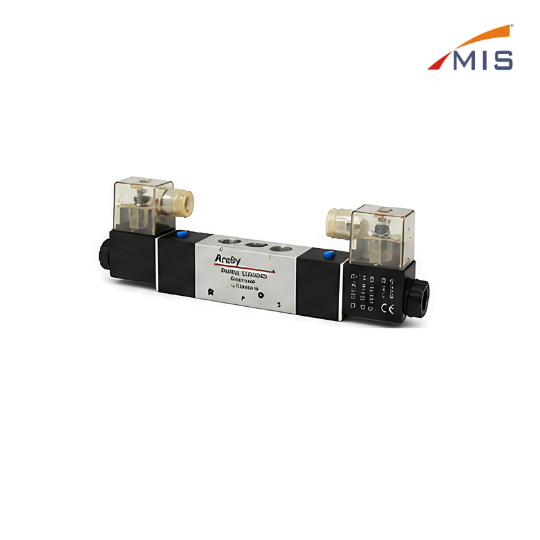

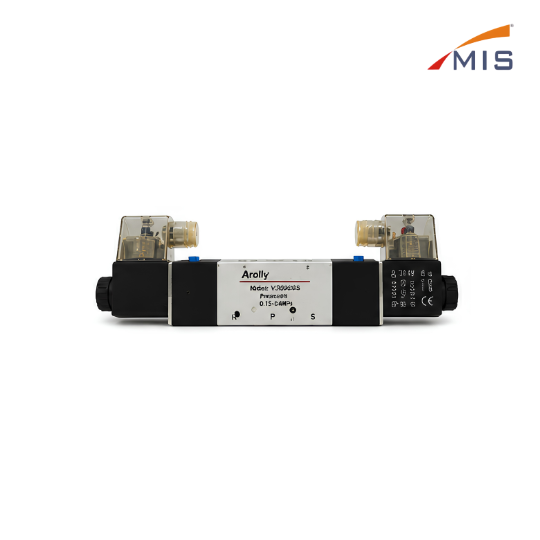

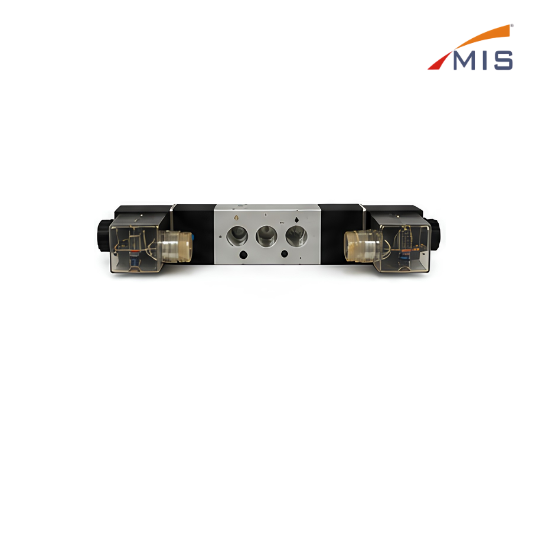

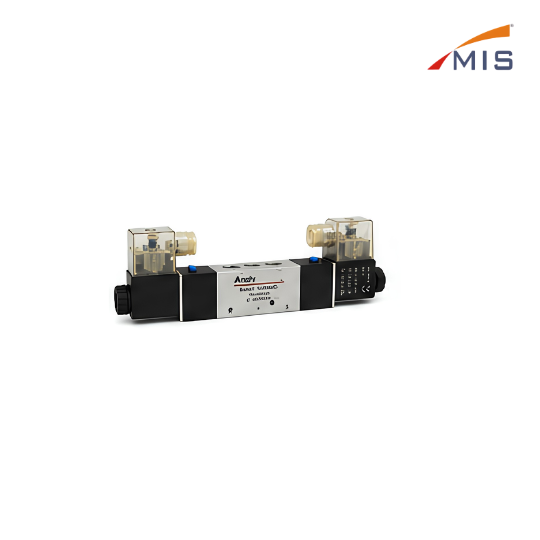

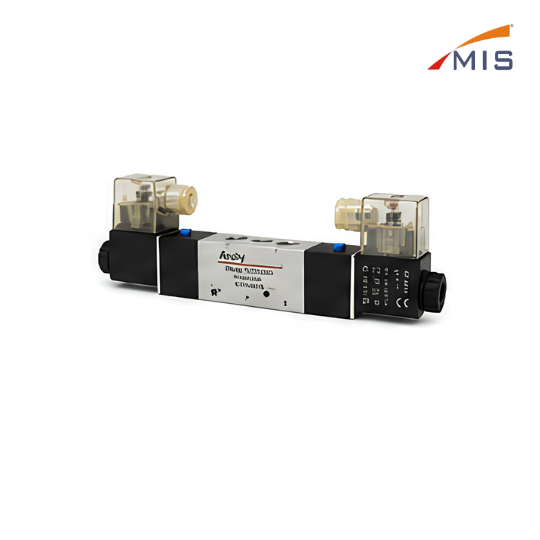

5/3 DOUBLE SOLENOID VALVE WITH AC220V COIL

5/3 DOUBLE SOLENOID VALVE WITH AC220V COIL

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

5/3 way double solenoid valve is a pilot operated spool valve with double solenoid

and spring centering. It features high flow capacity, low power consumption,

fast response and excellent stability. Widely used in pneumatic automation

systems to control the direction of air flow to double acting actuators.

Specifications

 Model Series
:
5V300 Series
Valve Type
:
5/3 Way, Double Solenoid
Actuation
:
Solenoid/Spring Center
Port Size
:
1/4", 3/8", 1/2" BSPP
Working Medium
:
Air (Filtered by 40μm filter element)
Working Pressure
:
0.15 0.8 MPa (21 ~ 114 psi)
Max. Pressure
:
1.0 MPa (145 psi)
Ambient Temperature
:
5 ~ +50 °C
Coil Type
:
AC220V, 50/60Hz
Power Consumption
:
3.5VA
Insulation Class
:
Class B
 Protection Class
:
IP65 (DIN 40050)
 Body Material
:
Aluminum Alloy
Seal Material
:
NBR
Response Time
:
≤ 15 ms
Installation
:
In-line or Manifold
Weight (Approx.)
:
Refer to table below
