A SERIES (SMC TYPE)

A SERIES (SMC TYPE)

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

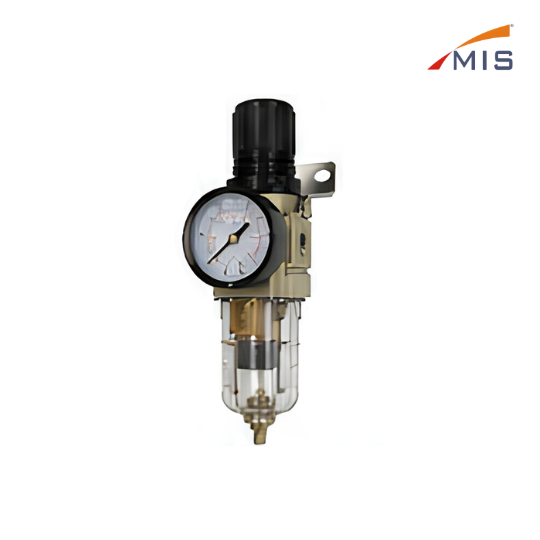

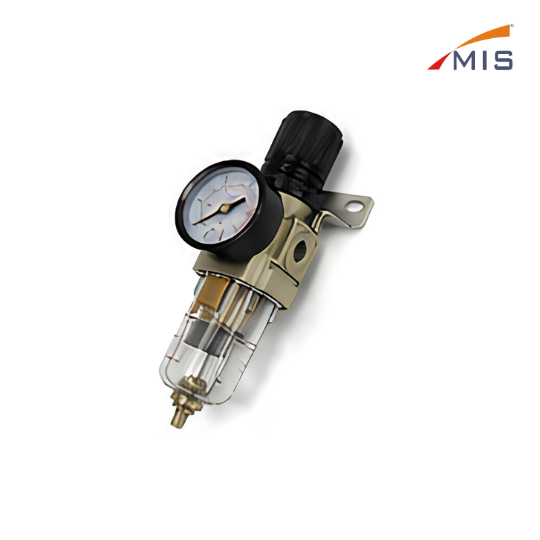

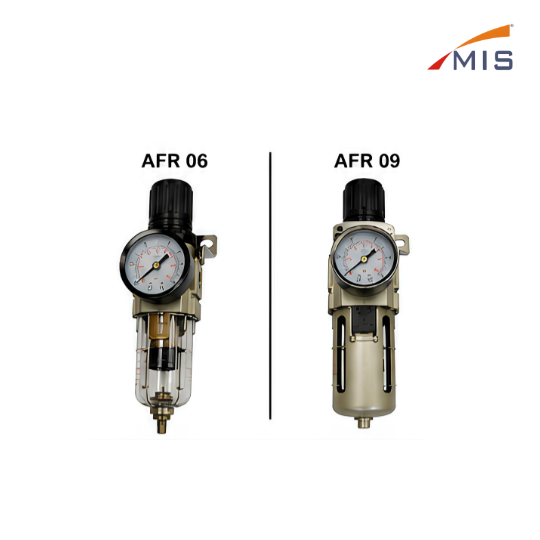

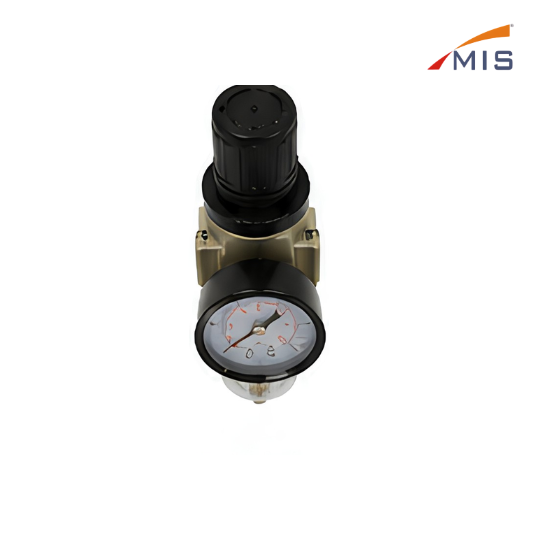

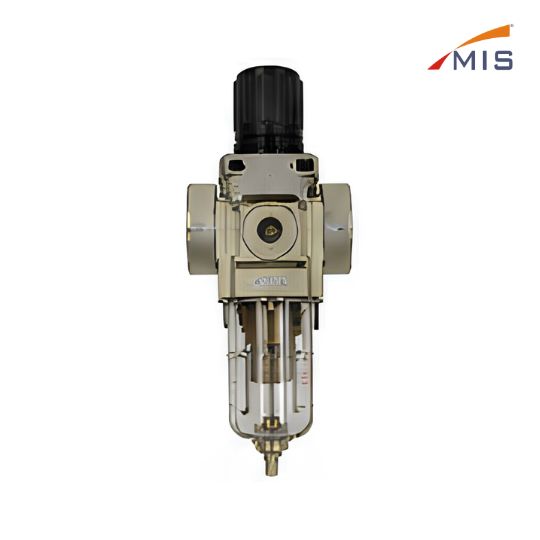

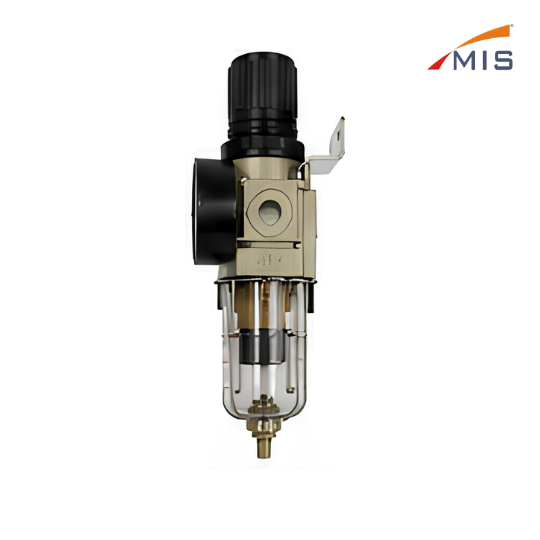

A Series (SMC Type) Filter Regulator units are designed for efficient removal of contaminants and precise pressure regulation in pneumatic systems. Equipped with metal guard, mounting bracket and pressure gauge for durability and easy monitoring.

Specifications

 Fluid
:
Compressed Air
 Max. Pressure
:
1.0 MPa (10.2 kg f/cm²)
 Proof Pressure
:
1.5 MPa (15.3 kg f/cm²)
 Ambient & Fluid Temp.
:
5-60°C
 Filter Accuracy
:
5um
 Recommended Oil
:
ISO VG32
 Bowl Material
:
Polycarbonate
 Bowl Guard
:
Metal
 Gauge Port Size
:
1/8"
 Pressure Gauge Range
:
0 1.0 MPa
 Regulating Range
:
0.05 0.85 MPa

Mounting Type


:
Bracket Mount
 Construction
:
Filter + Regulator (Modular)

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
