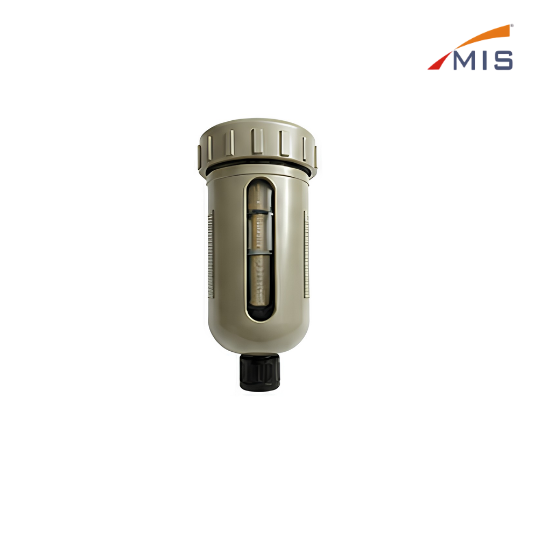

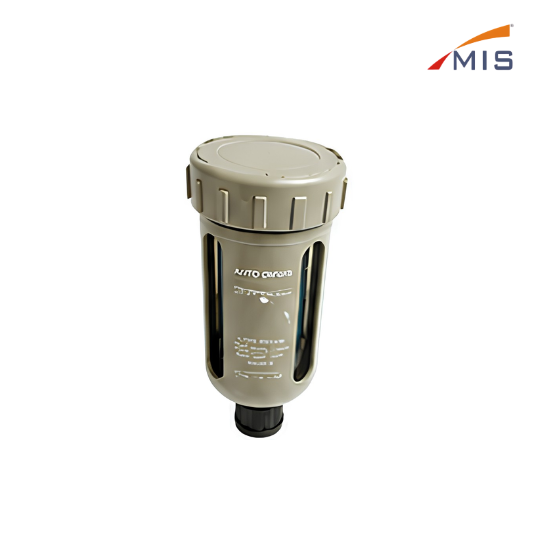

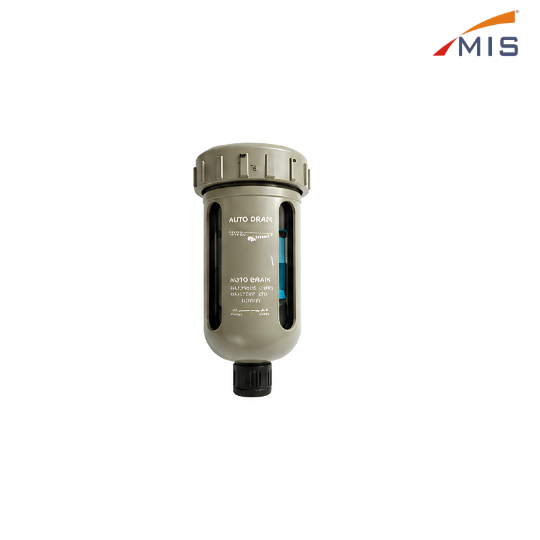

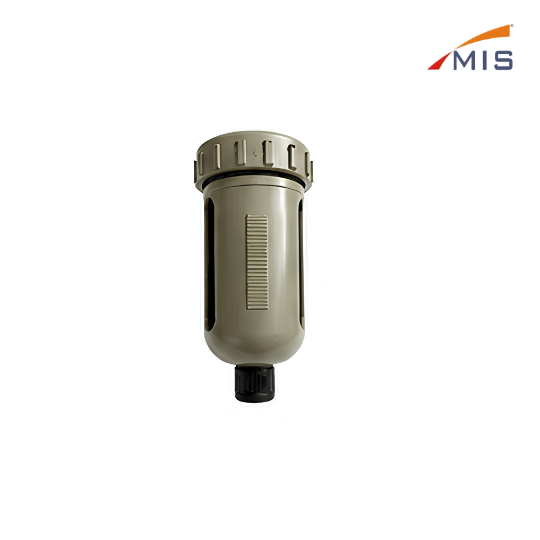

AD402 SERIES AUTO DRAIN WITH GUARD

AD402 SERIES AUTO DRAIN WITH GUARD

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

AD402 Series Auto Drain with Guard is designed to automatically remove condensed water from air filter, regulator and lubricator. It helps to improve efficiency and extend the life of

pneumatic equipment.

Specifications

 Model
:
AD402-04
 Port Size
:
1/2"
 Drain Type
:
Auto Drain (Float Type)
 Max. Operating Pressure
:
1.0 MPa (10.2 kgf/cm²)
 Min. Operating Pressure
:
0.1 MPa (1.0 kgf/cm²)
 Max. Operating Temperature:
:
60°C
 Fluid
:
Compressed Air
 Body Material
:
Aluminum Die-cast
 Bowl Material
:
Polycarbonate
 Guard Material
:
Aluminum
 Drain Connection
:
6 One-touch Fitting
 Weight
:
210 g

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
