AR SERIES (SMC TYPE)

AR SERIES (SMC TYPE)

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

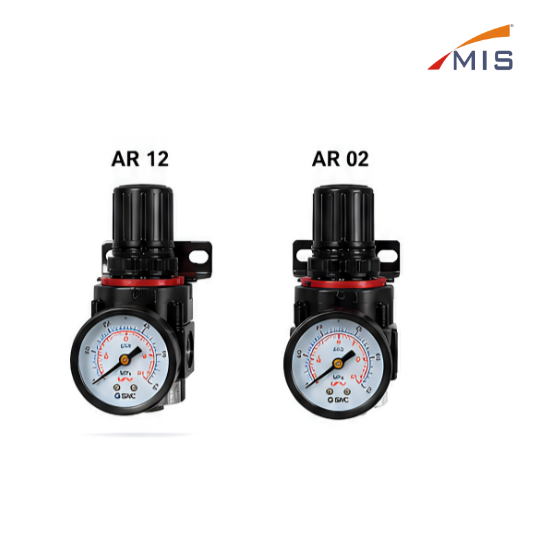

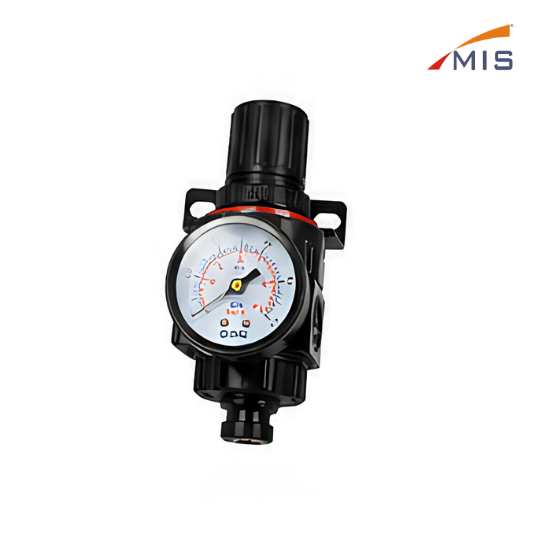

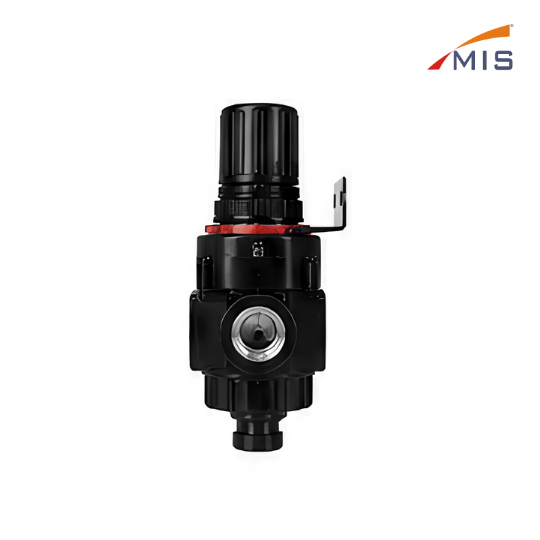

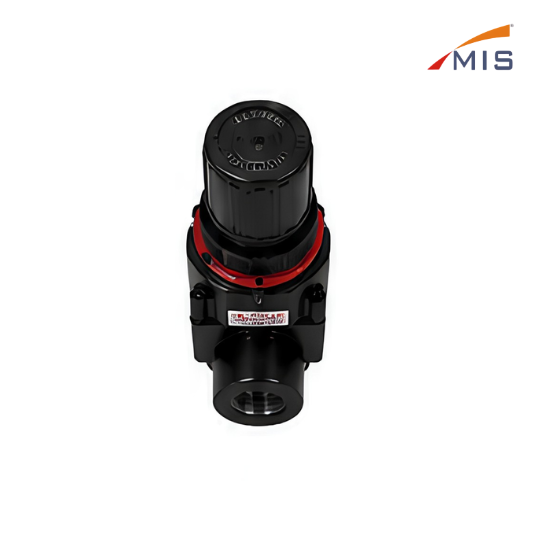

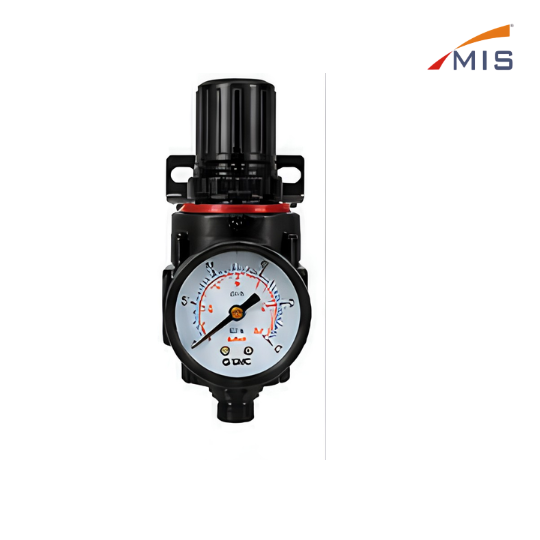

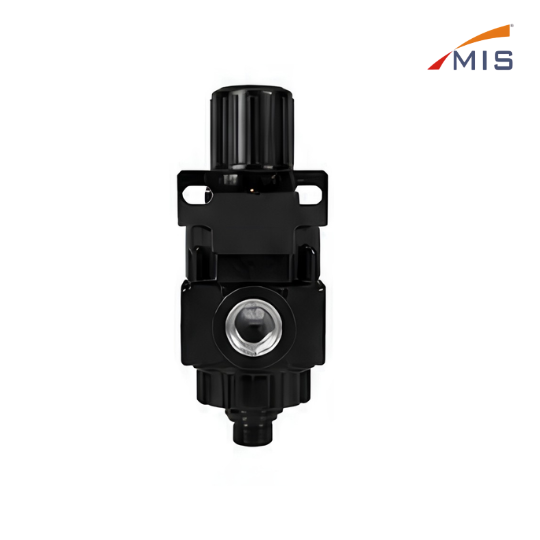

AR SERIES (SMC TYPE) AIR REGULATOR WITH MOUNTING BRACKET & PRESSURE GAUGE

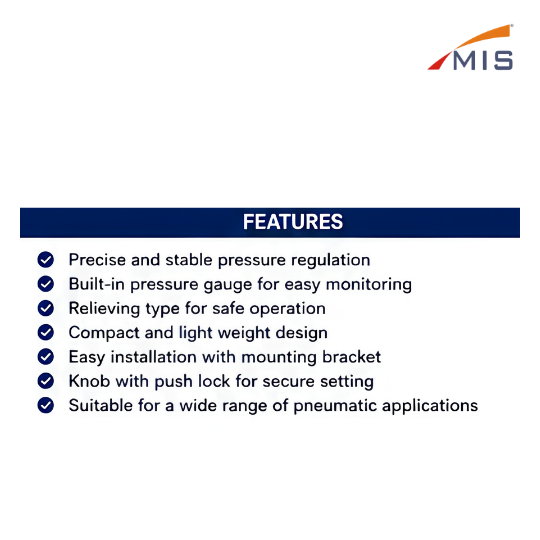

AR Series regulators are designed to provide precise and stable pressure regulation for pneumatic systems. Equipped with a pressure gauge and mounting bracket for easy installation and monitoring.

Specifications

 Fluid
:
Compressed Air
 Max. Pressure
:
1.0 MPa (10.2 kgf/cm²)
 Proof Pressure
:
1.5 MPa (15.3 kgf/cm²)
 Regulating Pressure Range:
:
0.05 0.85 MPa (0.5-8.5 kgf/cm²)
 Ambient & Fluid Temp.
:
5-60°C
 Port Size
:
See Table
 Gauge Port Size
:
1/8"
 Gauge Type
:
Round Pressure Gauge
 Pressure Gauge Range
:
1.0 MPa
 Construction
:
Relieving Type
 Mounting Type
:
Bracket Mount / Panel Mount
 Body Material
:
Aluminum Die-cast
Adjustment
:
 Knob with Lock (Push Lock Type)
Weight
:
See Table

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
