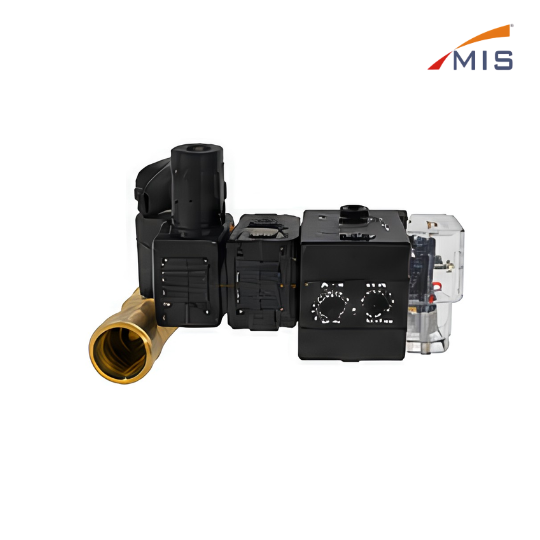

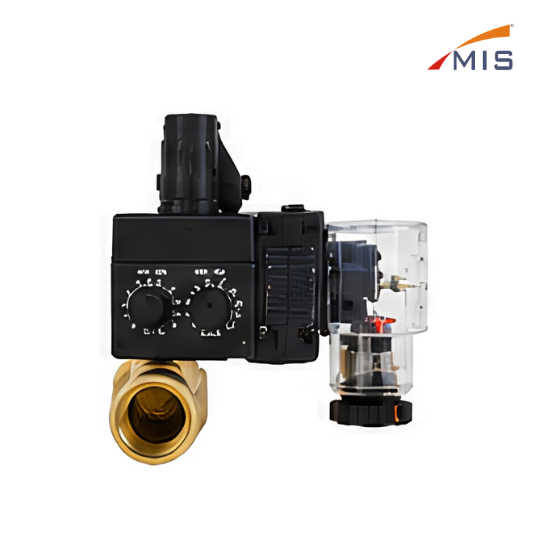

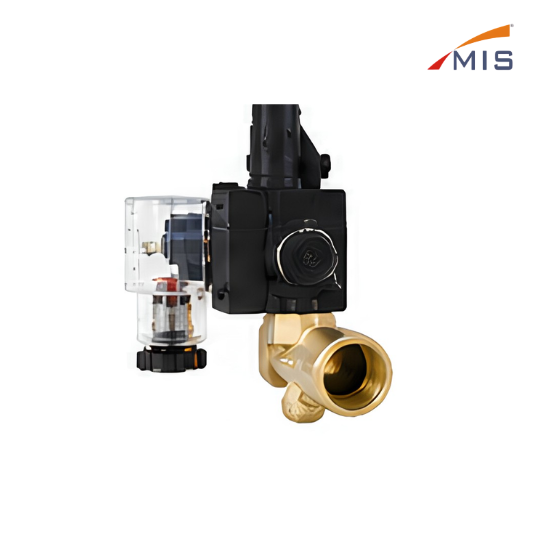

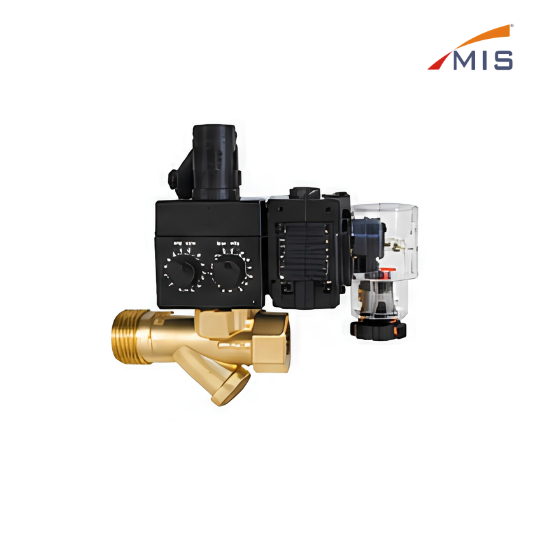

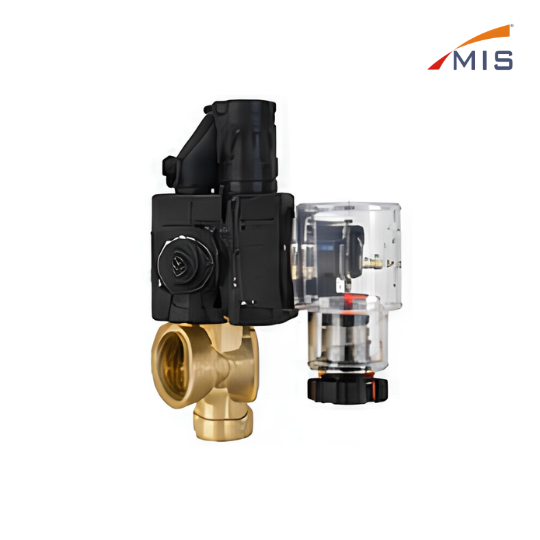

Auto drain valve with timer is designed to automatically drain the condensate from air compressor, air receiver, dryer, filters and other pneumatic equipments without air loss.
It combines a high quality brass drain valve, digital timer and stainer filter to ensure reliable performance, longer service life and prevent dirt from entering the valve.
Specifications
Valve Type
:
2/2 Way, Pilot Operated
Body Material
:
Brass
Actuation
:
Direct Acting (Solenoid)
Working Medium
:
Compressed Air
Working Pressure
:
0 16 bar (0 232 psi)
Max. Pressure
:
16 bar (232 psi)
Operating Temperature
:
1-60 °C
Orifice Size
:
2.5 mm
Port Size
:
1/2" BSPP (Male)
Timer Type
:
Digital Timer (ON/OFF Adjustable)
ON Time (Discharge Time)
:
0.5-10 Sec
OFF Time (Interval Time)
:
0.5-45 Min
Voltage
:
AC 220V 50/60Hz, AC 110V 50/60Hz, DC 24V (Optional)
