CI FLANGE (CIRCLE TYPE)

CI FLANGE (CIRCLE TYPE)

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

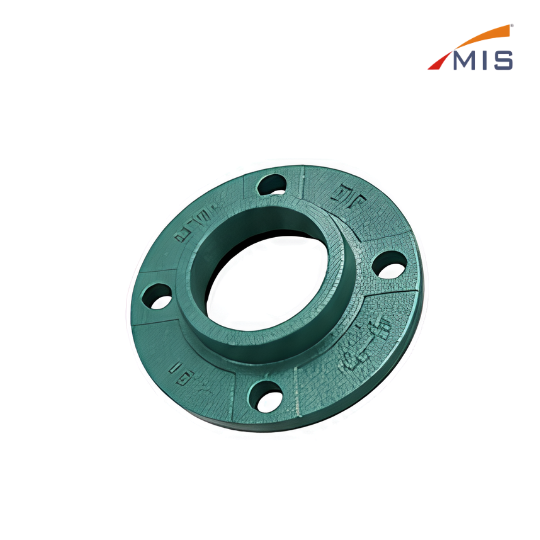

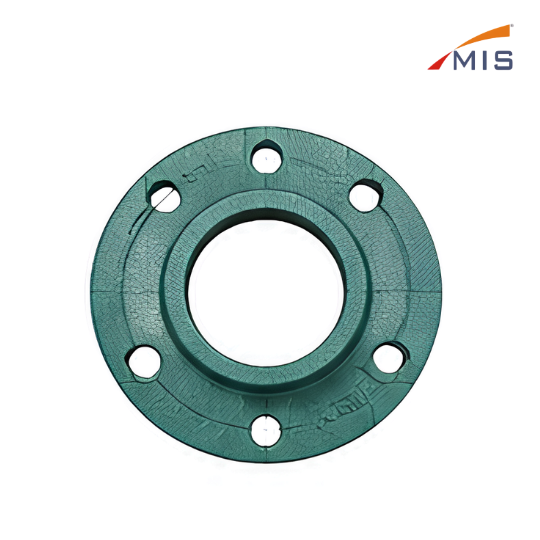

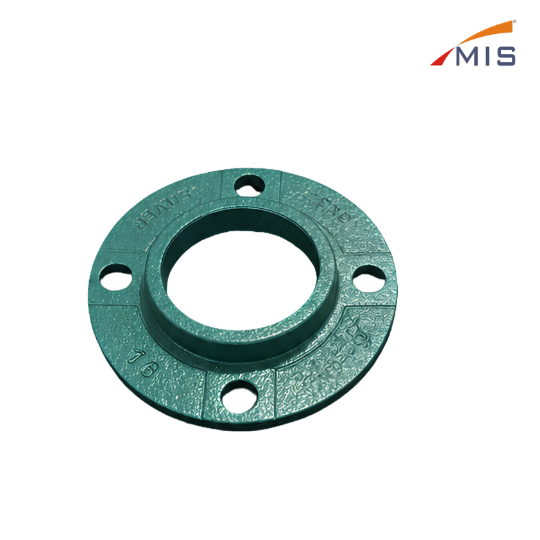

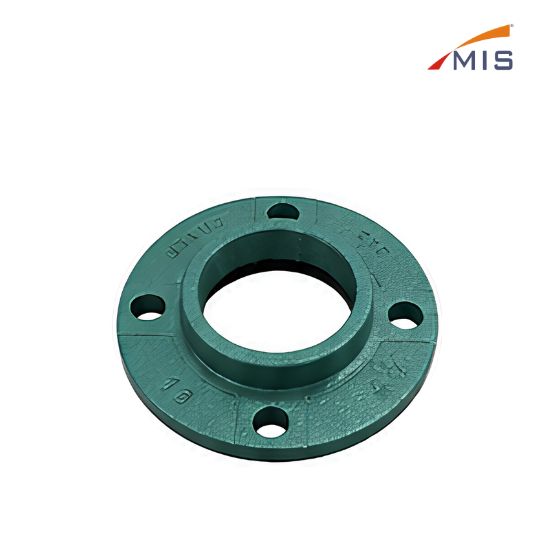

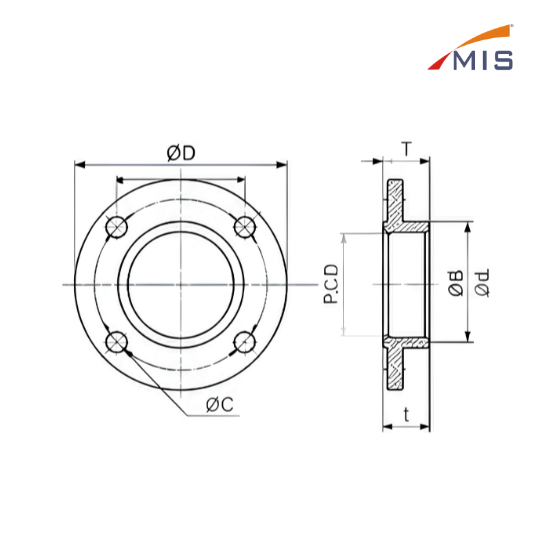

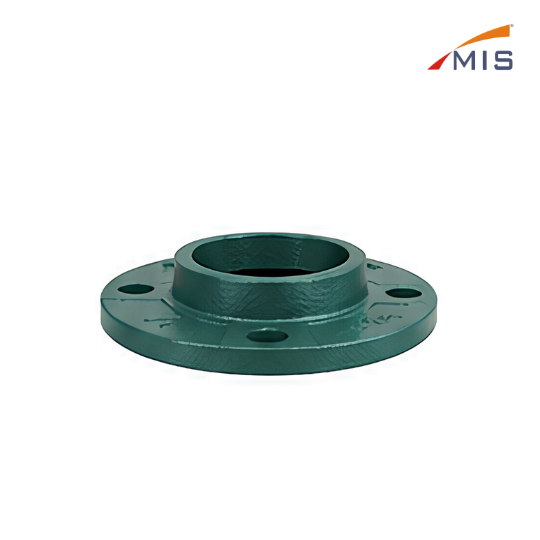

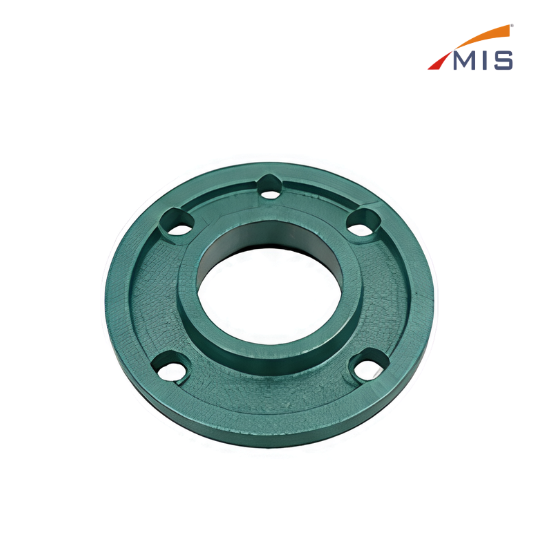

A CI Flange (Circle Type) is a circular flange with a raised hub in the center and bolt holes around the perimeter. It is widely used to connect pipes, valves, pumps, and other equipment in piping systems, ensuring a leak-proof and strong joint.

Specifications

 Material
:
 Grey Cast Iron (CI)
 Standard
:
IS 2102 BS EN 1092-2/ ANSI B16.1 (Drilling)
 Size Range
:
1 Inch to 6 Inch
 Temperature Range
:

Up to 200°C

Pressure Rating
:

Up to 16 kg/cm² (PN 16)

Temperature Rating
:
 Up to 200°C
Type
:
 Circle Type (Raised Face)
Usage
:
 Water, Oil, Air, Steam (Low to Medium Pressure)

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
