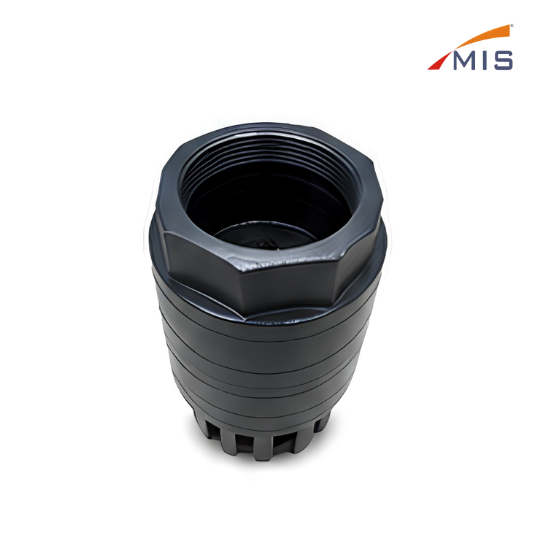

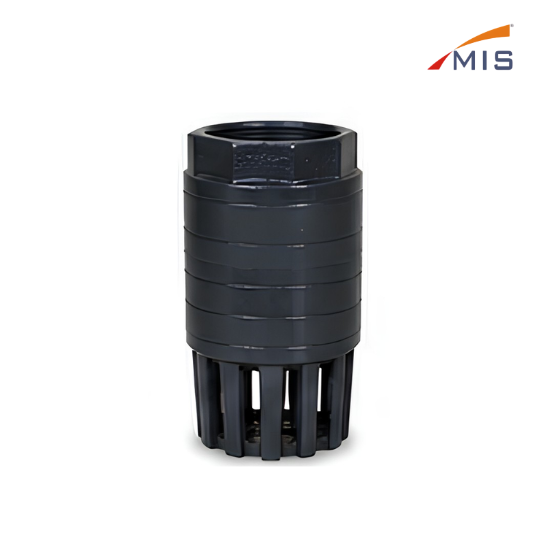

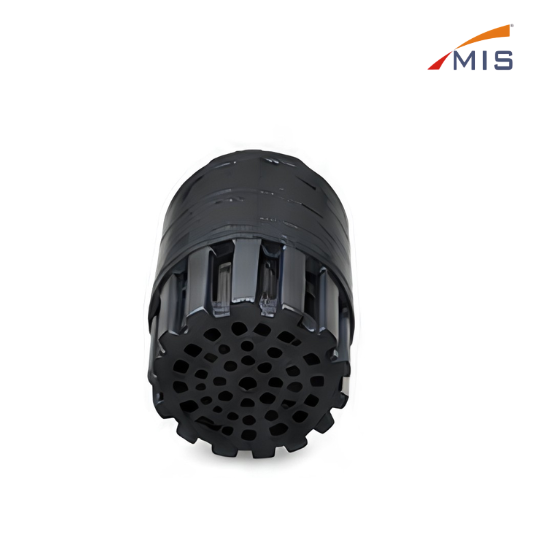

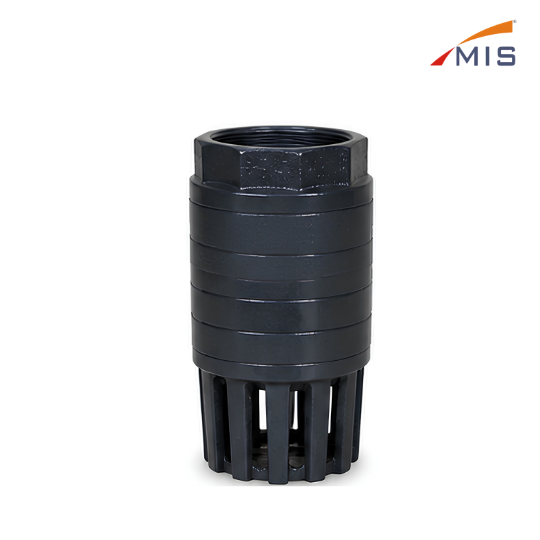

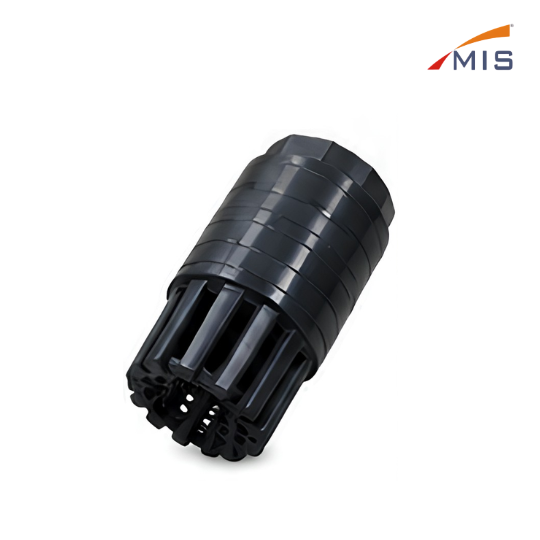

he CI Foot Valve is a durable and reliable suction valve designed for water pumping systems. Manufactured from high-quality Cast Iron (CI), it helps prevent backflow and maintains pump priming for smooth and efficient operation. The built-in strainer protects the pump by stopping debris and large particles from entering the pipeline.
Suitable for water pumps, borewell systems, irrigation lines, industrial plants, and water supply applications, this foot valve offers excellent corrosion resistance, leak-proof performance, and long service life. Available in multiple sizes with BSP/NPT female connection options, it is ideal for heavy-duty and continuous pumping operations.
Specifications
Body Material
:
Cast Iron (CI)
Strainer
:
Cast Iron (CI)
Seat
:
Rubber/NBR
Clap (Disc)
:
Rubber / NBR
Connection
:
BSP/NPT (Female)
Working Pressure
:
10 kg/cm² (150 PSI)
Test Pressure
:
15 kg/cm² (215 PSI)
Temperature Range
:
0°C to 80°C
Application
:
Used at the end of suction pipes in pumps to prevent
