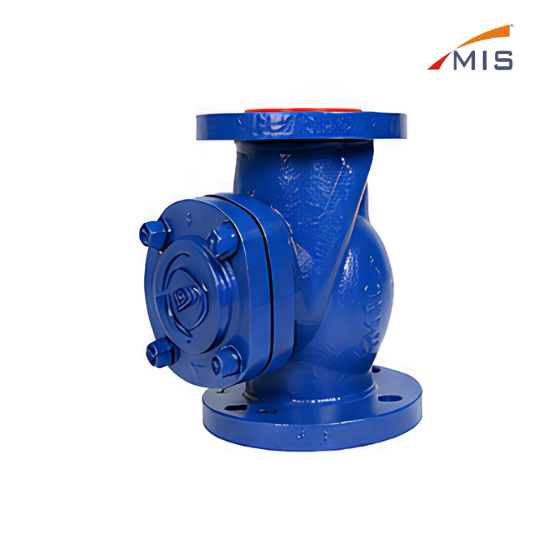

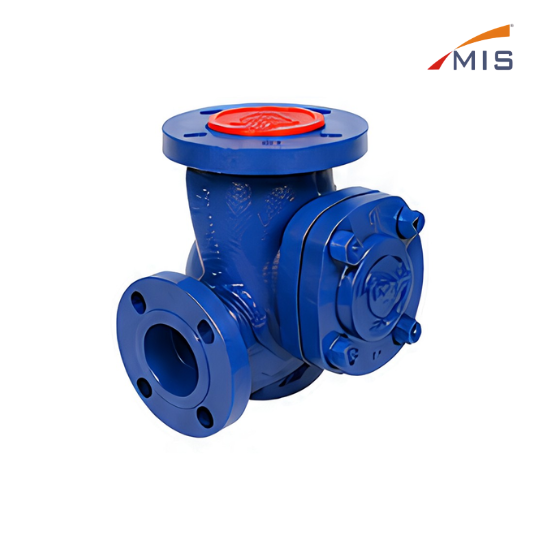

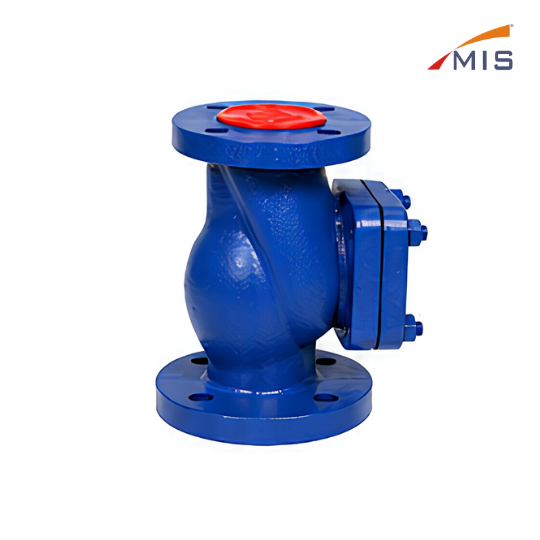

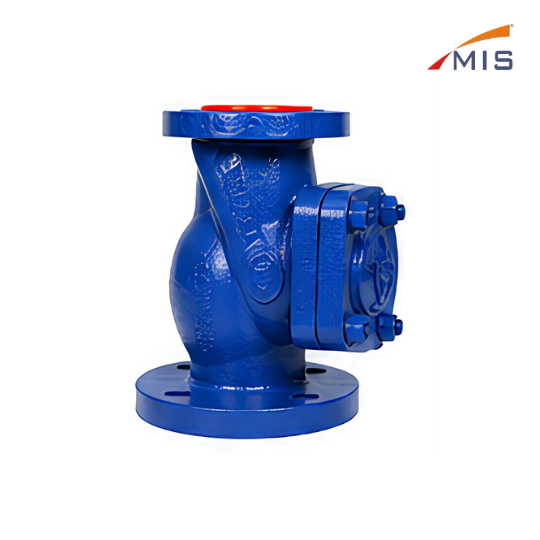

CI HORIZONTAL NRV F/E IBR

CI HORIZONTAL NRV F/E IBR

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

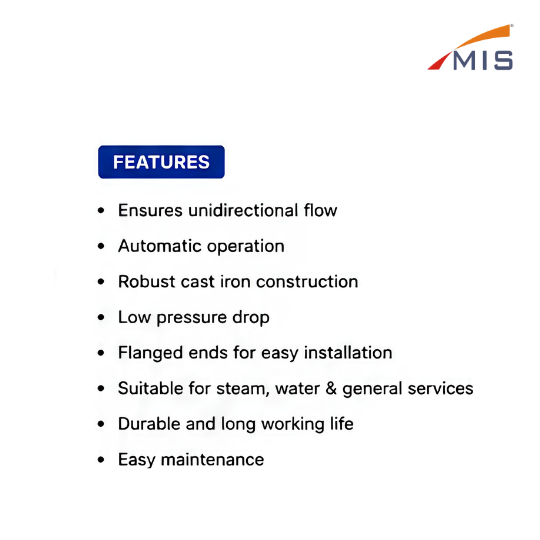

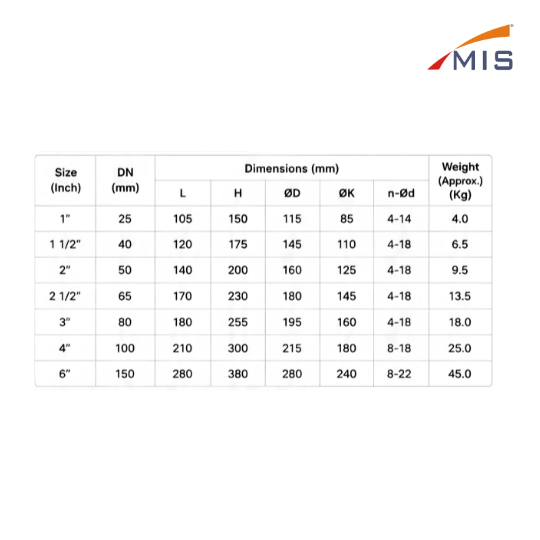

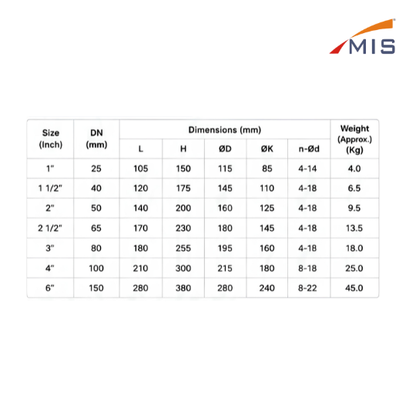

Cl Horizontal NRV F/E IBR (Non Return Valve) is a swing type check valve made from high quality cast iron. It allows flow in one direction only and prevents reverse flow automatically. Suitable for steam, water, air and general industrial applications. Flanged end connection for easy installation and maintenance. IBR approved for safe and reliable performance. Available in sizes: 1", 1 1/2", 2", 2 1/2", 3", 4" & 6".

Specifications

Body Material
:
Cast Iron (CI)
Disc Material
:
Cast Iron (CI)
Seat
:
Renewable (Metal/CI)
End Connection
:
Flanged Ends
Working Pressure (Max.)
:
10 kg/cm² (IBR)
Hydrostatic Test Pressure
:
15 kg/cm²
Working Temperature
:
Up to 220°C
Application Fluid
:
Steam, Water, Air
 Standard
:
IS 5312 / IBR Approved

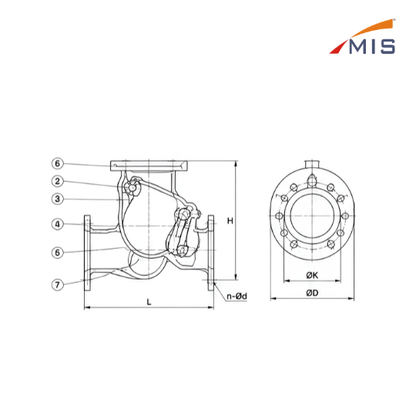

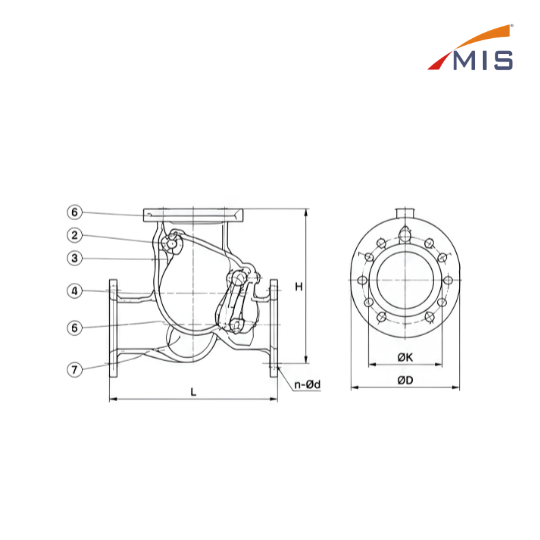

Face to Face
:
As per IS 5312 Series 1

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
