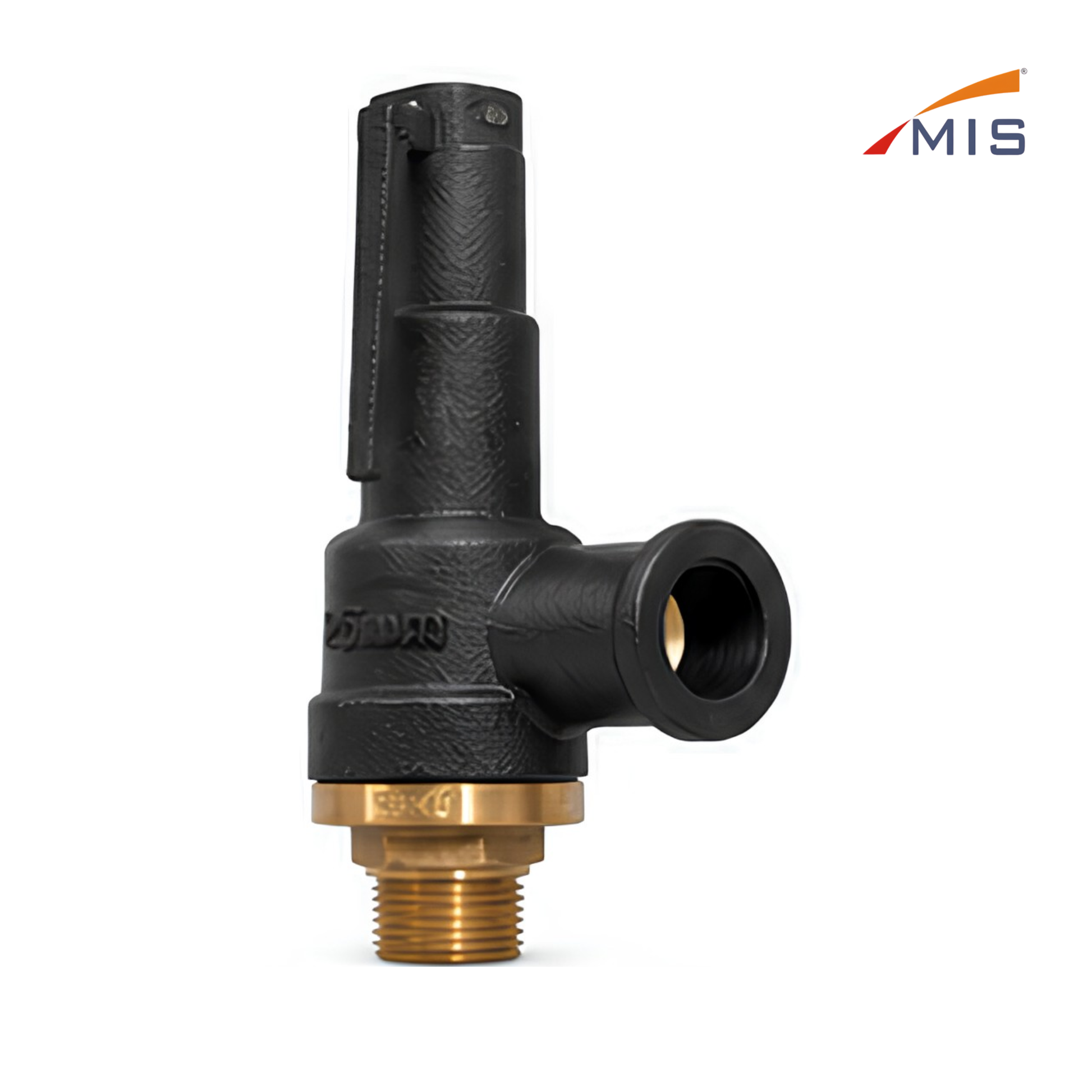

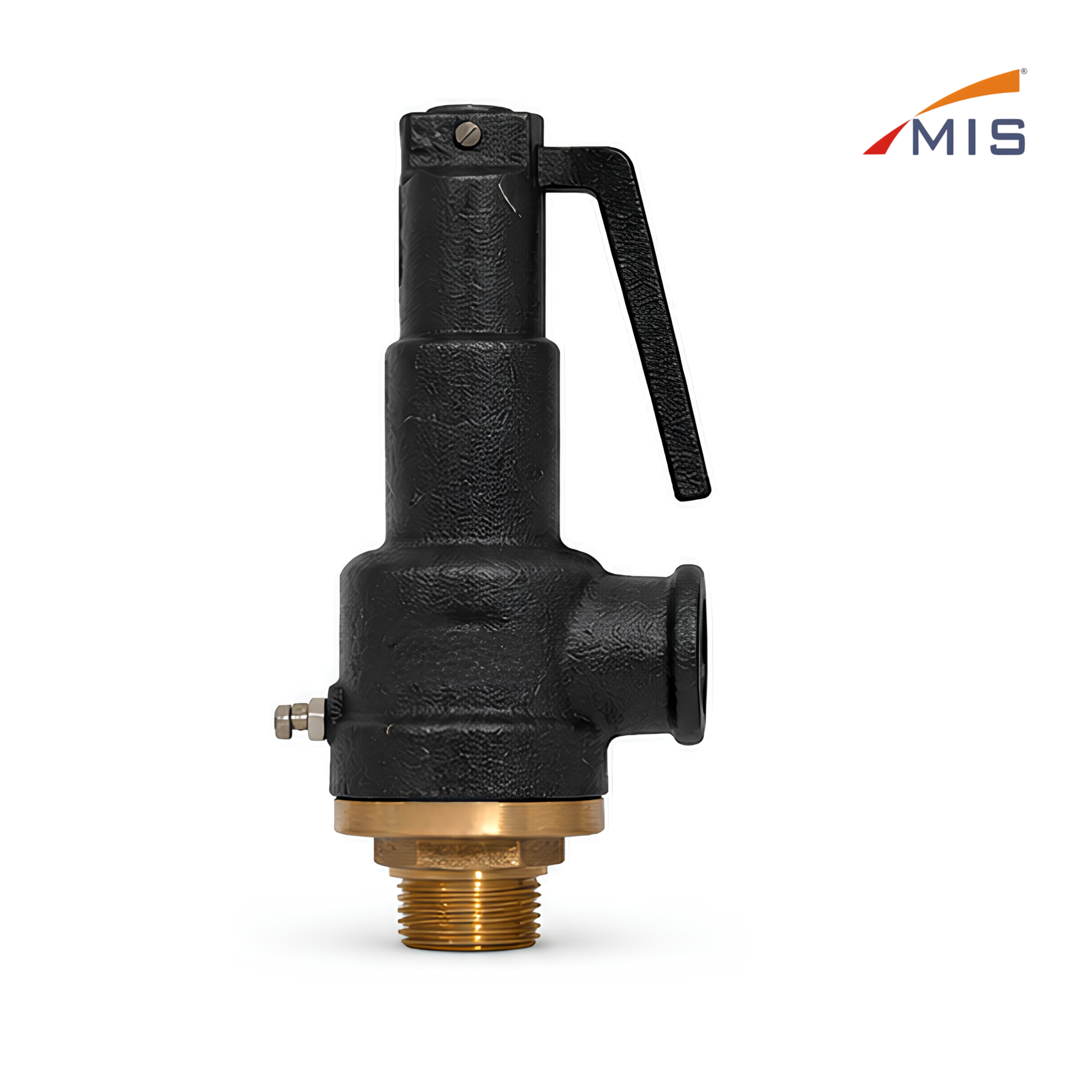

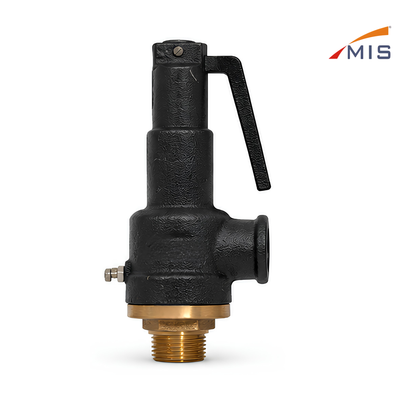

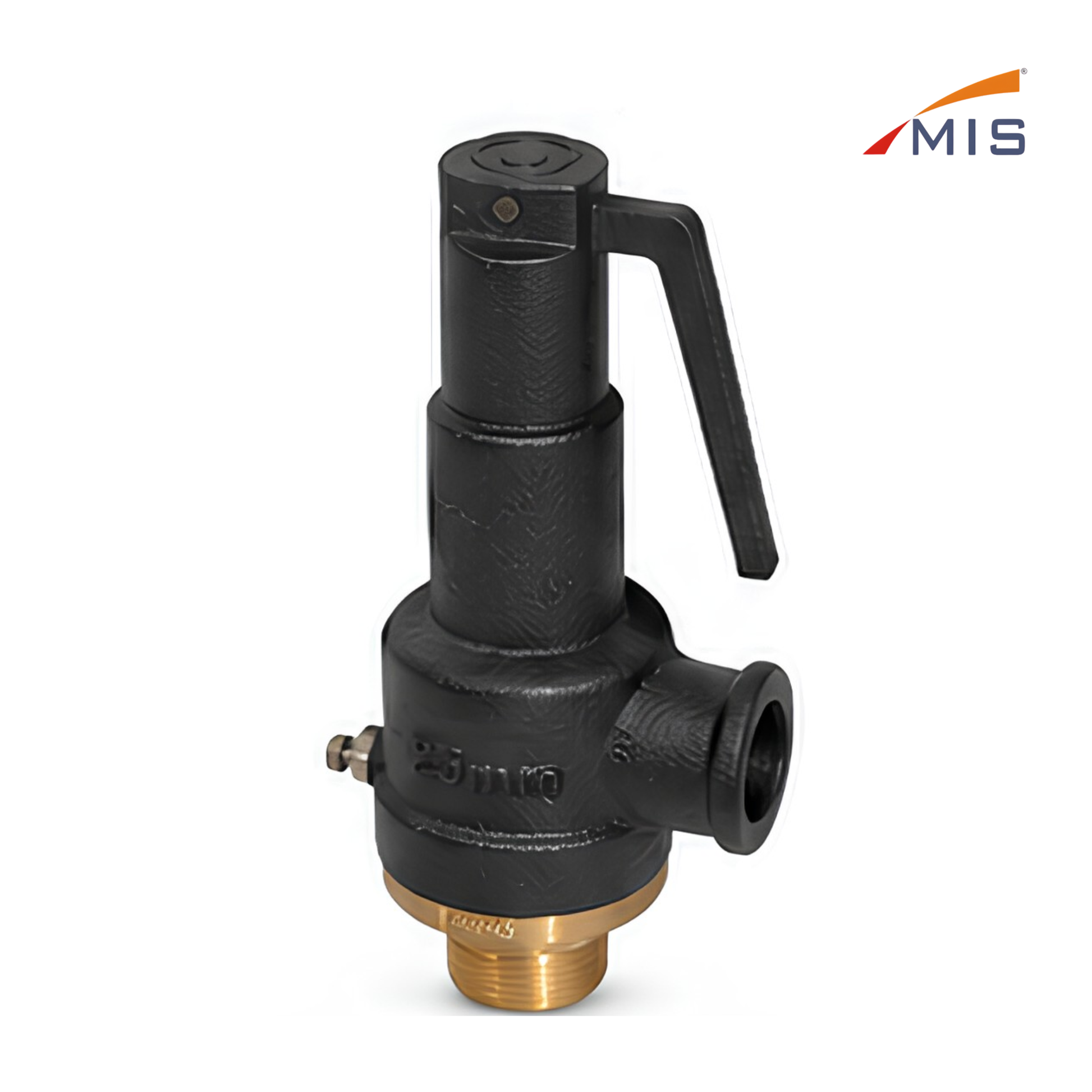

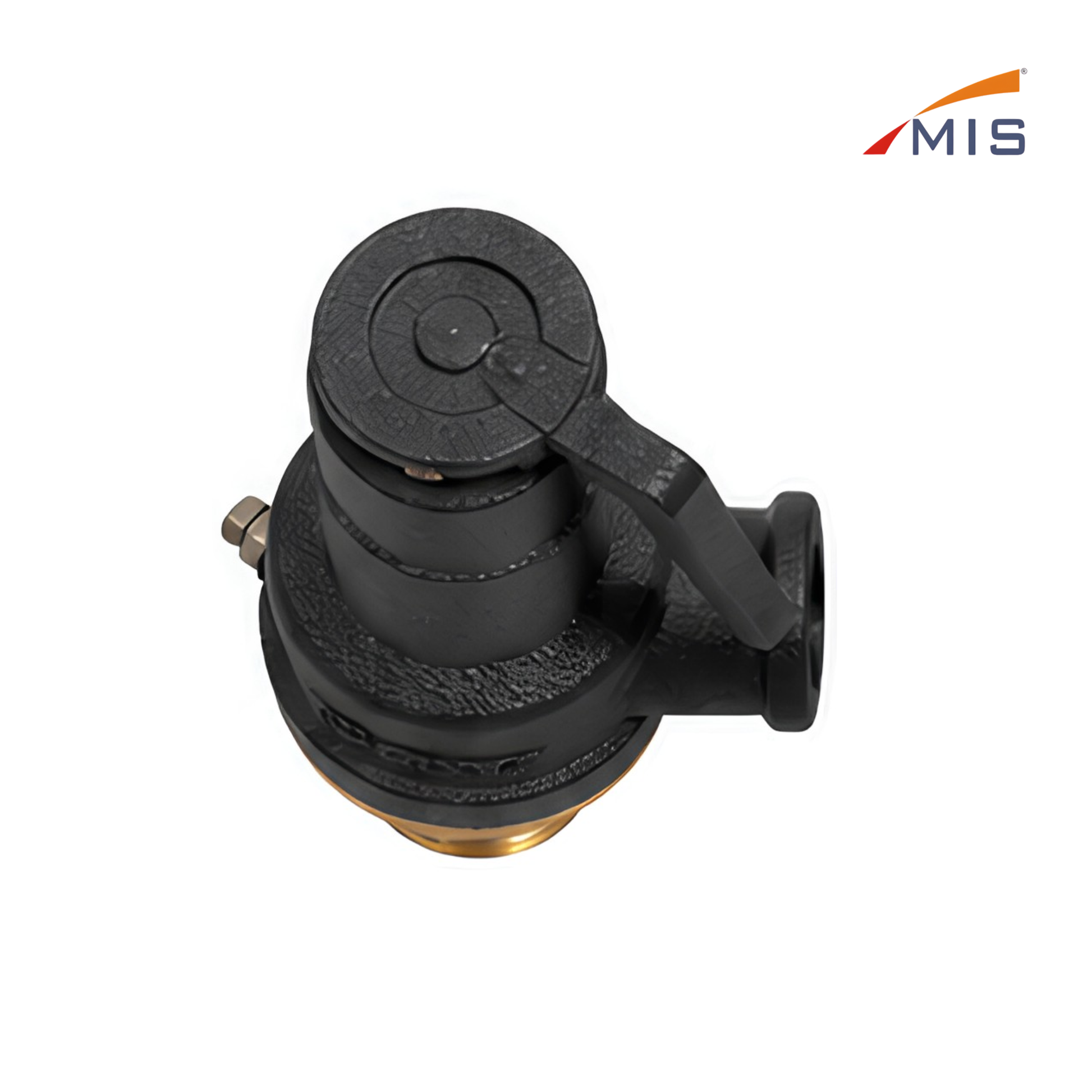

CI SAFETY VALVE (IBR)

CI SAFETY VALVE (IBR)

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

CI Safety Valve (IBR) is a spring loaded pressure relief valve designed to protect boilers, pressure vessels and pipelines from overpressure. It automatically opens at the set pressure to discharge excess fluid or steam and prevents system damage.

Manufactured as per IBR standards, it ensures reliable performance, durability and long service life in demanding industrial applications.

Specifications

Type

:
Spring Loaded
Body Material
:
Cast Iron (CI)
Size Range
:
15mm to 50mm (1/2" to 2")
End Connection
:
Screwed BSP/NPT
Inlet
:
Bottom Inlet
Outlet
:

Side Outlet

Set Pressure Range
:
2.5 to 14 kg/cm² (g)
Temperature Rating
:
 Up to 225°C
Application
:
Steam, Air, Water
Standard
:
IBR Approved
Category
:
Safety Valve
