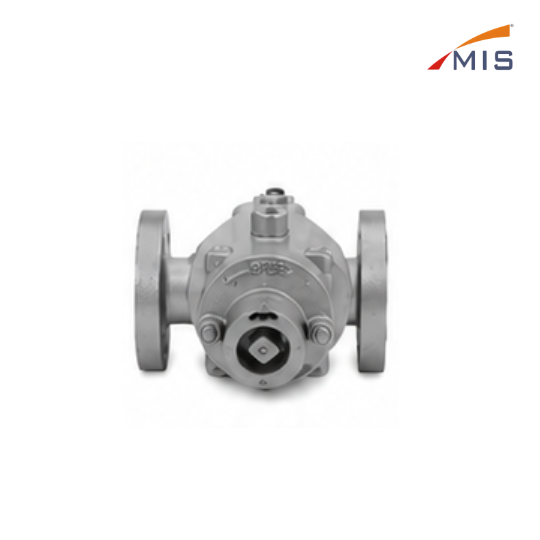

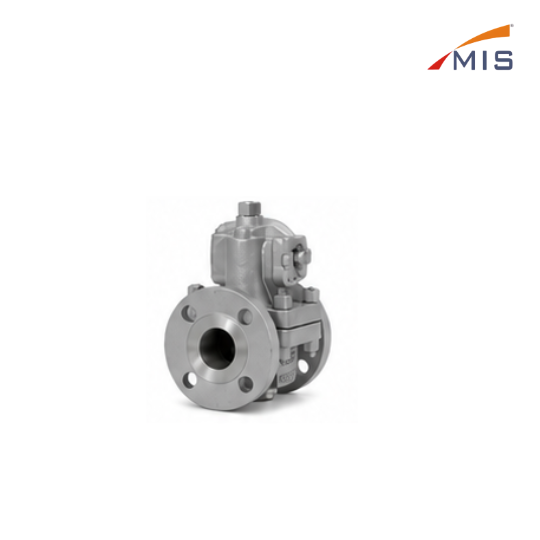

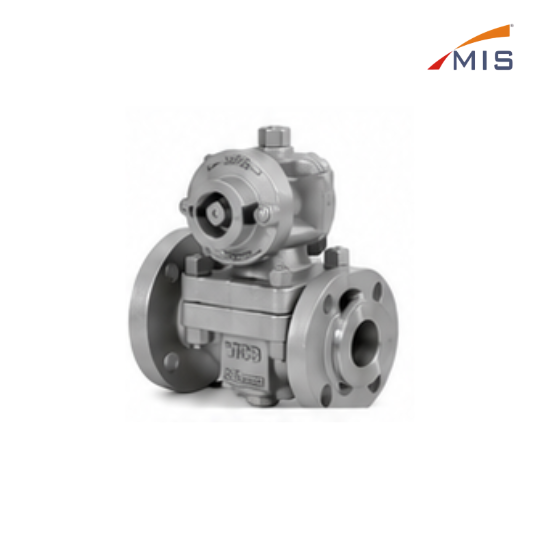

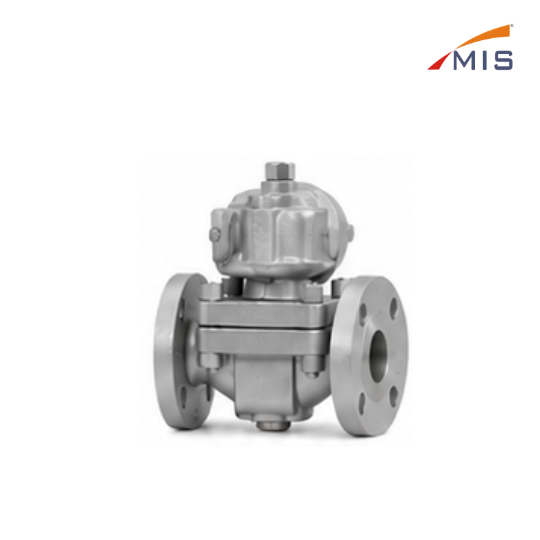

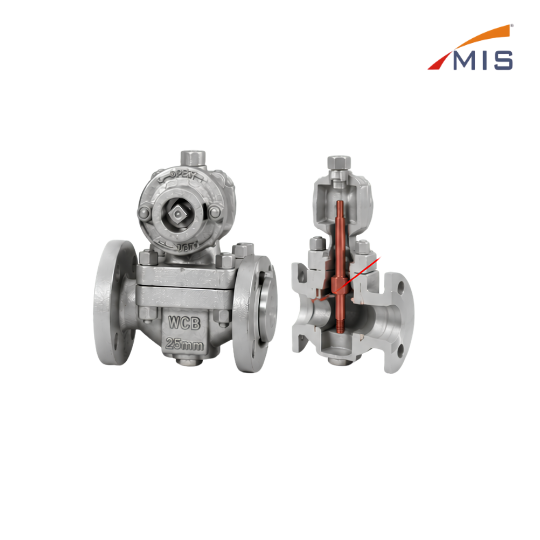

CS BLOW DOWN VALVE IBR F/E

CS BLOW DOWN VALVE IBR F/E

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

CS Blow Down Valve IBR F/E is a high quality cast steel valve used for blow down purpose in boilers and pressure vessels. It helps in removing sludge, scale and impurities to maintain efficiency, safety and longer life of the system. Designed as per IBR standards for reliable performance in high pressure and temperature applications.

Specifications

 Body Material
:
Cast Steel (WCB)
 Design Standard
:
IS 778 / BS 5352
 Flange Standard
:
IS 1538 / BS 10 Table D/E
 Pressure Rating
:
PN16
 End Connection
:
Flanged End (F/E)
 Working Temperature
:
Up to 425°C
 Working Medium
:
Steam, Water

Operation


:
Manual (Spanner Operated)
 Rod (Inside)
:
Stainless Steel / CS

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
