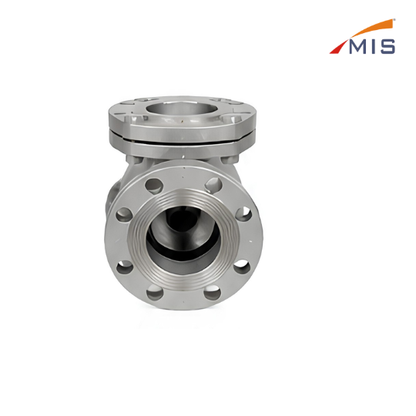

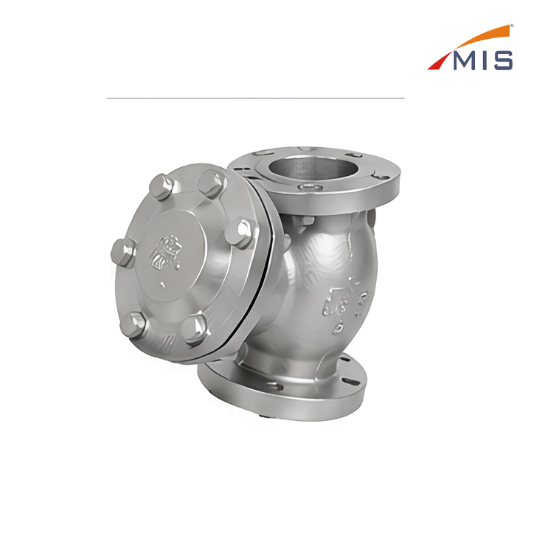

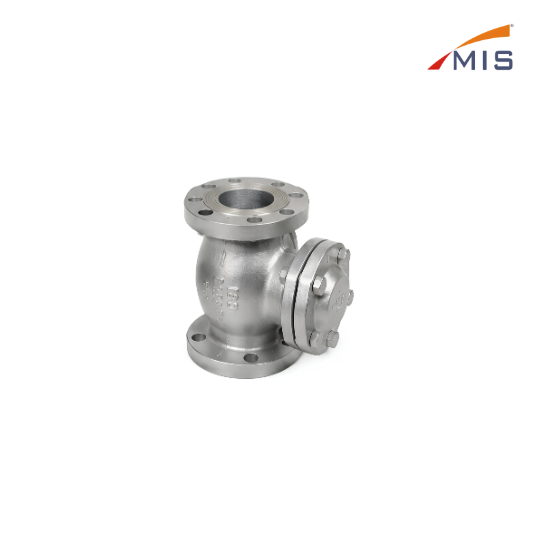

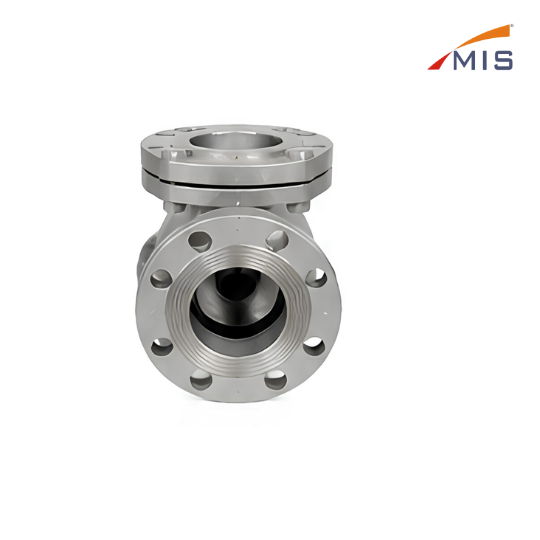

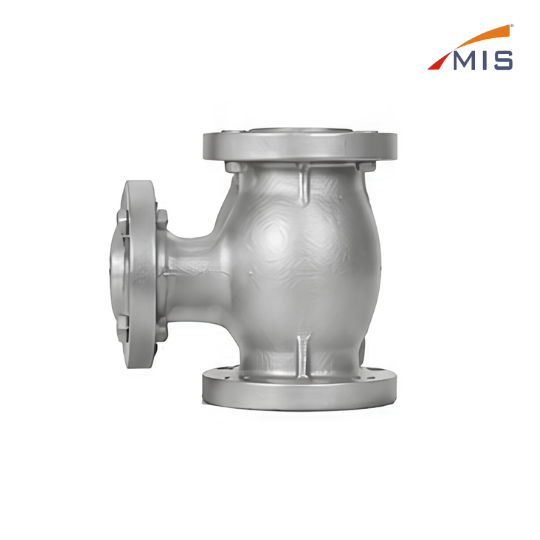

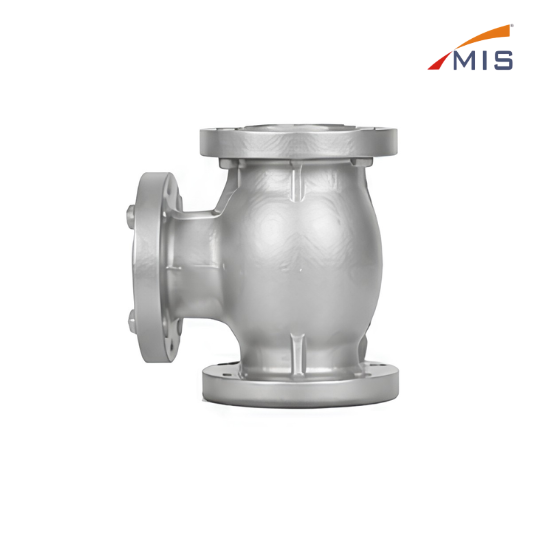

CS HORIZONTAL F/E (NON IBR)

CS HORIZONTAL F/E (NON IBR)

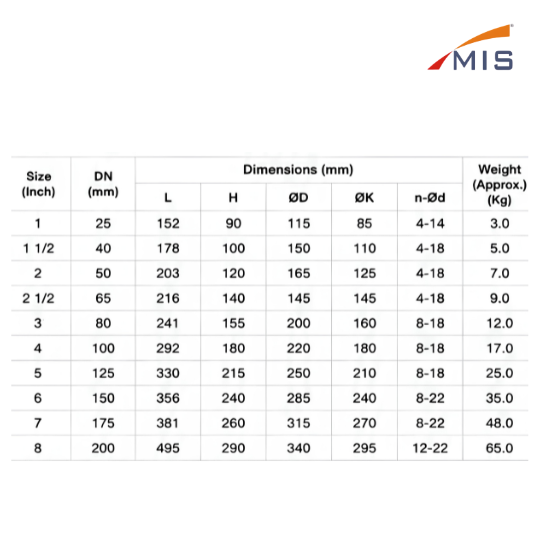

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

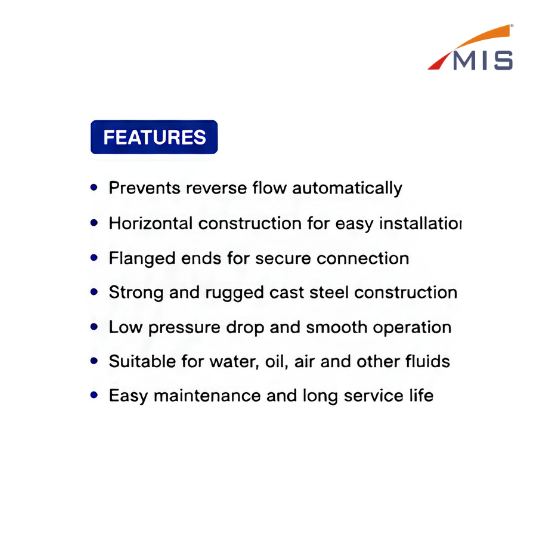

CS Horizontal F/E (Non IBR) is a non-return valve designed to prevent reverse flow in piping systems. It features a horizontal design with flanged ends for easy installation and reliable performance. Made from high quality cast steel, it is suitable for water, oil, air, steam and other general service applications.

Specifications

 Parameter
:
Specification
Body Material
:
Cast Steel (WCB)
Disc Material
:
Cast Steel (WCB)
 Seat
:
SS/CS
 End Connection
:
Flanged Ends
 Design
:
Lift/Swing Type
Pressure Rating
:
Non IBR (General Service)
Working Temperature
:
Up to 220°C
Application Fluid
:
Water, Oil, Air, Steam

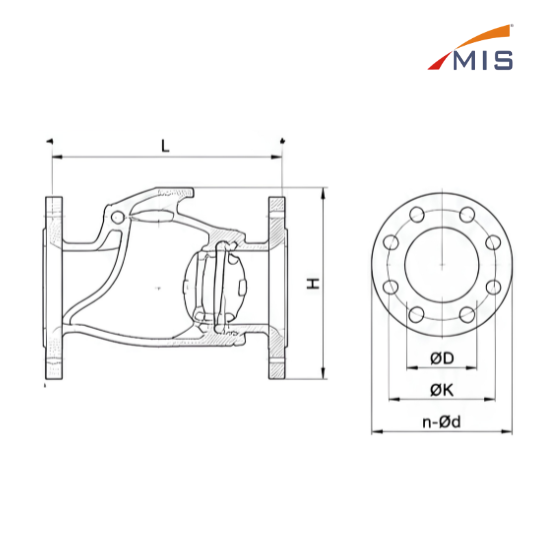

Face to Face
:
As per ANSI B16.10
Flange Standard
:
As per ANSI B16.5

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
