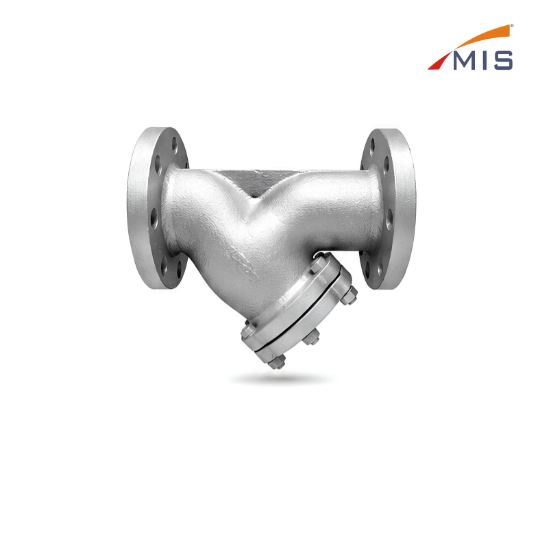

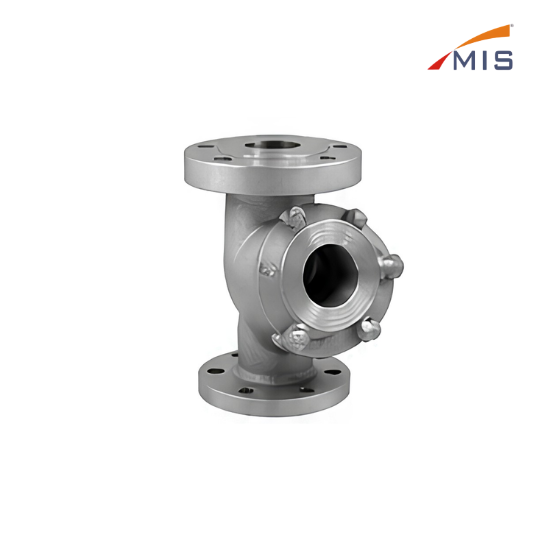

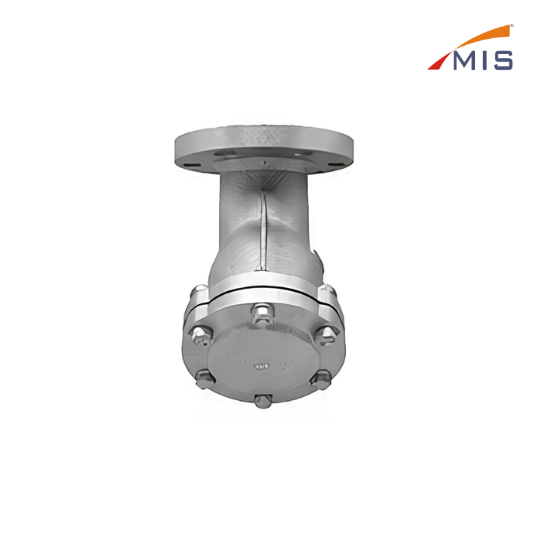

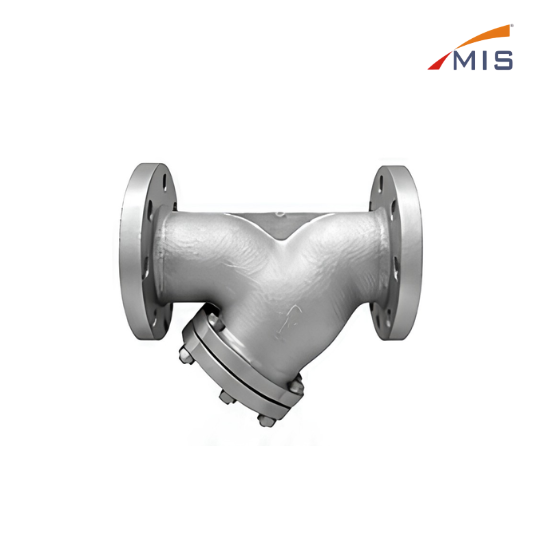

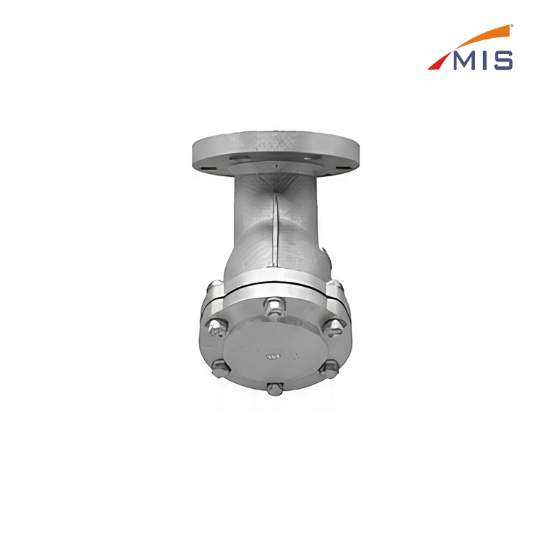

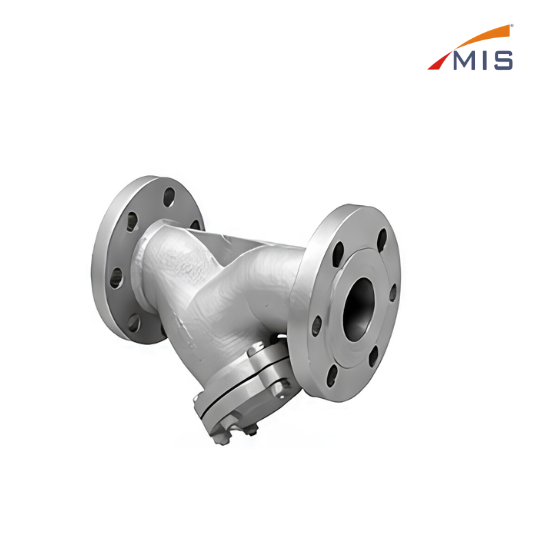

CS Y TYPE STRAINER F/E (NON IBR)

CS Y TYPE STRAINER F/E (NON IBR)

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

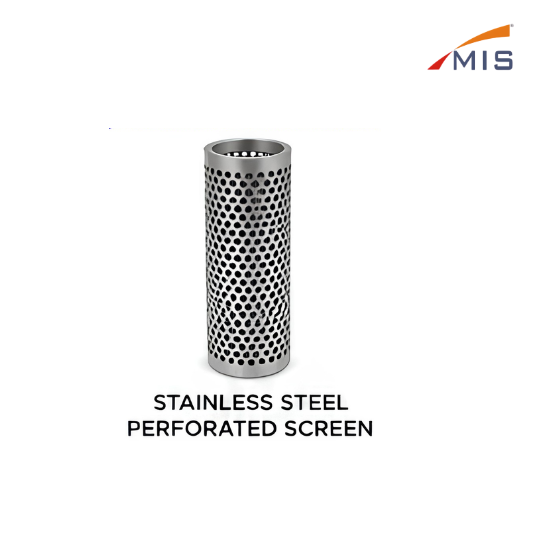

CS Y Type Strainer (Non IBR) is a cost effective pipeline strainer made from cast steel, designed in 'Y' pattern with flanged ends. It is used to remove unwanted particles from the flowing medium and protect downstream equipment. The strainer has a stainless steel perforated screen which is easy to clean and replace.

Specifications

 Body Material
:
 Cast Steel (CS)
 Design Standard
:
BS 1873
 Flange Standard
:
ANSI B16.5 (Class 150)
 Pressure Rating
:
PN16
 End Connection
:
Flanged End (F/F)
Screen (Filter)
:
Stainless Steel Perforated
Working Temperature :
:
Up to 425°C
Working Medium
:
Water, Oil, Steam, Gas
 Application Type
:
Liquid, Steam & Gas
 IBR Status
:
Not IBR
