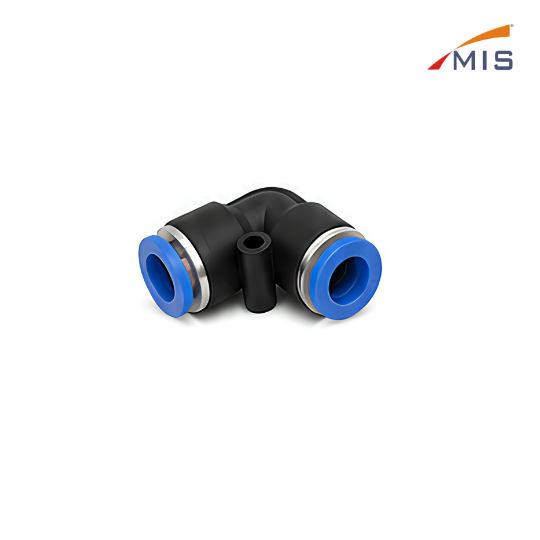

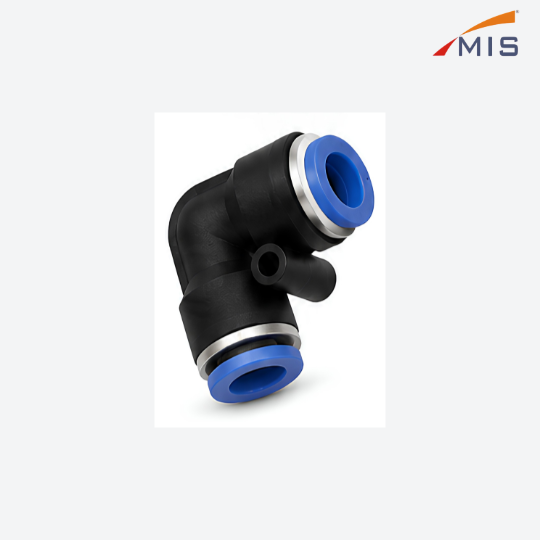

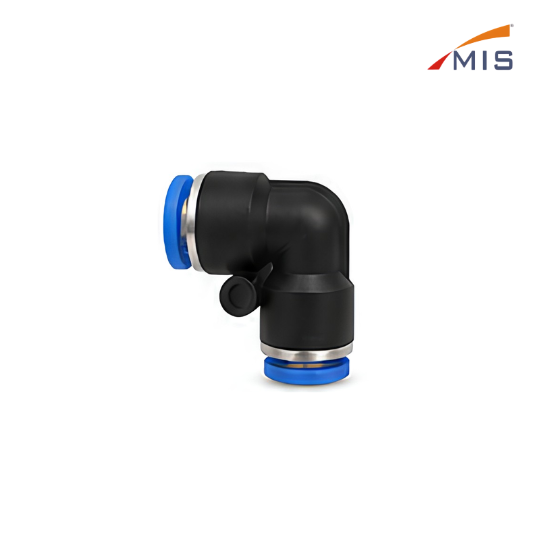

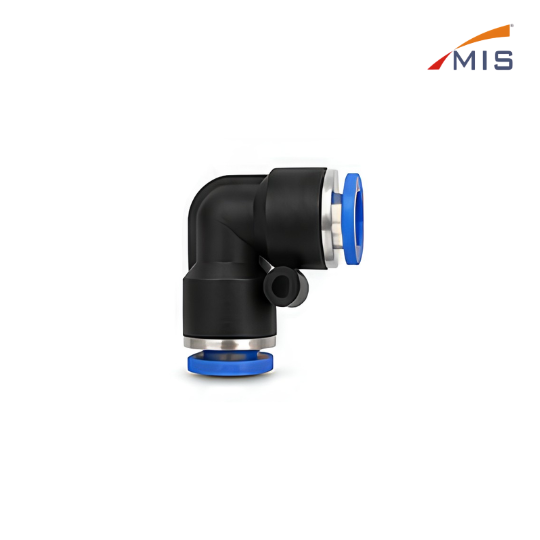

The SPV Equal Union Elbow is a high-quality push-in pneumatic fitting designed to connect two tubes at a 90-degree angle in compressed air and pneumatic systems. Manufactured from durable engineering plastic (PBT), it provides excellent strength, impact resistance, and long service life. Its one-touch push-in mechanism allows quick installation and easy tube removal, making maintenance simple and efficient.

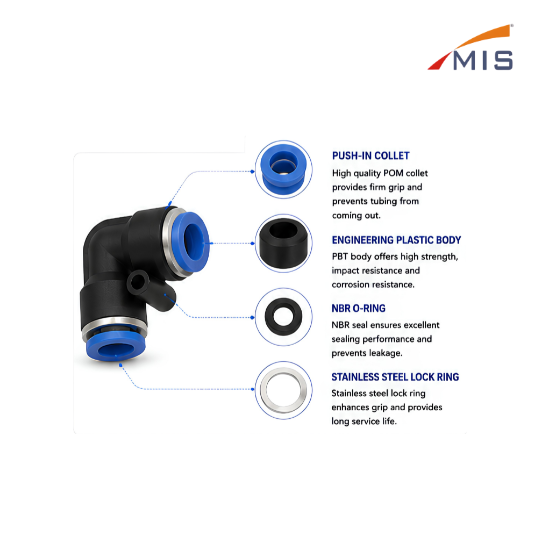

Featuring reliable NBR sealing and a stainless steel lock ring, the SPV Equal Union Elbow ensures leak-proof performance and secure tube retention even under continuous operation. Suitable for PU, Nylon, and PE tubing, it is widely used in pneumatic automation, packaging equipment, textile machinery, automotive systems, and industrial air distribution networks.
Body Material
:
Engineering Plastic (PBT)
Collet Material
:
POM (Polyacetal)
Working Pressure
:
0 to 10 Bar (0 to 1.0 MPa)
Vacuum Pressure
:
-100 kPa (10 Torr)
Operating Temperature
:
0°C to 60°C
Applicable Tube
:
PU / Nylon / PE
Media
:
Compressed Air, Vacuum
Connection Type
:
Push-in
Mounting Style
:
In-line (Equal Union)
Color
:
Black Body with Blue Collet
