F SERIES (LEGRIS TYPE)

F SERIES (LEGRIS TYPE)

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

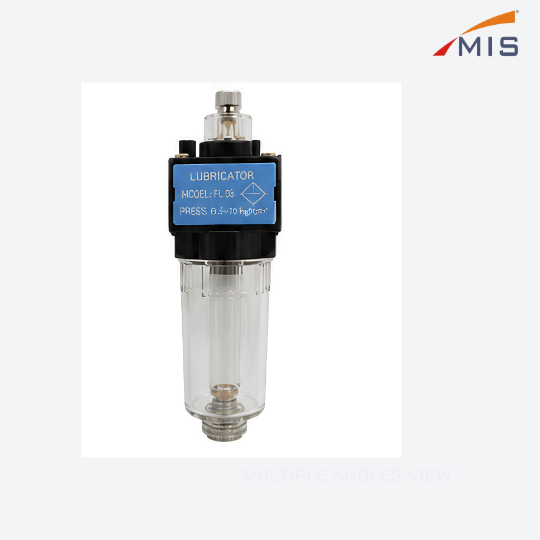

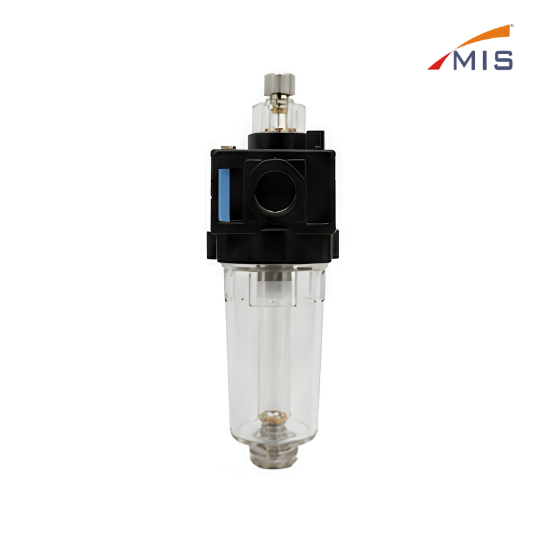

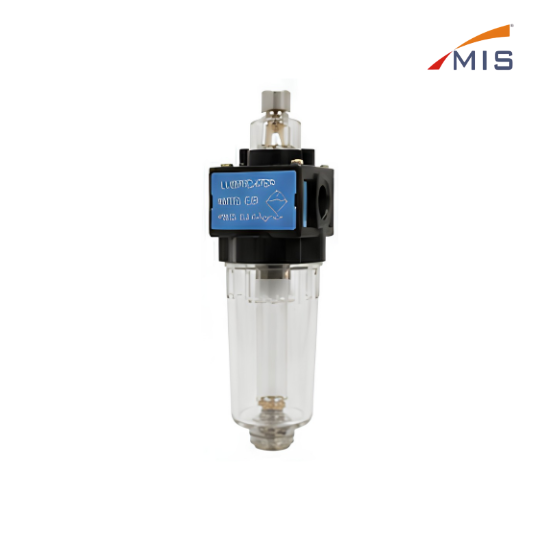

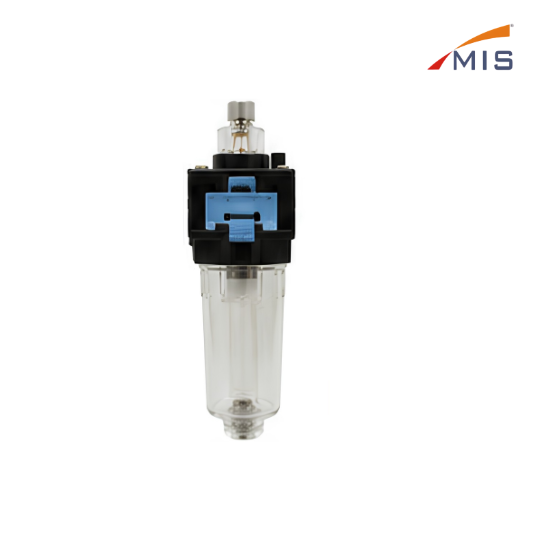

F Series (Legris Type) Lubricator is designed to add a controlled amount of oil mist into the

compressed air, ensuring smooth operation and longer life of pneumatic equipment.

Specifications

 Model Code
:
FL 06
 Port Size
:
1/4"
 Type
:
Lubricator (Without Guard)
 Max. Operating Pressure
:
1.0 MPa (10.2 kgf/cm²)
 Min. Operating Pressure
:
0.05 MPa (0.5 kgf/cm²)
 Max. Operating Temperature :
:
60°C
 Recommended Oil
:
ISO VG32
Bowl Material
:
Polycarbonate
 Body Material
:
Aluminum Die-cast
 Oil Capacity
:
25 cc
 Mounting Type
:
Panel Mount / Bracket Mount
 Weight
:
120 g
