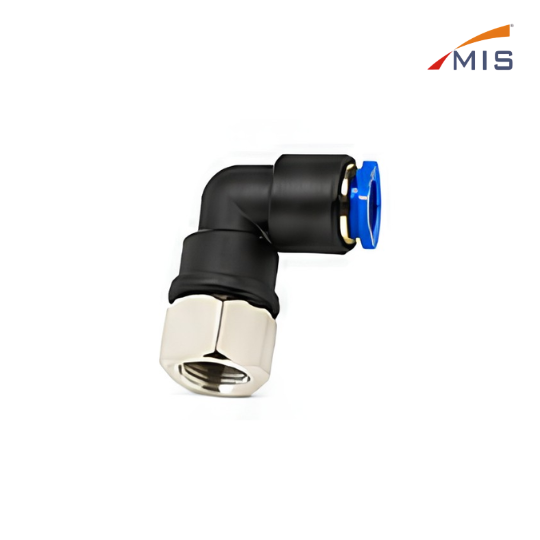

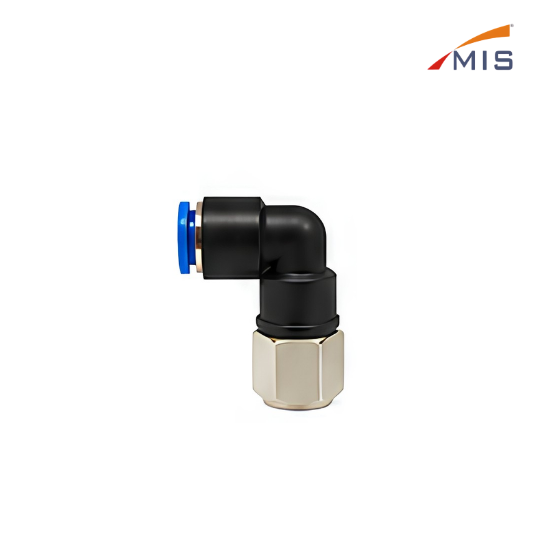

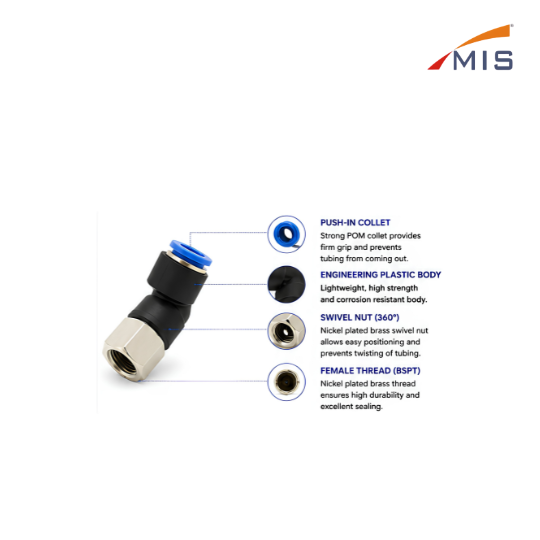

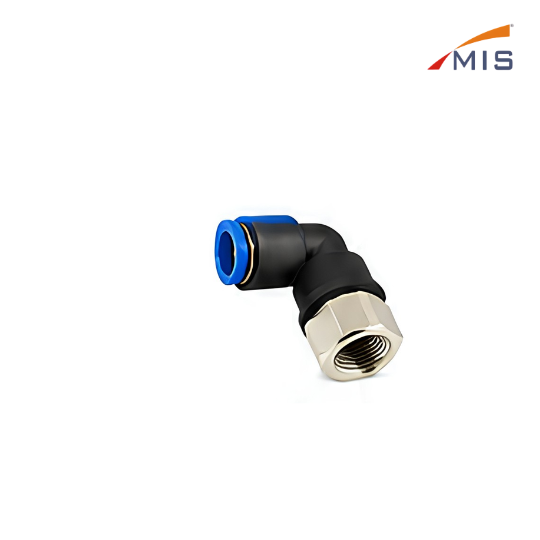

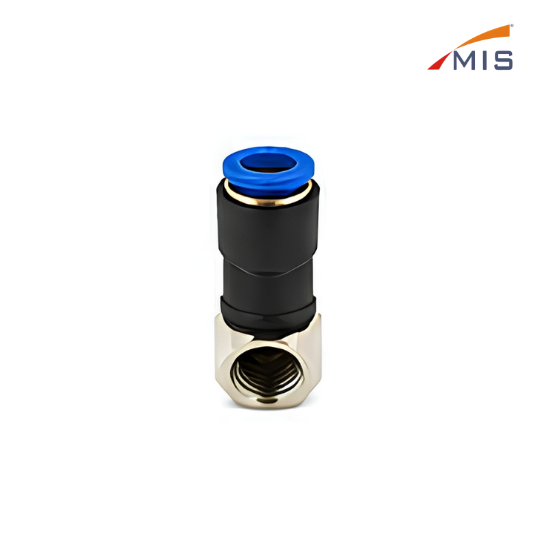

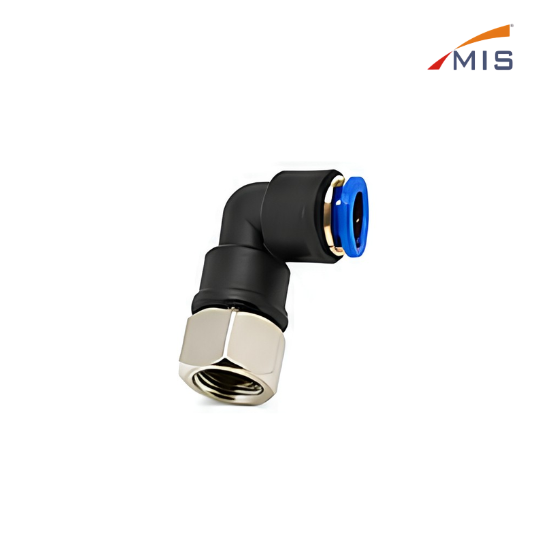

The SPFL Female Elbow Connector is a high-quality push-in pneumatic fitting designed to connect pneumatic tubing to female threaded ports at a 90-degree angle. Manufactured from durable engineering-grade PBT plastic with a nickel-plated brass female thread, it offers excellent strength, corrosion resistance, and long service life. The integrated 360° swivel design allows easy tube alignment and installation in confined spaces while preventing tube twisting during operation. Equipped with a precision POM collet and NBR sealing elements, the connector ensures secure tube retention and leak-proof performance under varying pressure conditions. Its compact and lightweight construction makes it ideal for pneumatic systems, industrial automation, packaging machinery, textile equipment, automotive applications, and machine tools requiring reliable directional air connections. The SPFL Female Elbow Connector combines flexibility, durability, and easy installation for efficient pneumatic system performance.
Body Material
:
Engineering Plastic (PBT)
Thread Material
:
Brass (Nickel Plated)
Collet Material
:
POM (Polyacetal)
Working Pressure
:
0 to 10 Bar (0 to 1.0 MPa)
Vacuum Pressure
:
-100 kPa (10 Torr)
Operating Temperature
:
0°C to 60°C
Applicable Tube
:
PU / Nylon / PE
Thread Standard
:
BSPT (PT)
Media
:
Compressed Air, Vacuum
