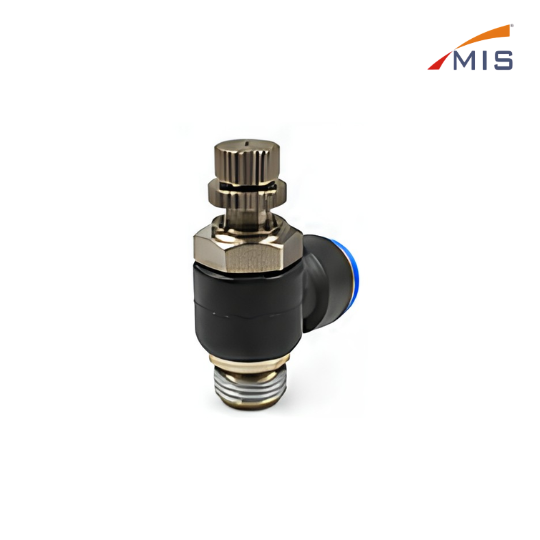

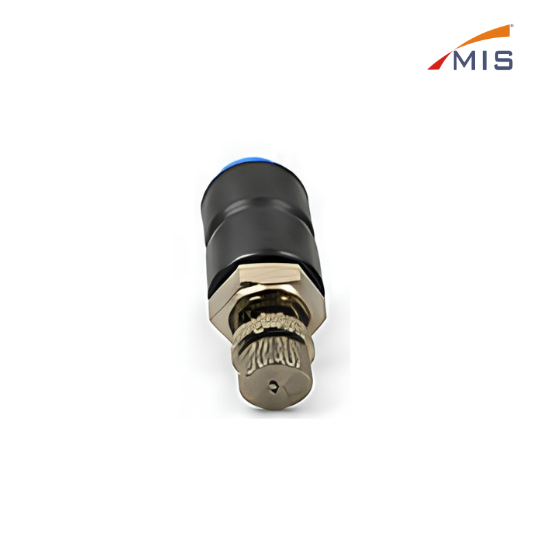

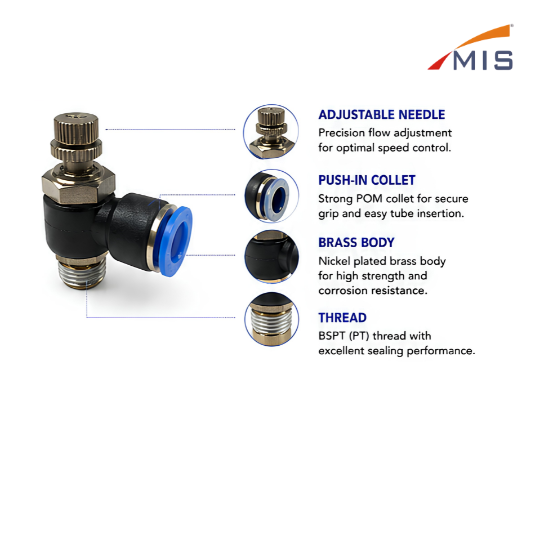

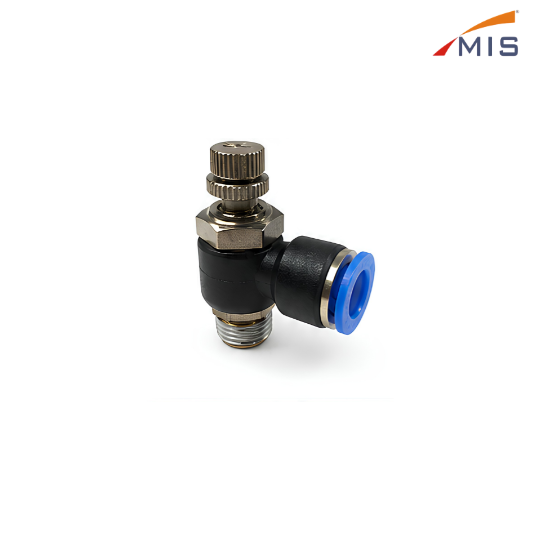

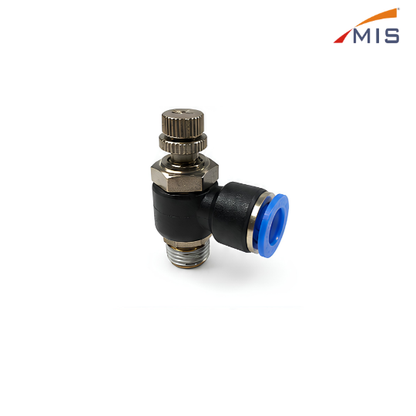

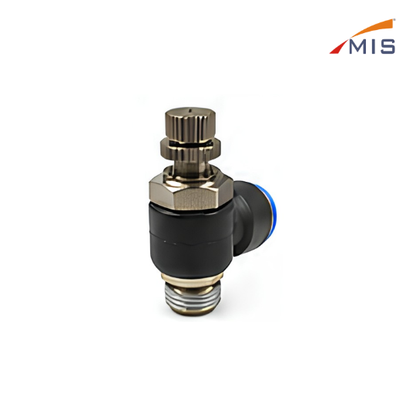

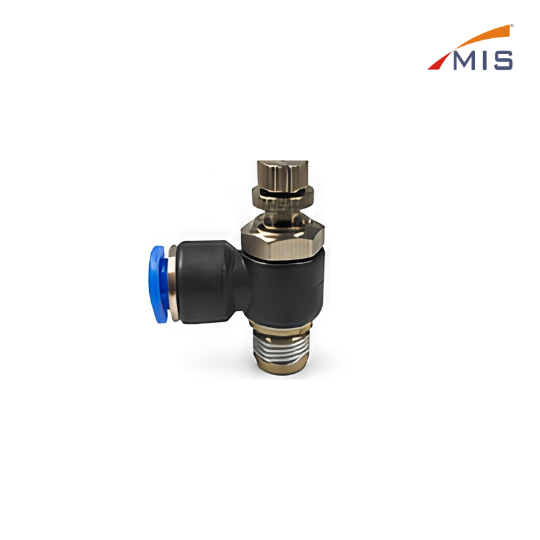

The JSC (NSC) Flow Control Elbow Valve is a precision pneumatic fitting designed to regulate airflow and control cylinder speed in compressed air systems. Featuring an adjustable needle valve mechanism, it allows accurate flow adjustment in one direction while enabling free flow in the opposite direction. Constructed with a nickel-plated brass body, precision POM collet, and high-quality NBR seals, the valve provides excellent durability, corrosion resistance, and leak-proof performance. The push-in connection design ensures quick, tool-free tube installation and secure tube retention. Its compact 90-degree elbow configuration helps save space and simplifies pneumatic tubing layouts in confined installations. Widely used in pneumatic automation, packaging machinery, textile equipment, automotive systems, machine tools, and industrial air circuits, the JSC Flow Control Elbow Valve offers reliable speed control, smooth operation, and long service life.
Body Material
:
Brass (Nickel Plated)
Thread Material
:
Brass (Nickel Plated)
Plastic Material
:
POM (Polyacetal)
Working Pressure
:
0 to 10 Bar (0 to 1.0 MPa)
Vacuum Pressure
:
-100 kPa (10 Torr)
Operating Temperature
:
0°C to 60°C
Applicable Tube
:
PU / Nylon / PE
Thread Standard
:
BSPT (PT)
Medial
:
Compressed Air, Vacuum
