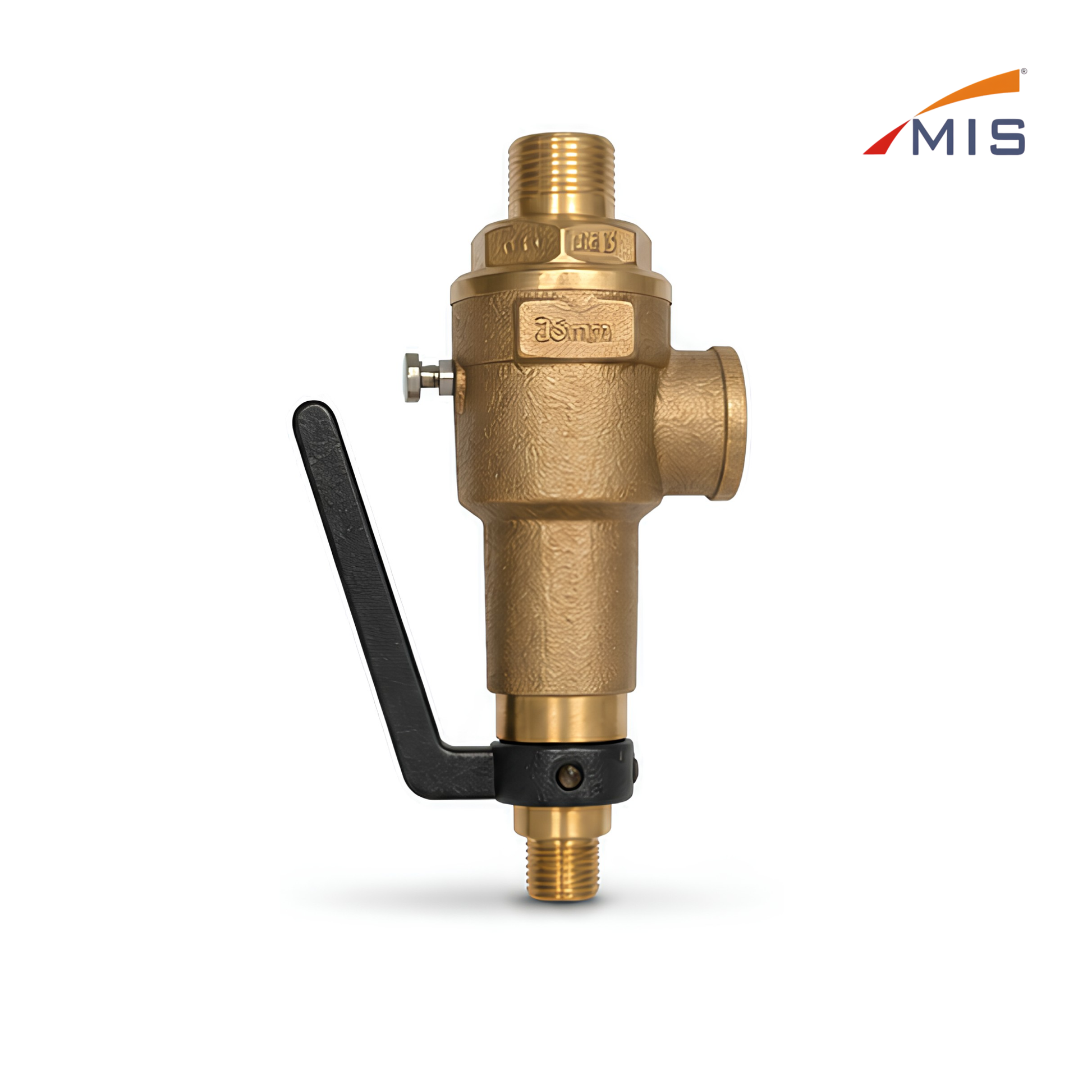

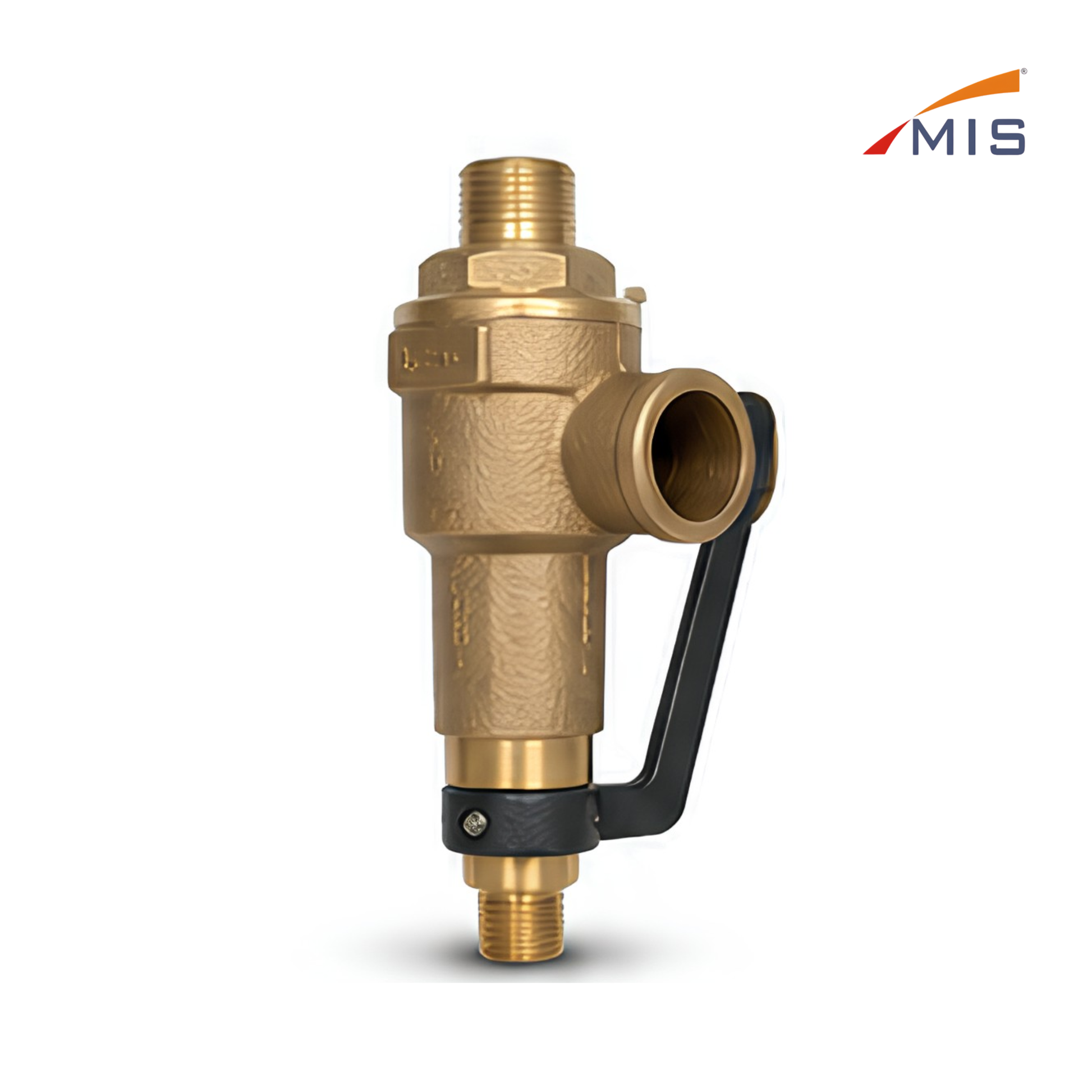

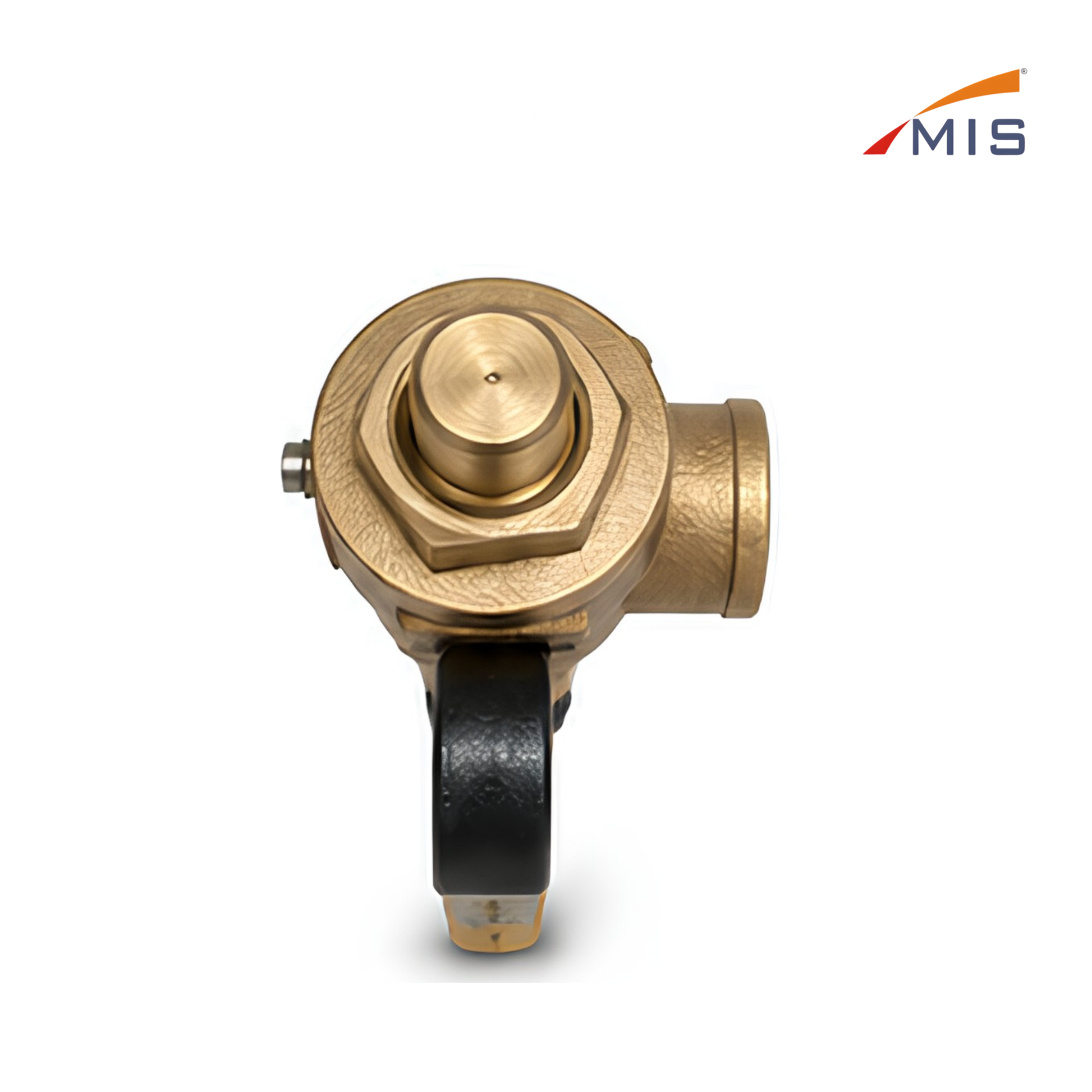

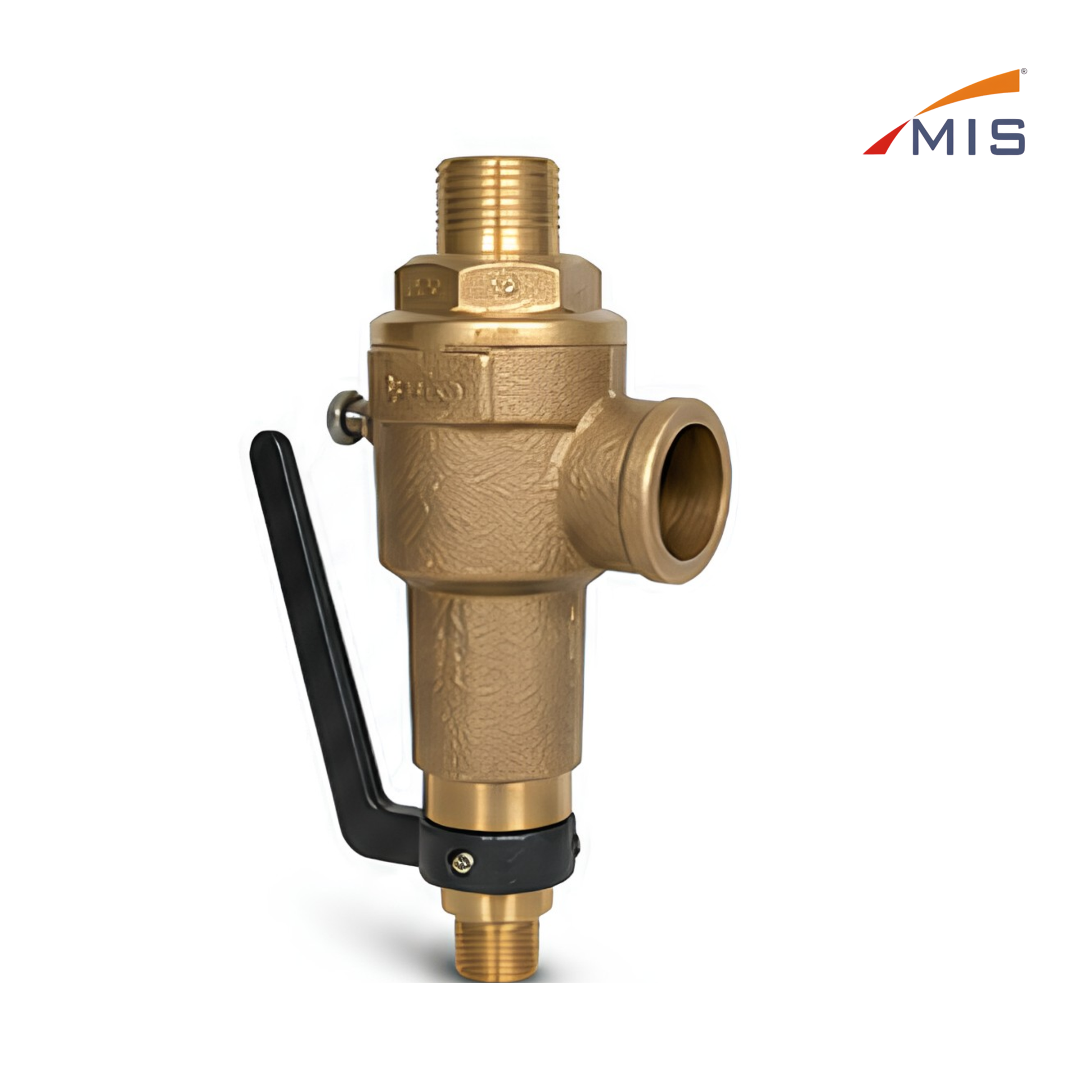

GM Safety Valve (IBR) is a lever operated pressure relief valve used to protect boilers, pressure vessels and pipelines from excess pressure. It lifts automatically at the set pressure to discharge excess steam, gas or air and prevents any damage to the system.
Manufactured as per IBR standards, it ensures safe operation, durability and long service life in industrial applications.
Body Material
:
Gun Metal / Bronze
Size Range
:
15mm to 50mm (1/2" to 2")
End Connection
:
Screwed BSP/NPT
Set Pressure Range
:
2.5 to 14 kg/cm² (g)
Temperature Rating
:
Up to 225°C
Application
:
Steam, Air, Water
Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
