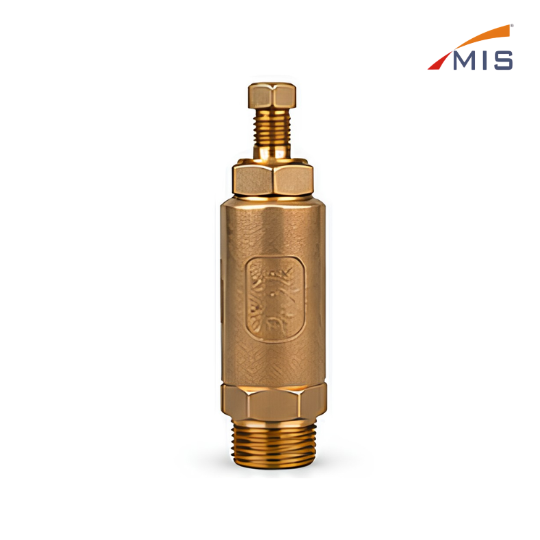

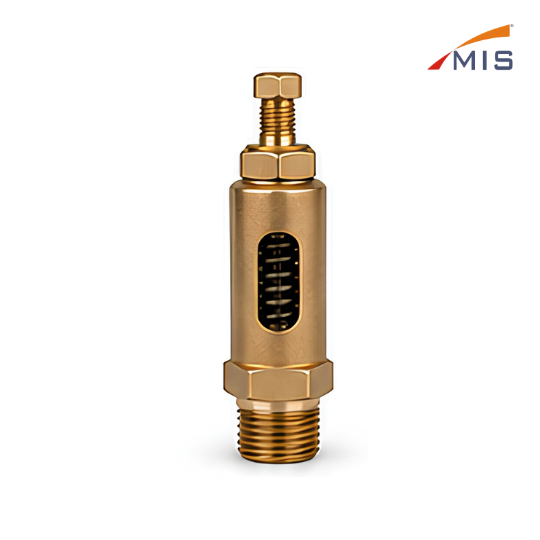

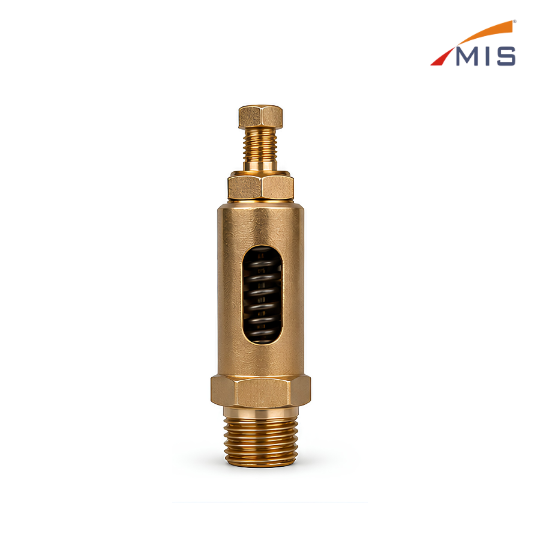

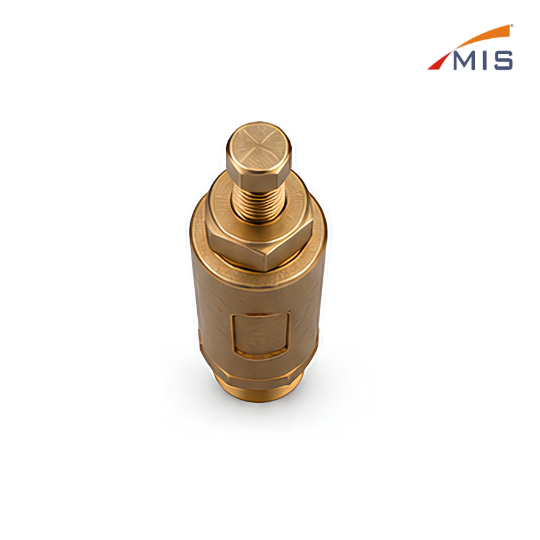

GM SAFETY VALVE VERTICAL TYPE (GUN METAL / BRONZE)

GM SAFETY VALVE VERTICAL TYPE (GUN METAL / BRONZE)

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

GM Safety Valve Vertical Type is designed to protect pressure systems from over pressure by automatically releasing excess pressure. It is widely used in water lines, air systems, boilers and industrial applications.

Specifications

 Material
:
 Gun Metal (GM) / Bronze
 TYPE
:
Vertical Type
 Connection
:
 Screwed (BSPT)

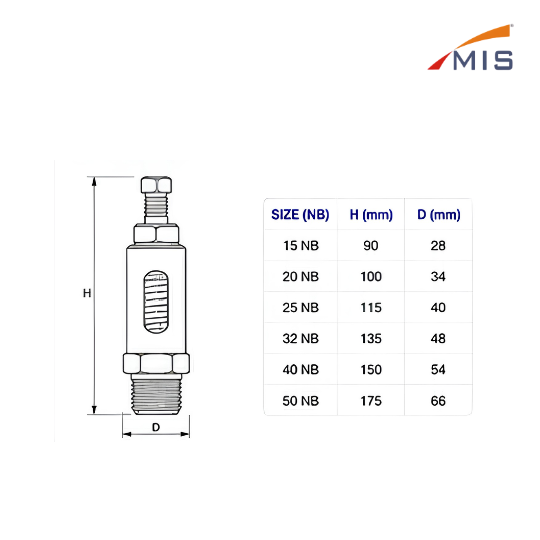

 Size
:
15 NB to 50 NB (1/2° to 2")
Pressure Rating
:

10 kg/cm² (150 PSI)

Temperature Rating
:
Up to 225°C
Application
:
 Water, Air, Steam, Oil
Standard
:
 IS: 778/BS: 5154
Thread
:
 BSPT (Bndish Standard Pipo Topor)
