GM WATER LEVEL GAUGE (IBR)

GM WATER LEVEL GAUGE (IBR)

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

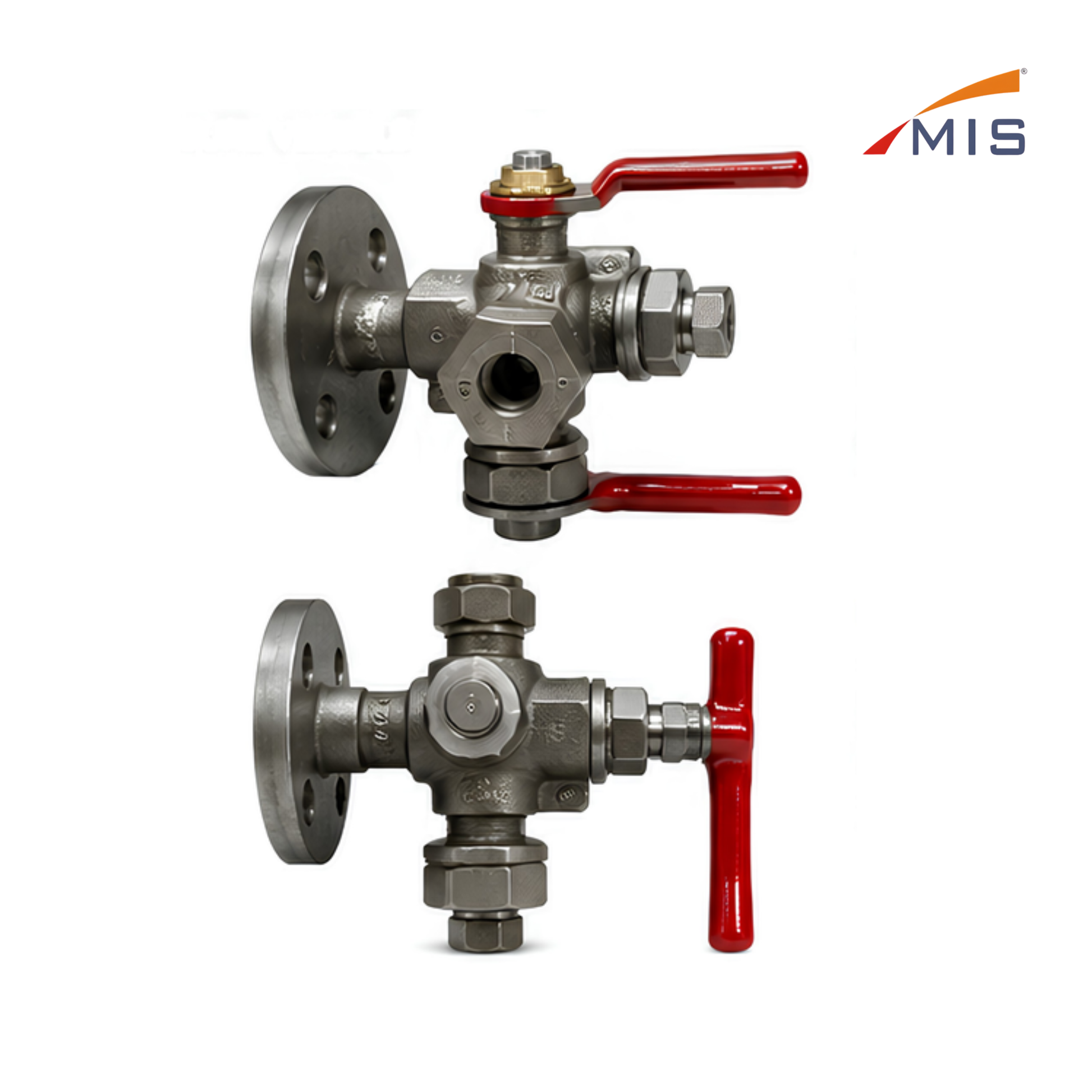

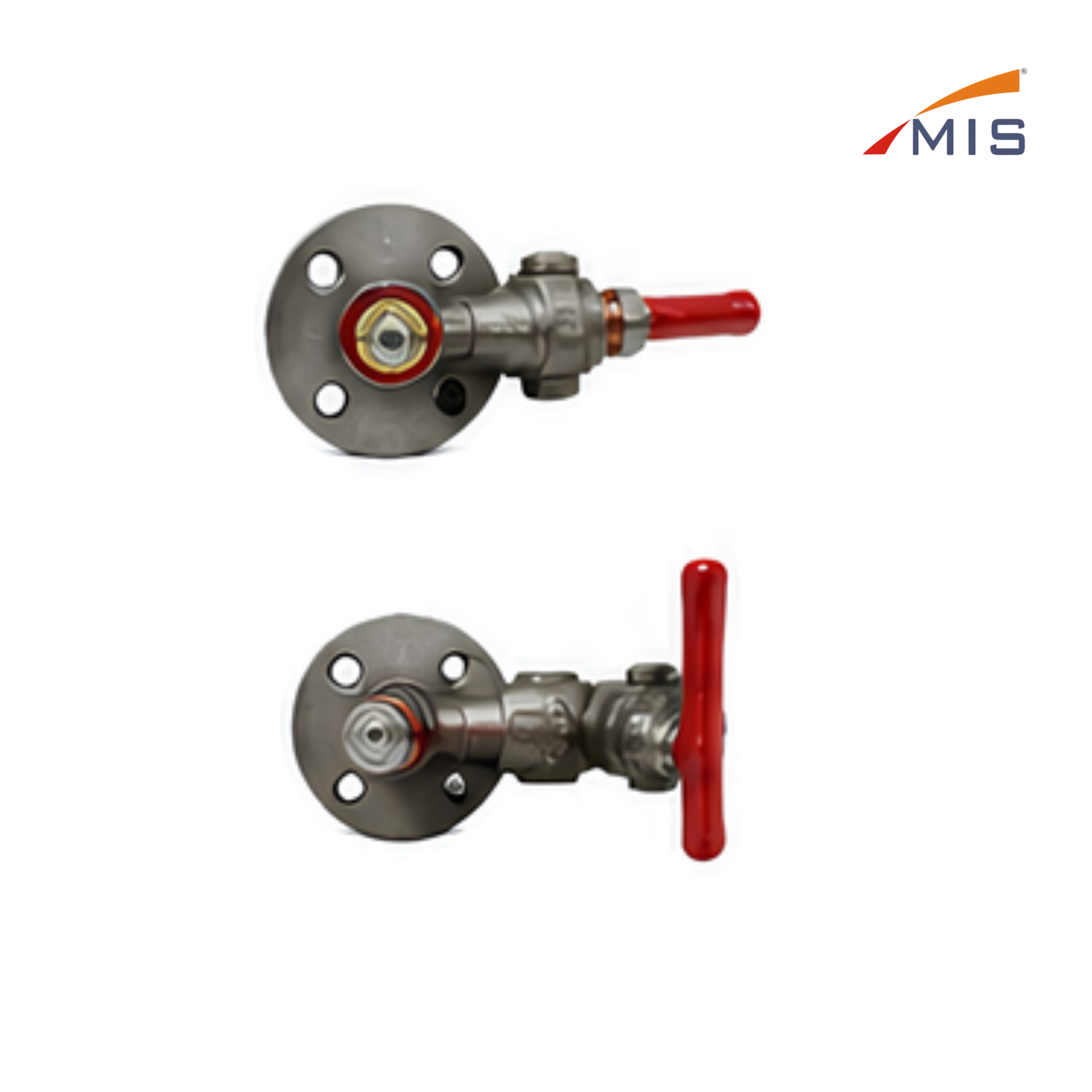

It consists of two gauge cocks (Top & Bottom) which are connected to the boiler through flanges and are used in conjunction with the reflex glass gauge assembly for clear water level indication. The cocks are of GM design with metal to metal seating, lever operated for easy opening and closing. Manufactured as per IBR standards.

Specifications

Type

:
Gauge Cock Set (GM Type)
Body Material
:
Forged Carbon Steel
Seat
:
Metal to Metal
Size (Connection)
:
1/2" (15 NB)
End Connection
:
Flanged (P.C.D as per IBR)
Rating
:

PN 16/PN 25

Temperature Rating
:
 Up to 225°C
Application
:
Boilers & Pressure Vessels
Standard
:
IBR Approved
Category
:
Gauge Cock Set
