HATHI BRACKET

HATHI BRACKET

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

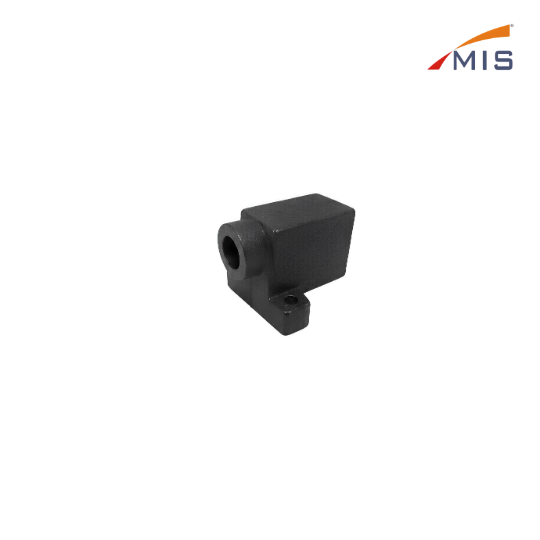

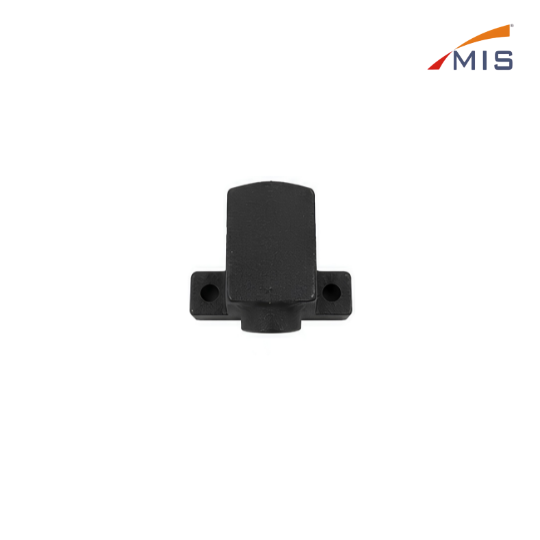

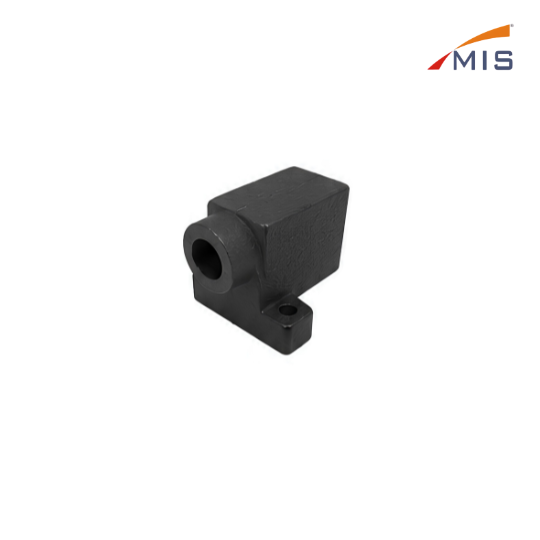

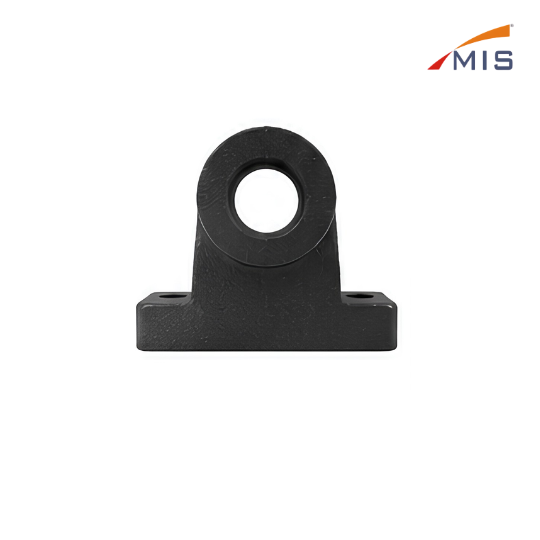

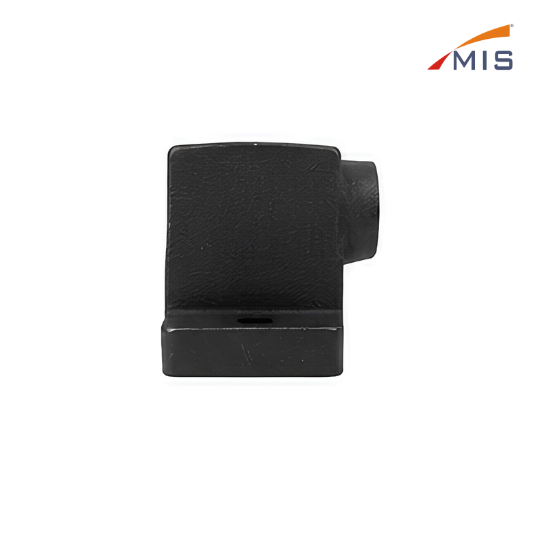

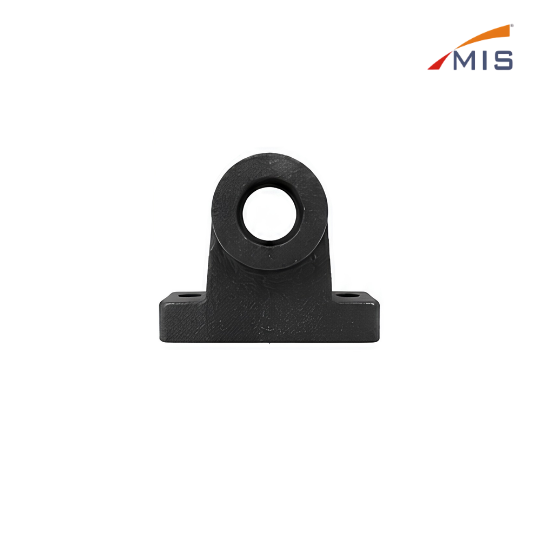

Hathi Bracket (Elephant Bracket) is a heavy-duty support bracket used for mounting and alignment of shafts, rods, and assemblies in industrial machinery. Manufactured from high-quality cast iron, it ofers excellent strength, durability, and resistance to wear and vibration. Its robust design ensures stable support and long life even in heavy load conditions.

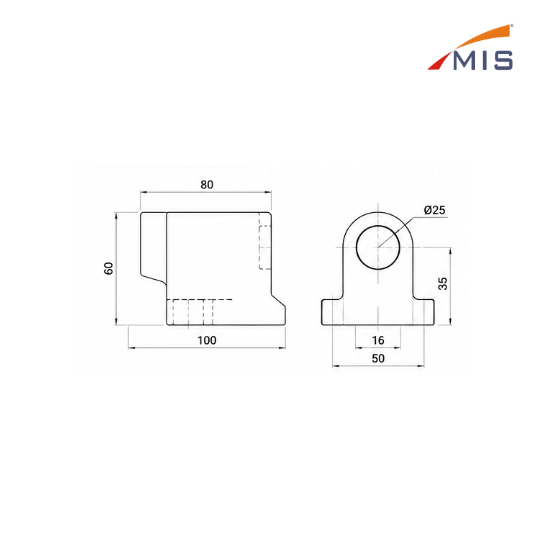

Specifications

 Material
:
Cast Iron (CI)
 Grade
:
FG 200 (IS 210/ISO 185)
 Bore Diameter
:
25 mm
Overall Length
:
100 mm
Overall Height
:
60 mm
 Overall Width
:
50 mm
Base Thickness
:
16 mm
Bore Height from Base
:
35 mm
Mounting Hole
:
012 mm (1 No.)
 Finish
:
Black Painted
Weight (Approx.)
:
1.00 kg
Load Capacity (Approx.)
:
Up to 800 kg (Static)

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
