HPAF SERIES

HPAF SERIES

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

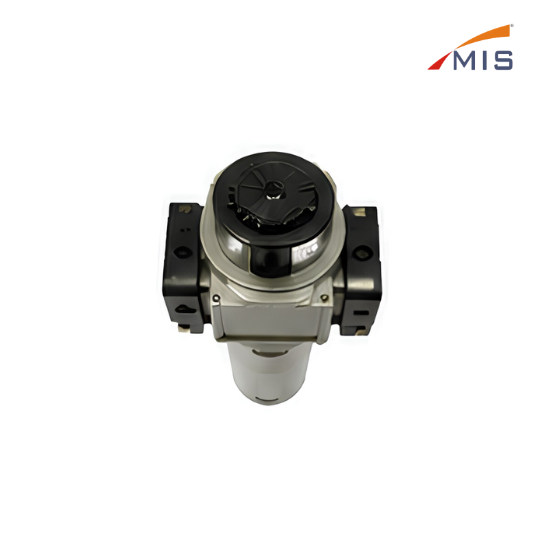

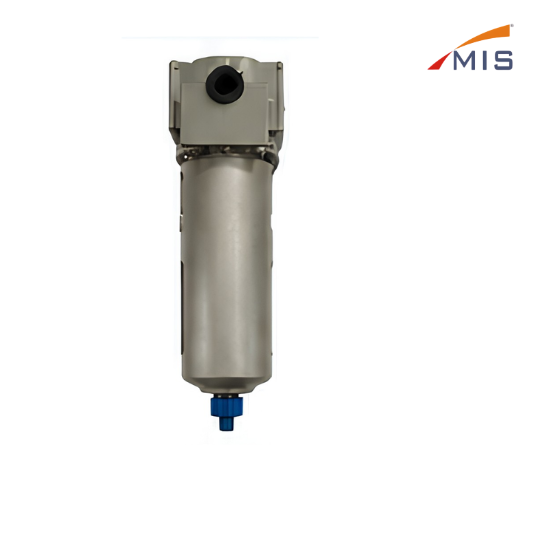

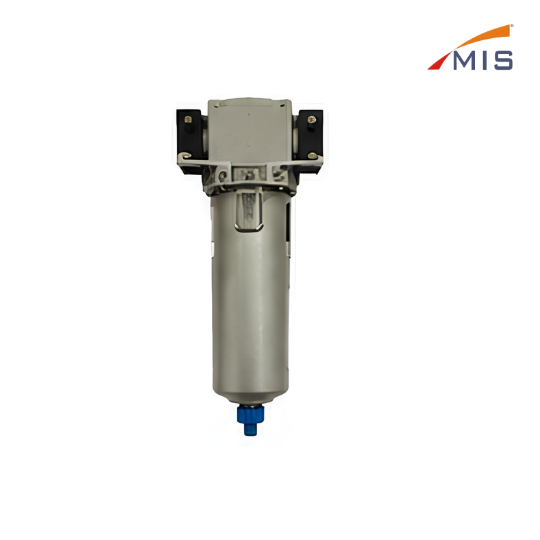

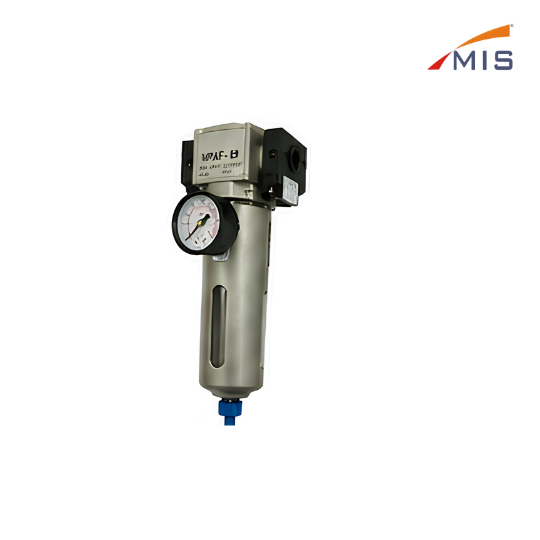

HPAF Series High Pressure FRL is designed for high pressure pneumatic systems. It combines a filter and regulator with a pressure gauge in one unit, ensuring clean air, stable pressure regulation and reliable performance even under high pressure conditions.

Specifications

 Model Code
:

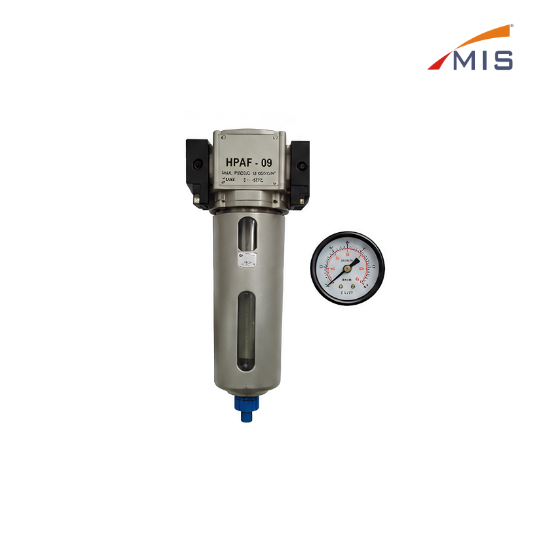

HPAF-09
Type
:
High Pressure FRL (Filter + Regulator + Gauge)
 Port Size
:
1/4"
 Max. Operating Pressure
:
16 Kgf/cm²
 Proof Pressure
:
20 Kgf/cm²
 Filtration
:
40 Micron
 Pressure Regulating Range
:
0.5-16 Kgf/cm²
 Gauge Range
:
0-16 kgf/cm²
 Operating Temperature
:
5-60 °C
 Bowl Material
:
Aluminum Die-cast
 Bowl Guard
:
Integrated (Metal)
 Drain Type
:
Manual
 Mounting Type
:
Bracket Mount
 Fluid
:
Compressed Air
 Weight (Approx.)
:
0.65 kg
