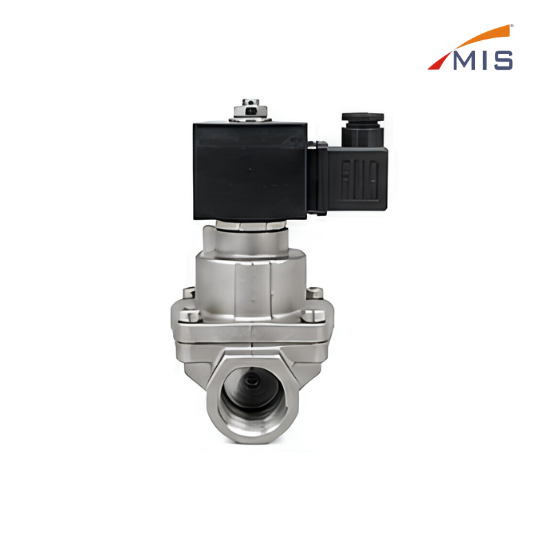

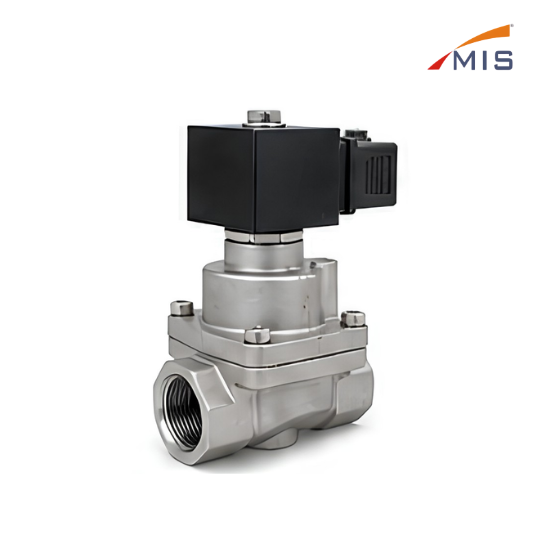

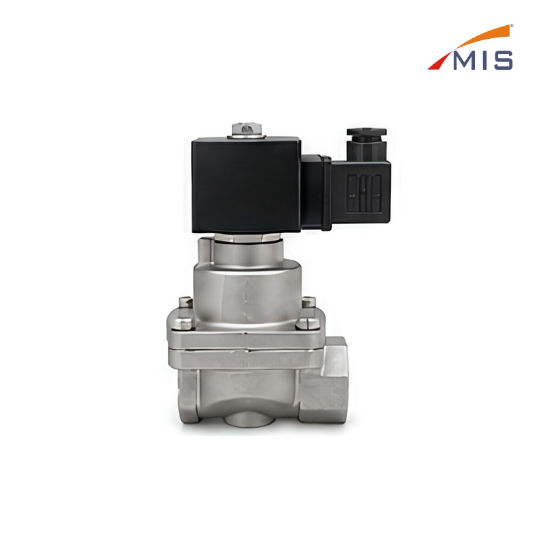

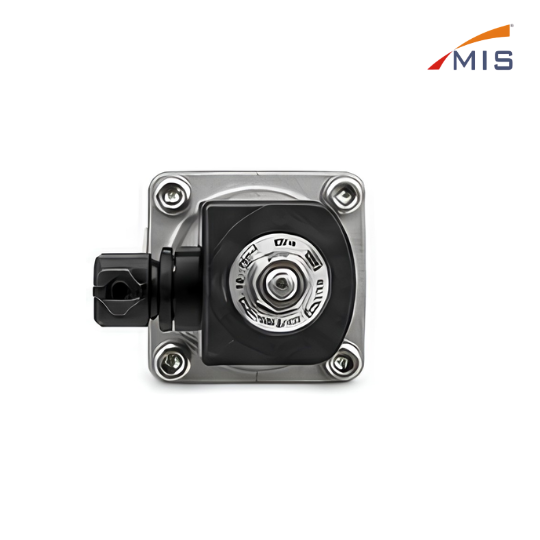

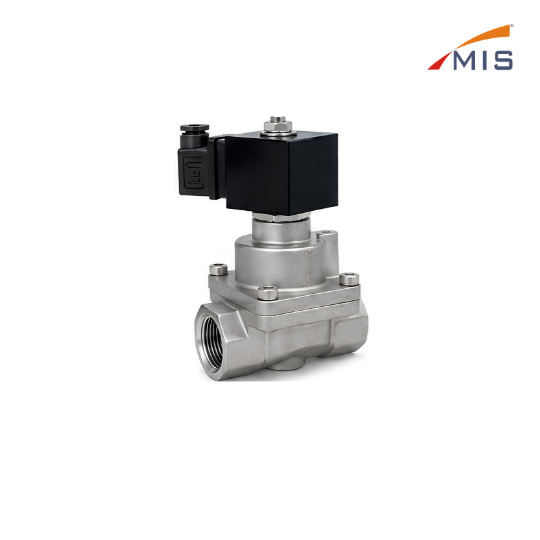

L170 Series 2/2 Direct Acting Servo Operated Valve is specially designed for steam applications. The valve is normally closed (NC) type and opens when energized. It features a servo-assisted piston construction for high reliability, quick response and long service life.
Specifications
Valve Type
:
2/2 Way, Normally Closed (NC)
Operation
:
Direct Acting Servo Operated
Media
:
Steam
Body Material
:
Stainless Steel (S.S. 304)
Port Size
:
1/2", 3/4", 1" (BSPT)
Orifice Size
:
15 mm.
Operating Pressure
:
0 ~ 10 kg/cm²
Max. Pressure
:
15 kg/cm²
Proof Pressure
:
15 kg/cm²
Operating Temperature
:
5 180 °C
Coil Insulation Class
:
Class H
Voltage Options
:
AC 220V 50/60Hz, AC 110V 50/60Hz DC 24V (Optional)
