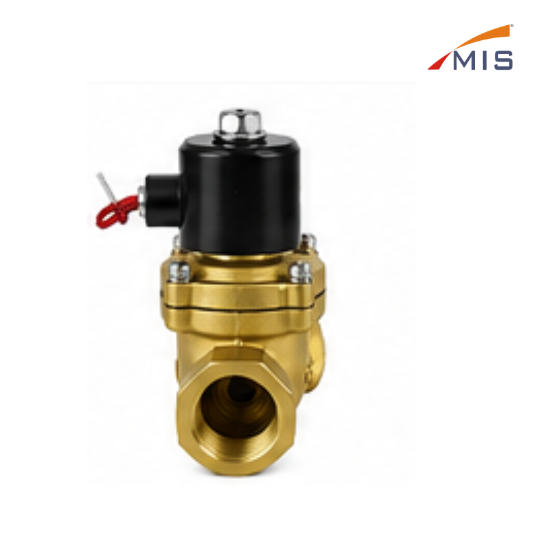

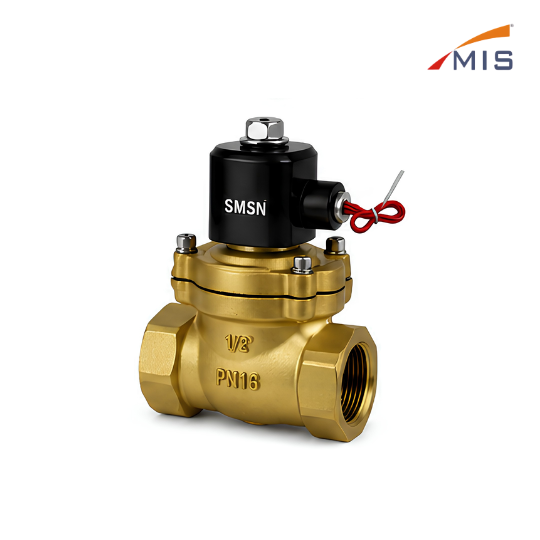

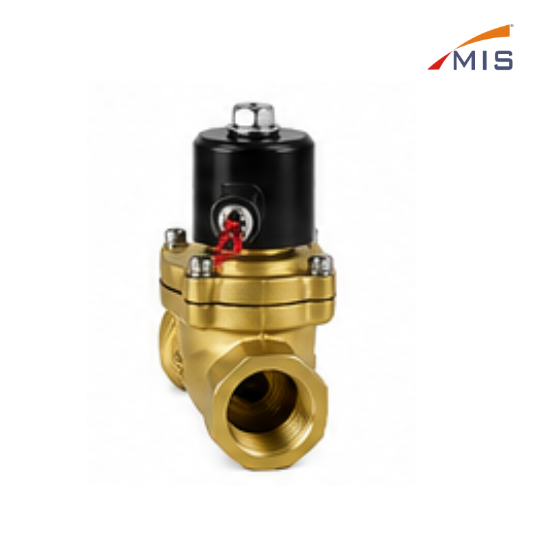

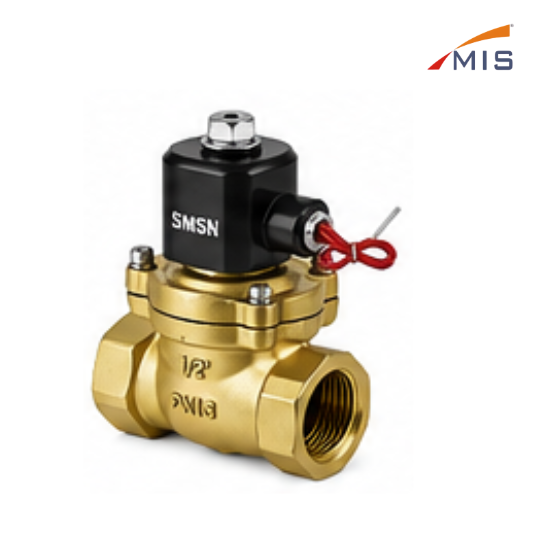

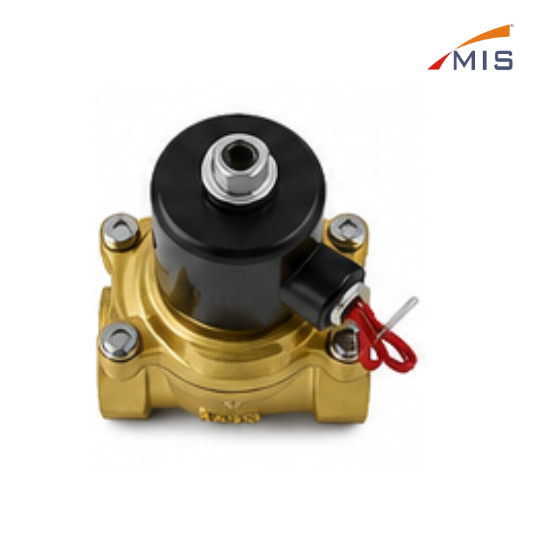

L170 Series 2/2 way direct acting servo operated valve is designed for automatic control of hot air, water, steam, gas and other neutral fluids. The valve uses a servo assisted diaphragm system for reliable operation under high temperature and pressure conditions. Suitable for vertical installation with coil upright.
Specifications
Valve Type
:
2/2 Way, Direct Acting, Servo Operated
Operation
:
Normally Closed
Actuation
:
Direct Acting (Solenoid)
Working Medium
:
Hot Air, Water, Steam, Gas
Working Pressure
:
-15 to 10 kg/cm²
Temperature Range
:
-15 to +180°C
Body Material
:
Brass
Seal Material
:
PTFE/NBR
Port Connection
:
BSPP (Female Thread)
Fitting Position
:
Vertical (Coil Upright)
Orifice Size
:
As per Model
Voltage Options
:
AC 220V 50/60Hz, AC 110V 50/60Hz DC 24V, DC 12V (Optional)
