LF SERIES

LF SERIES

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

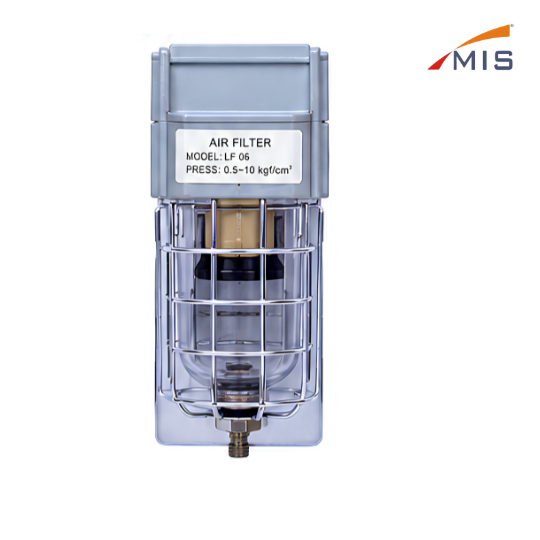

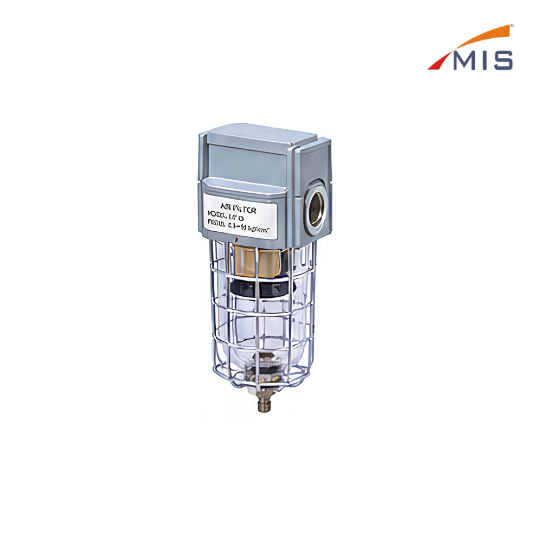

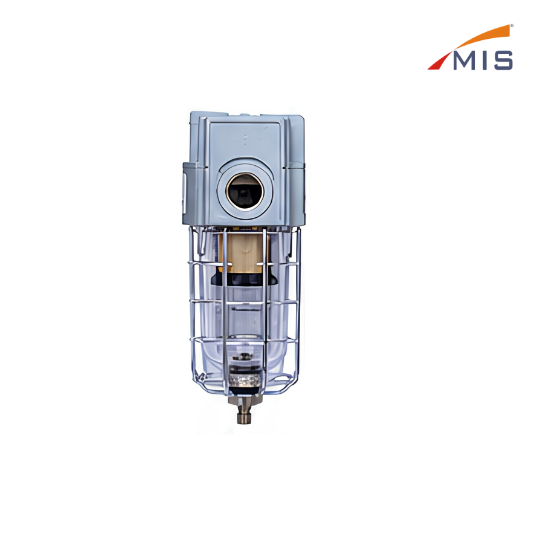

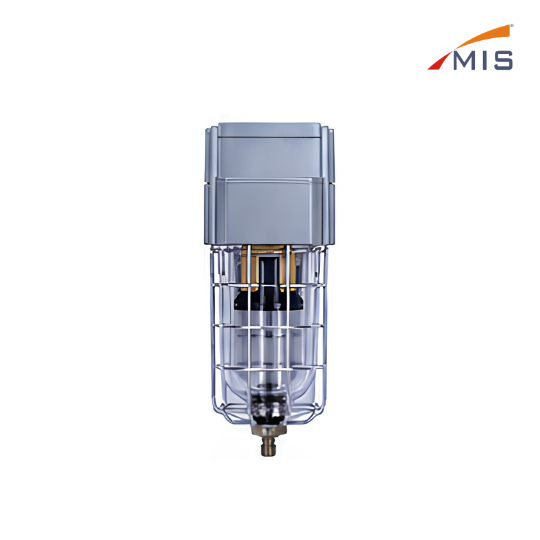

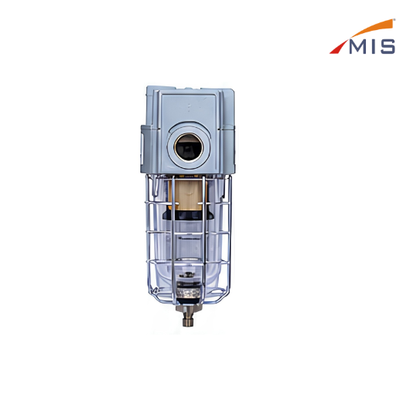

LF Series Air Filter is designed to remove solid particles, dust and moisture from compressed air systems. Equipped with a metal guard for added bowl protection and durability in demanding environments.

Specifications

 Model Code
:
LF 06
 Port Size
:

1/4"

 Type
:
Air Filter
 Max. Operating Pressure
:
1.0 MPa (10.2 kgf/cm²)
 Min. Operating Pressure
:
0.05 MPa (0.5 kgf/cm²)

Max. Operating Temperature


:
60°C
 Filtration Rating
:
5 Micron (Standard)
 Bowl Material
:
Polycarbonate
 Guard Material
:
Metal (Steel)
 Drain Type
:
Manual Drain (Standard) Auto Drain (Optional)
 Mounting Type
:
Bracket Mount / Panel Mount
 Fluid
:
Compressed Air
 Weight (Approx.)
:
170 g
