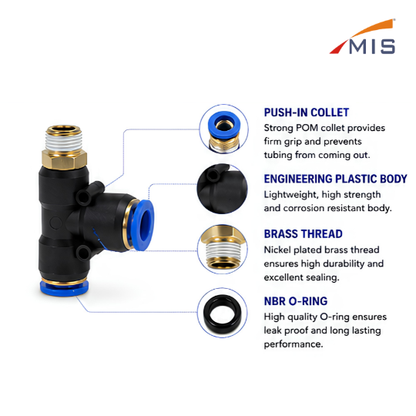

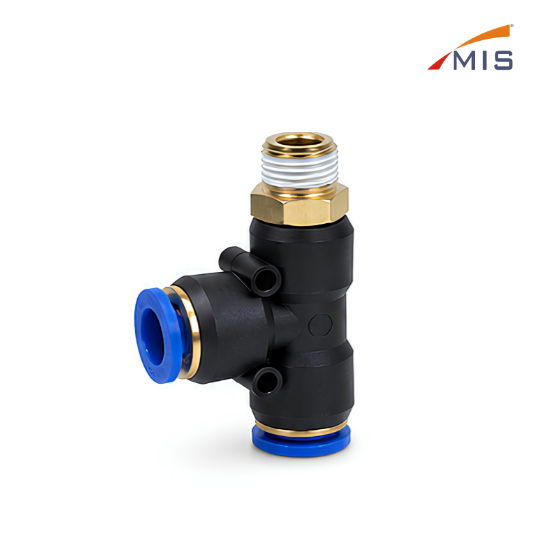

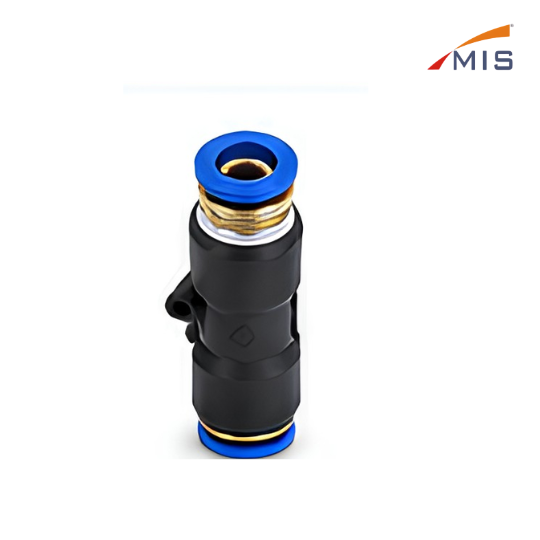

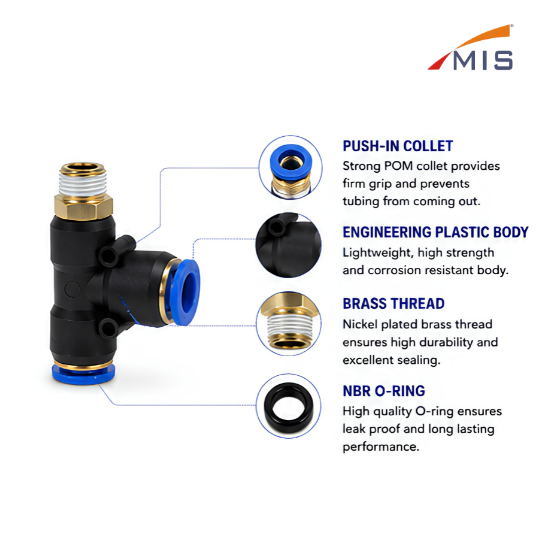

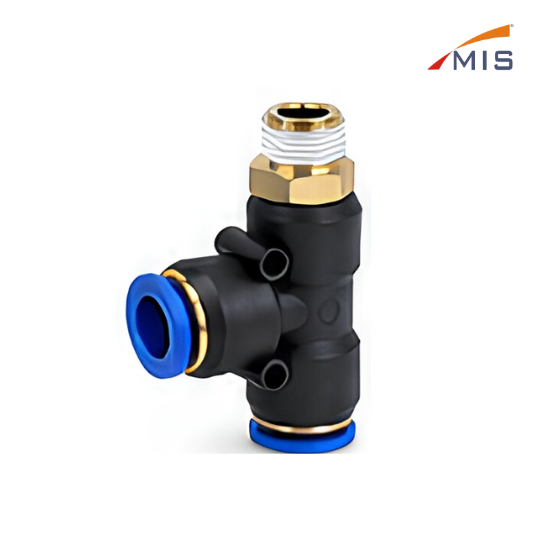

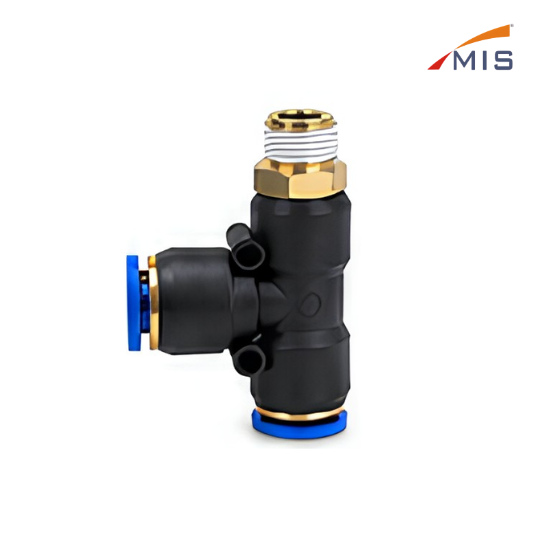

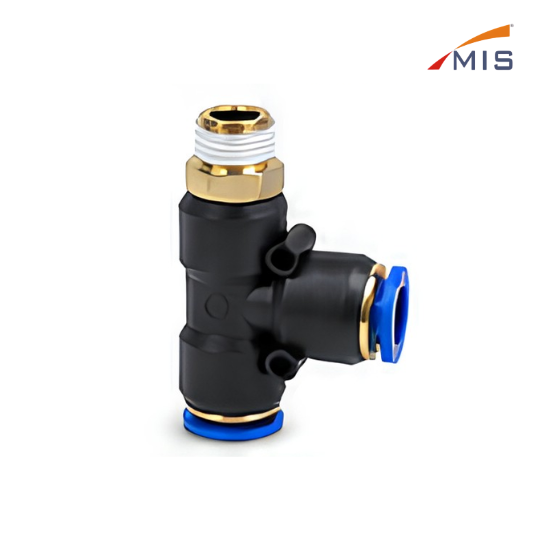

The SPD (PST) Male Run Tee Connector is a high-quality push-in pneumatic fitting designed to connect three pneumatic lines while providing a male threaded branch connection. Manufactured from durable engineering-grade PBT plastic with a nickel-plated brass thread, it offers excellent strength, corrosion resistance, and long service life. The push-in design enables quick, tool-free installation and secure tube retention, making system assembly faster and more efficient. Equipped with precision POM collets and NBR sealing elements, the connector ensures leak-proof performance and reliable operation under demanding industrial conditions. Its compact construction and robust design make it suitable for pneumatic systems, industrial automation, packaging machinery, textile equipment, automotive applications, and machine tools requiring efficient air distribution and threaded connections.
Body Material
:
Engineering Plastic (PBT)
Thread Material
:
Brass (Nickel Plated)
Collet Material
:
POM (Polyacetal)
Working Pressure
:
0 to 10 Bar (0 to 1.0 MPa)
Vacuum Pressure
:
-100 kPa (10 Torr)
Operating Temperature
:
0°C to 60°C
Applicable Tube
:
PU / Nylon / PE
Thread Standard
:
BSPT (PT)
Media
:
Compressed Air, Vacuum
