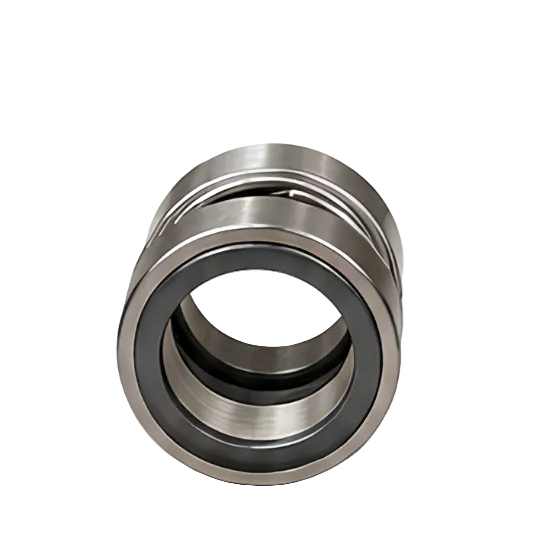

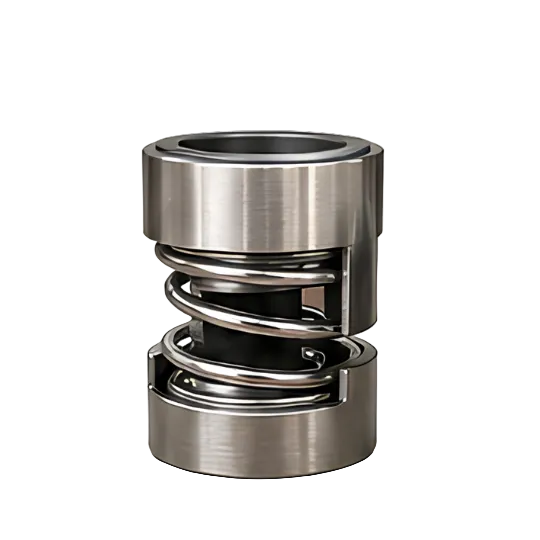

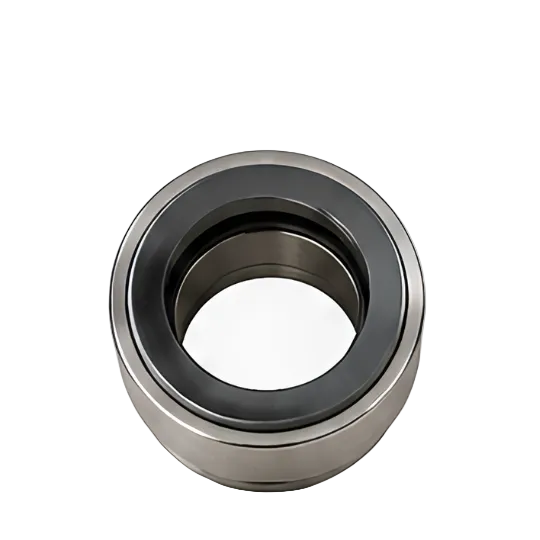

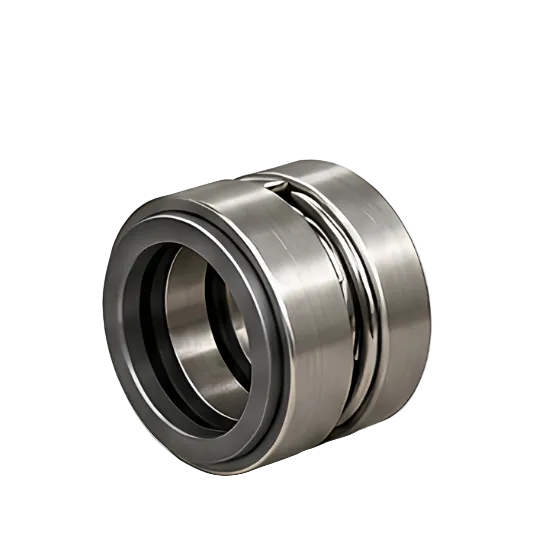

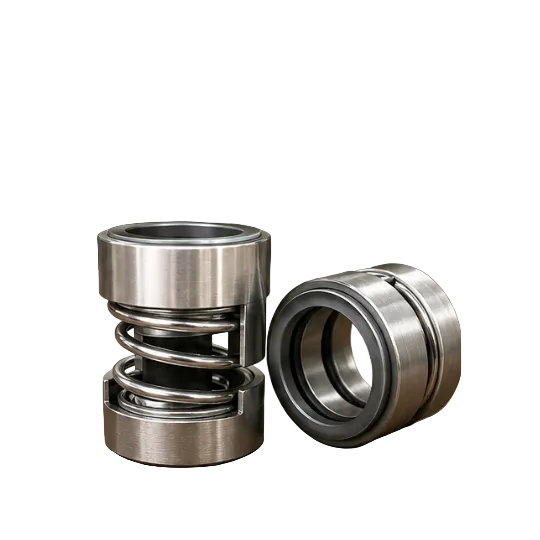

MECHANICAL PUMP SEAL

MECHANICAL PUMP SEAL

size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

Mechanical Pump Seal is used to prevent leakage of liquid from the shaft in centrifugal pumps and other rotating equipment. It operates through the sliding of two precision lapped faces with the help of a spring and elastomer, ensuring sealing under pressure. Suitable for wide range of industrial applications.

Specifications

 TYPE
:
 Single Spring Unbalanced
 Seal Face
:
Carbon/Ceramic
 Seat
:
 Ceramic/Silicon Carbide
 Secondary Seal
:
NBR EPDM / Viton
  Spring
:

SS 304 SS 316

Metal Parts
:
 SS 304 SS 316
Operating Temperature
:
 -20°C to +120°C
Operating Pressure
:
 Up to 10 bar
Shaft Size Range
:
 25mm to 40mm
Media
:
 Water, Oils, Chemicals, Slurries etc.
Speed
:
 Up to 3000 RPM

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
View full details
