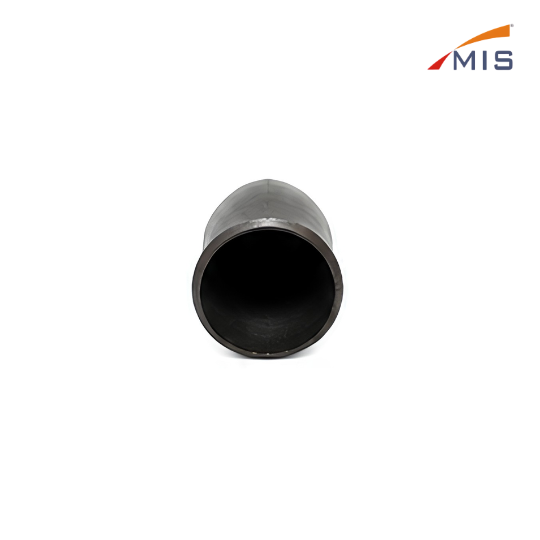

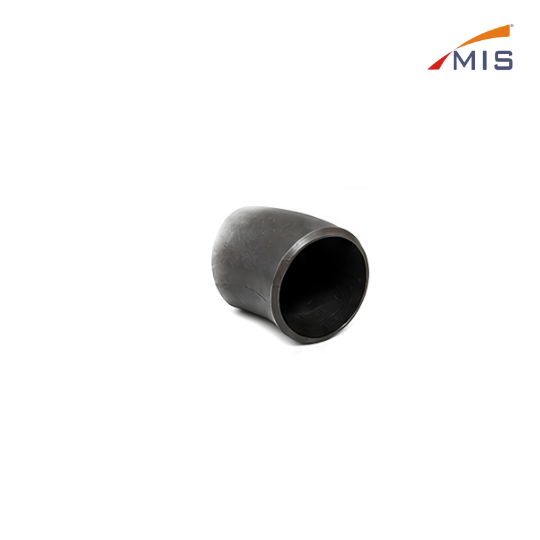

MS LONG BAND 90° DEGREE SEAMLESS

MS LONG BAND 90° DEGREE SEAMLESS

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

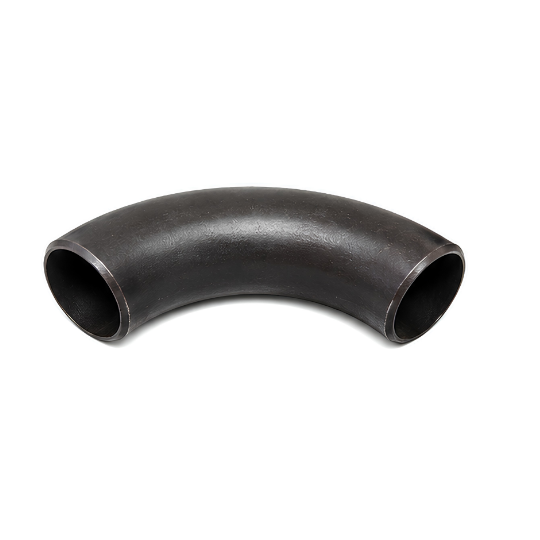

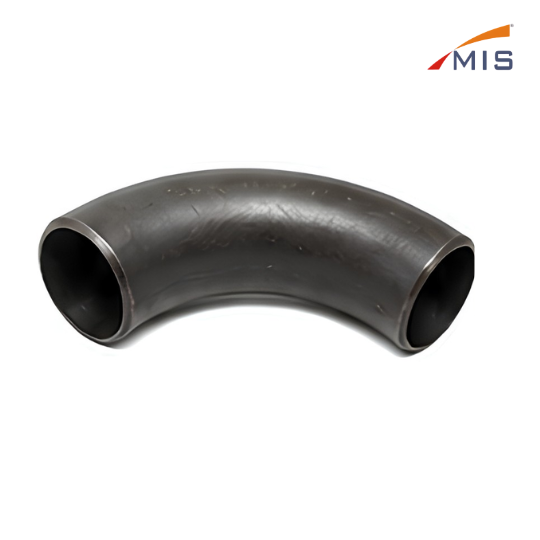

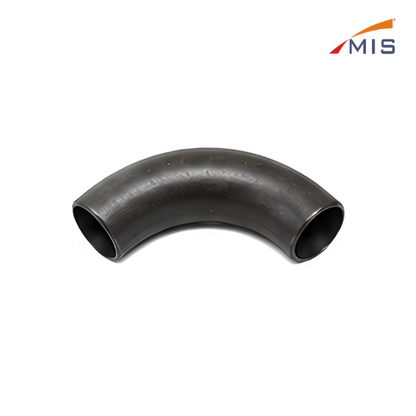

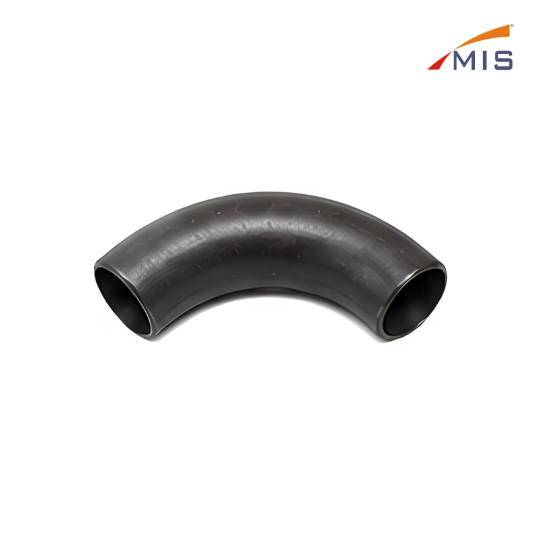

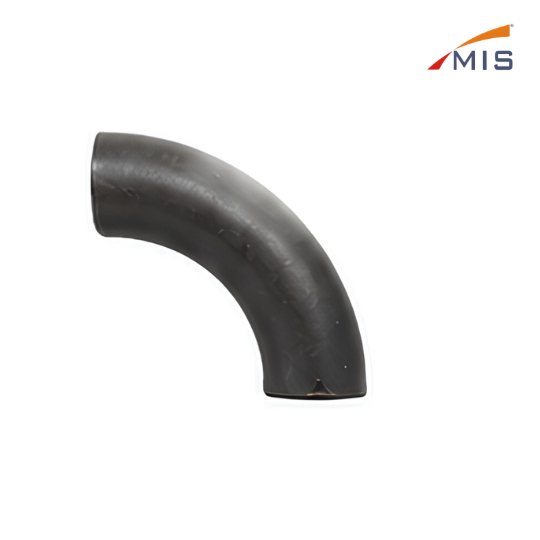

MS Long Band 90° Degree Seamless Bend is a high quality pipe fitting used to change the direction of flow in piping systems. It is manufactured from seamless Mild Steel pipe using hot induction/mendrel bending process to ensure smooth curvature, uniform wall thickness and excellent performance in high pressure and high temperature applications.

Specifications

 Material
:
Mild Steel (MS)
Type
:
Long Radius Bend 90°
 Bend Angle
:
90 Degree
Manufacturing Process
:
Hot Induction/Mandrel Bending
Seamless
:
Yes (Seamless Pipe)
Standards
:
IS 1239/ASTM A53/ASME B16.9
Material Grade
:
IS 1239
Wall Thickness
:
Sch 10/Sch 20/Sch 40
Ends
:
Plain End (Beveled Optional)
Surface Finish
:
Black/Oiled

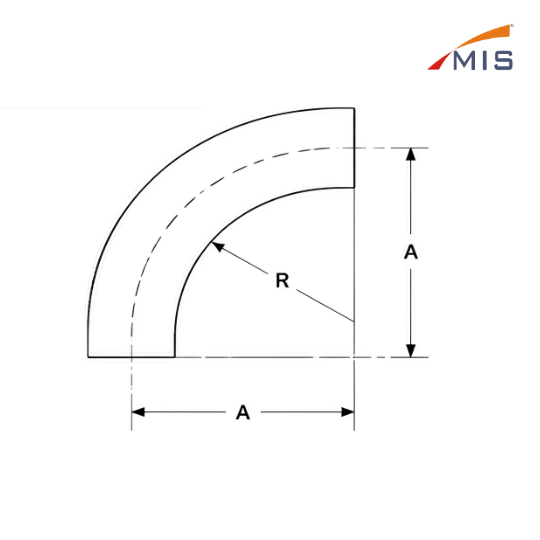

Radius (R)
:
1.5 X OD (Long Radius)
Working Pressure
:
As per Wall Thickness & Application
 Temperature Range
:
-20°C to 450°C (Approx.)

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
