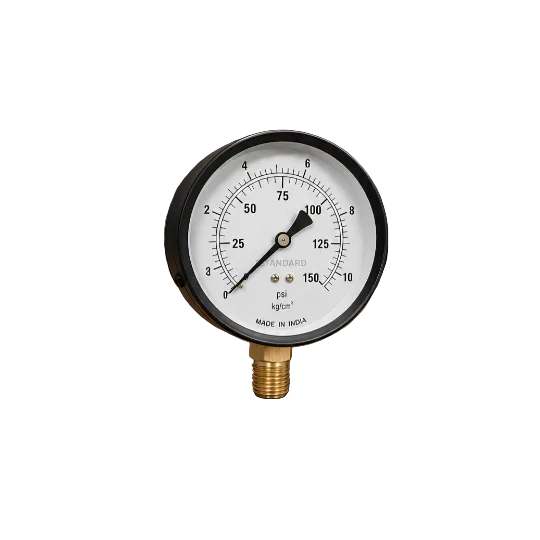

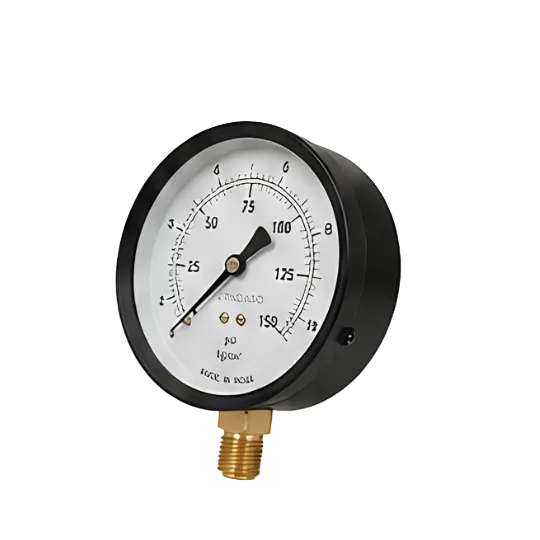

MS PRESSURE GAUGE

MS PRESSURE GAUGE

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

MS Pressure Gauge is a precision instrument used to measure the pressure of liquids and gases in a wide variety of industrial applications. It operates on the proven Bourdon

tube principle, ensuring high accuracy, reliability and long service life. The gauge is suitable for general purpose industrial use and compatible with non-corrosive media.

Specifications

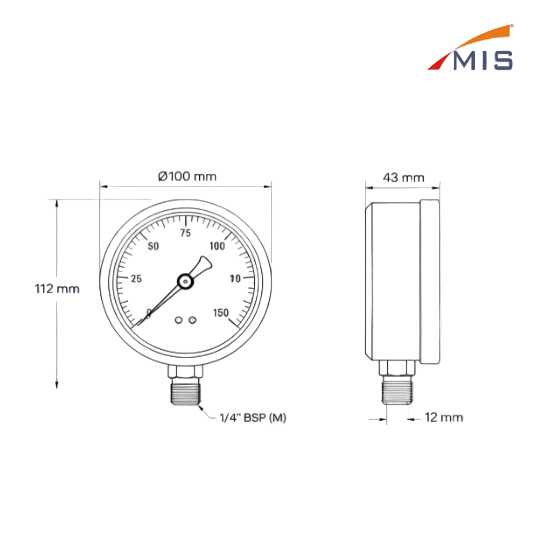

 Nominal Size
:
 4 Inch (100 mm)
 Dial Size
:
100 mm
 Measuring Range
:
 O to 150 PSI (0 to 10 kg/cm²)
 Accuracy
:
±1.6% of Full Scale (Standard)
 Scale
:

Dual Scale (PSI / kg/cm²)

Working Pressure
:
 75% of Full Scale
Max. Pressure
:
 Full Scale Value

Full Scale Value

Working Temperature
:
 -20°C to +60°C
Ambient Temperature
:
 -20°C to +60°C
Connection Size
:
 1/4" BSP (M)
Mounting
:
 Bottom Connection
Enclosure Protection
:
 IP54 (Standard)

Application Media

:
 Liquids and Gases (Non-corrosive)

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
