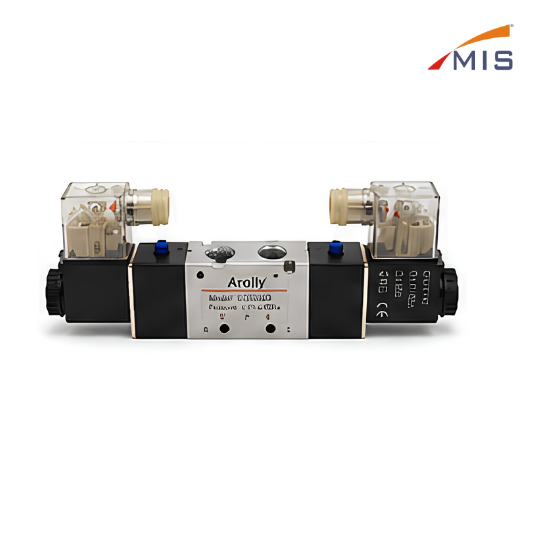

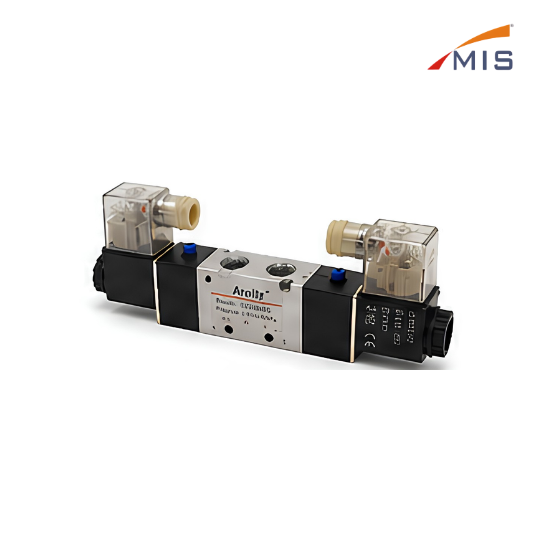

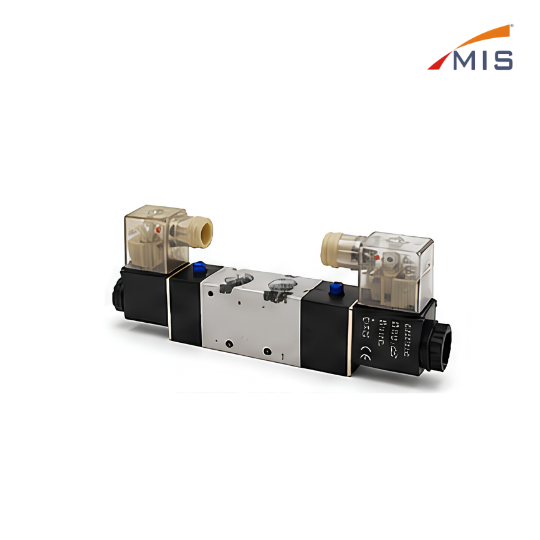

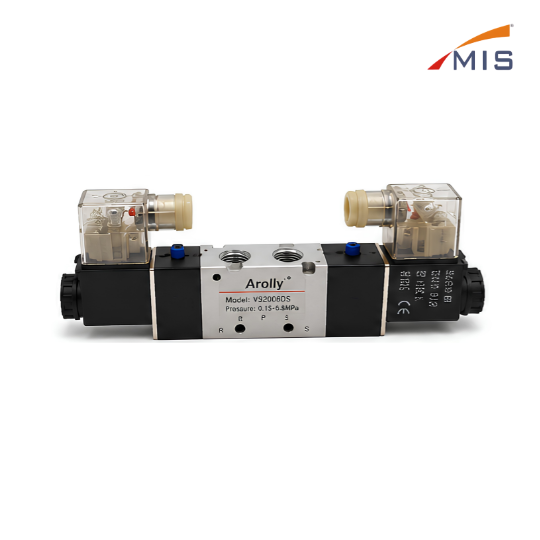

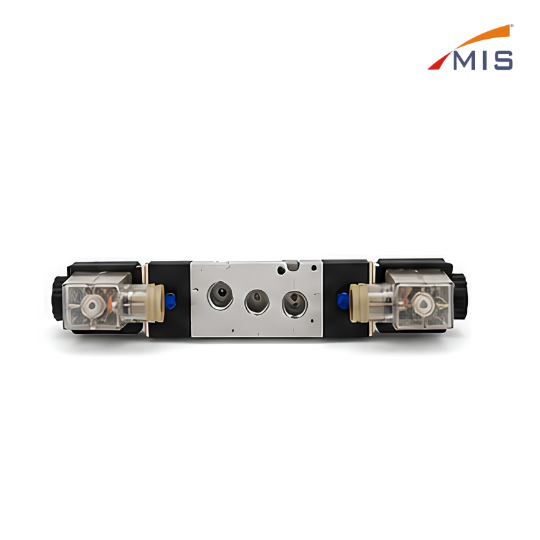

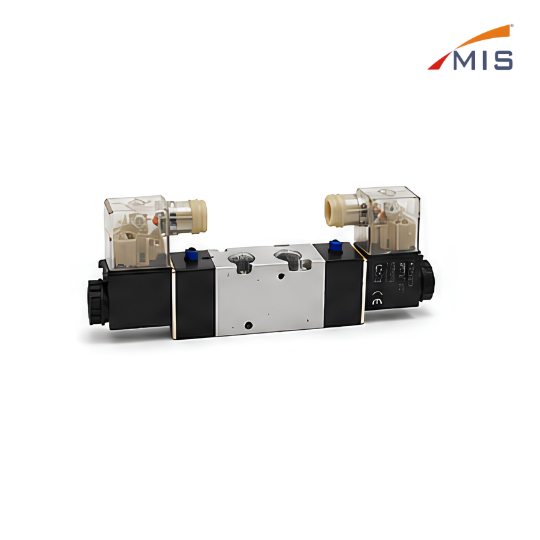

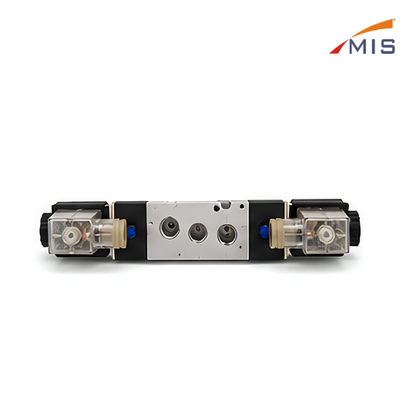

5/2 DOUBLE SOLENOID VALVE WITH AC220V COIL

5/2 DOUBLE SOLENOID VALVE WITH AC220V COIL

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

Namur type double solenoid valve is designed to mount directly on pneumatic actuators with Namur interface. It features standard mounting dimensions, high flow capacity, and reliable switching performance for industrial automation applications.

Specifications

 Model Series
:
4V200 Series (Namur Type)
 Valve Type
:
5/2 Way, Double Solenoid
 Actuation
:
Solenoid / Spring Return
 Port Size
:
1/4", 1/2" BSPP
Working Medium
:
Air (Filtered by 40μm filter element)
Working Pressure
:
0.15 0.8 MPa (21 ~ 114 psi)
Max. Pressure
:
1.0 MPa (145 psi)
Ambient Temperature
:
-5 +50 °C
Coil Type
:
AC220V, 50/60Hz
Power Consumption
:
3.5VA
Insulation Class
:
Class B
Protection Class
:
IP65 (DIN 40050)
Body Material
:
Aluminum Alloy
 Seal Material
:
NBR
Response Time
:
≤ 15 ms
Insulation
:
Namur Interface

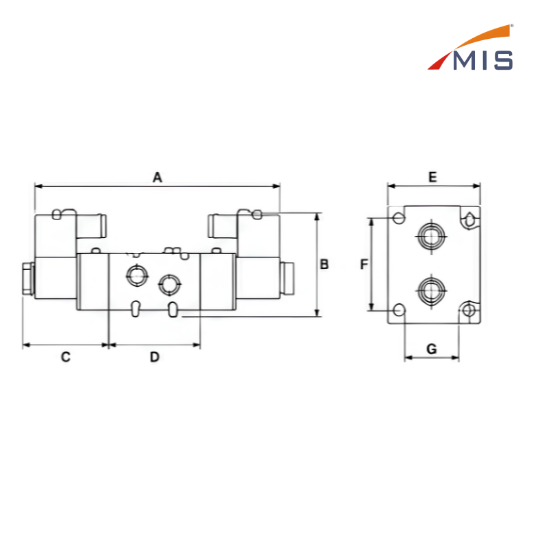

 Weight (Approx.)
:
Refer to table below

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
