QSLH SERIES

QSLH SERIES

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

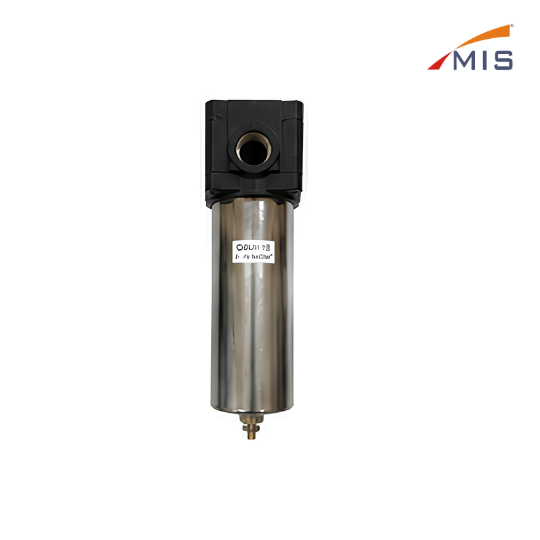

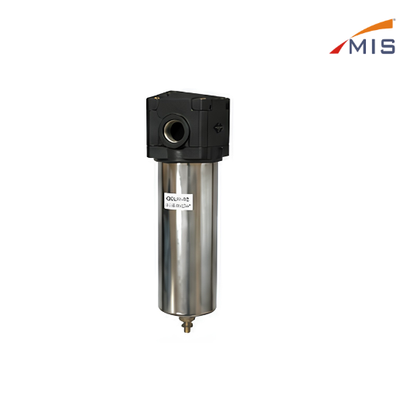

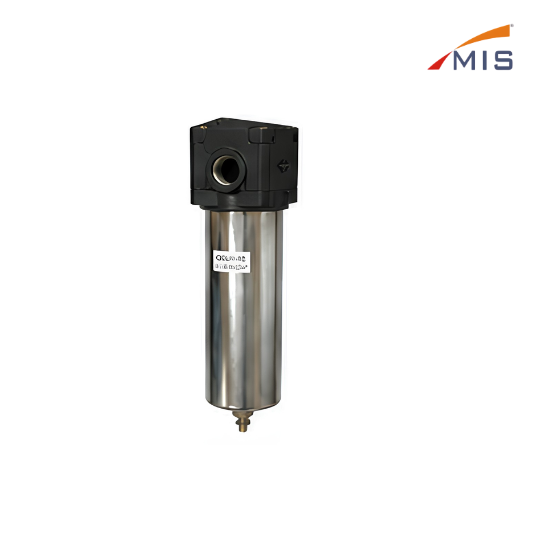

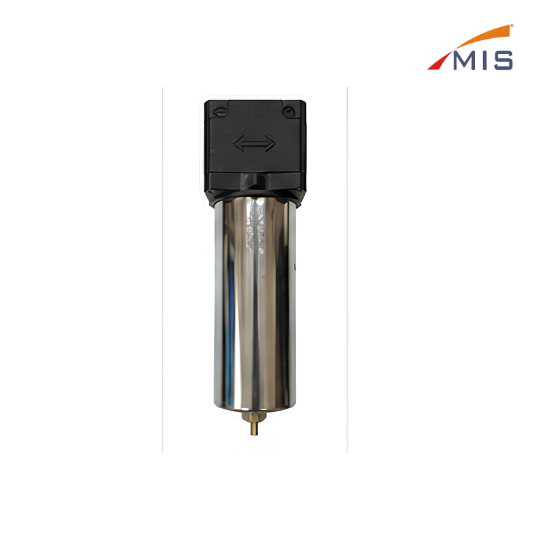

QSLH Series High Pressure Filter is designed for high pressure pneumatic systems up to 35 KG/CM². It efficiently removes dirt, moisture and contaminants to protect equipment and ensure reliable performance in demanding applications.

Specifications

 Model Code
:
 HPF-10
 Series
:
QSLH - 15
 Port Size
:
G 1"
 Filter Type
:
High Pressure Filter
 Pressure Range
:
0 35 KG/CM²
 Max. Operating Pressure
:
35 KG/CM²
 Min. Operating Pressure
:
0.3 KG/CM²
 Max. Operating Temperature
:
80°C
Filtration Rating
:
5 Micron (Standard) 40 Micron (Optional)
 Body Material
:
Stainless Steel/Aluminum

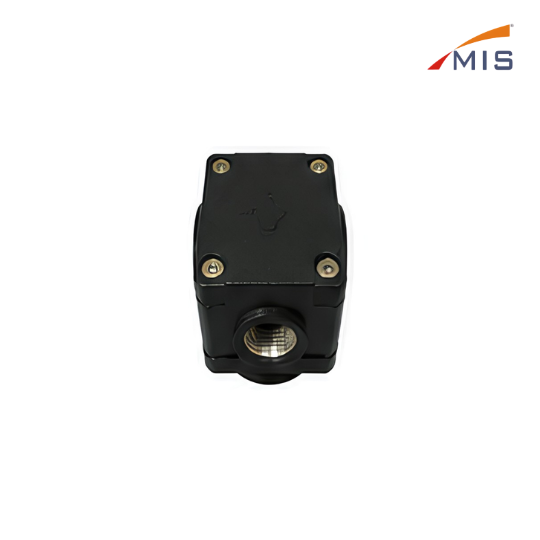

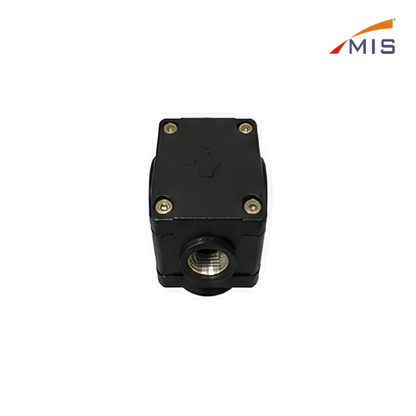

 Head Material
:
Aluminum Die-cast (Black Coated)
 Drain Type
:
Manual (Standard) Auto Drain (Optional)
Mounting Type
:
Bracket Mount / Panel Mount
Weight
:
1.8 Kg (Approx.)
