ROTARY JOINT

ROTARY JOINT

Size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

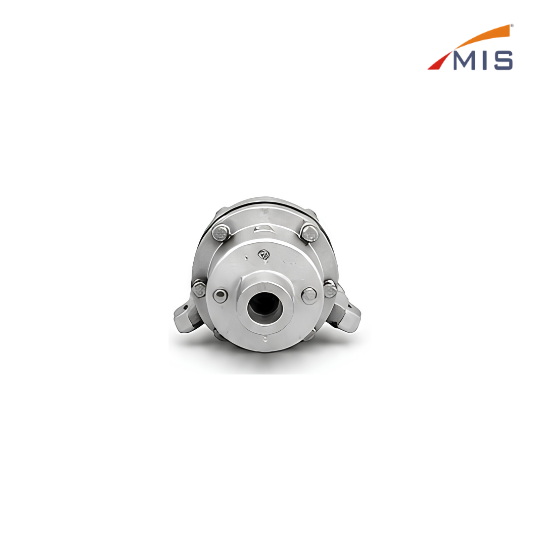

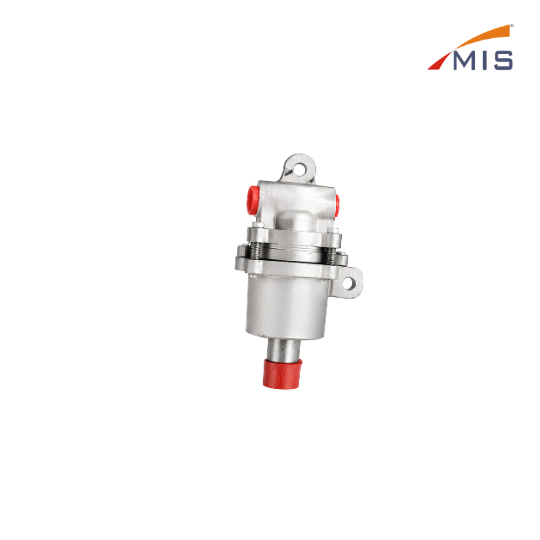

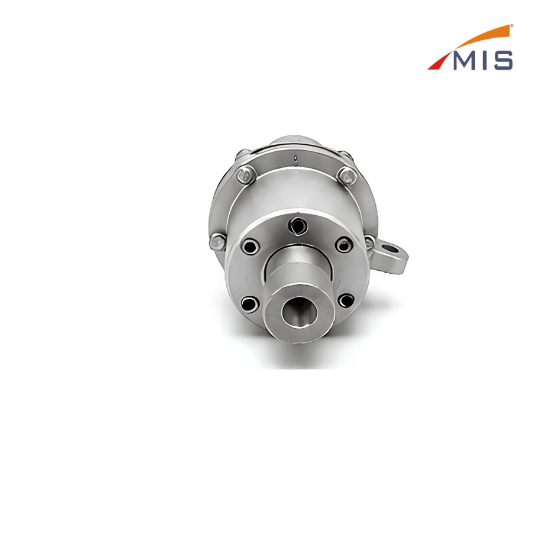

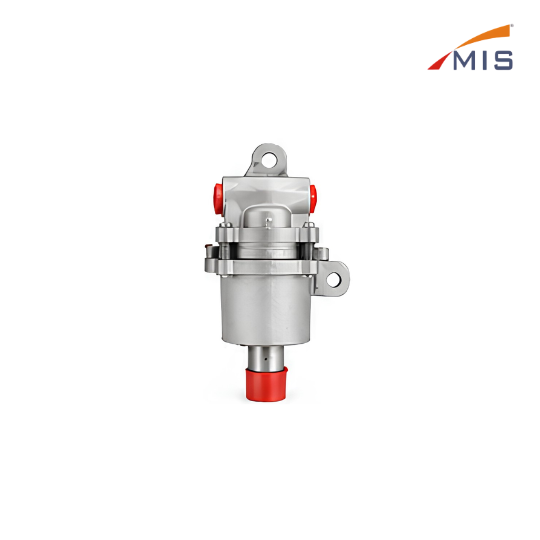

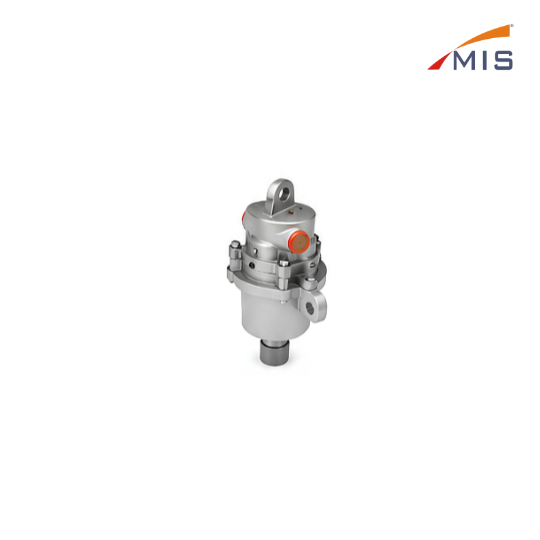

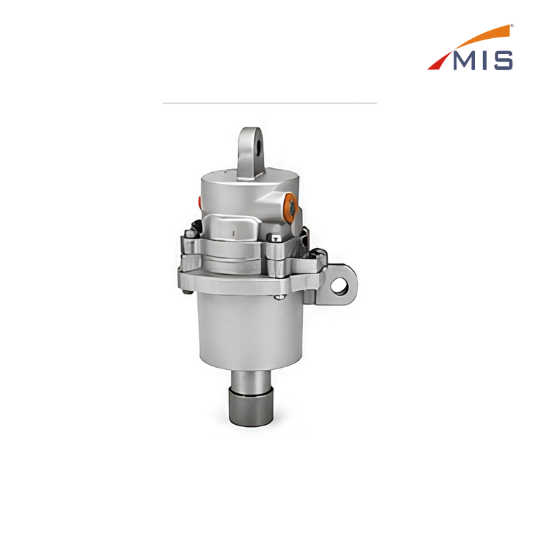

Rotary Joint is a precision engineered device used to transfer fluids, air or steam from a stationary source to a rotating part. It ensures leak-proof performance even under high pressure and speed conditions. Available in standard sizes 1", 1 1/4" and 1 1/2" inch with BSP / NPT connections. Ideal for industrial, mechanical and automation applications.

Specifications

 Body Material
:
Cast Iron / Steel
 Shaft Material
:
Stainless Steel (SS 304 / SS 316)
 Seal Material
:
Carbon Graphite / PTFE
 Connection Type
:
BSP/NPT (Female)
Working Pressure
:
Up to 150 PSI (10 Bar)
Temperature Range
:
-20°C to +120°C
 Rotation Speed
:
Up to 1000 RPM
 Media
:
Water, Air, Oil, Steam
 Size Available
:
1", 1 1/4", 1 1/2" Inch
Mounting Type
:
Flange / Foot / Lug Type
Application
:
Industrial & Mechanical Use

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
