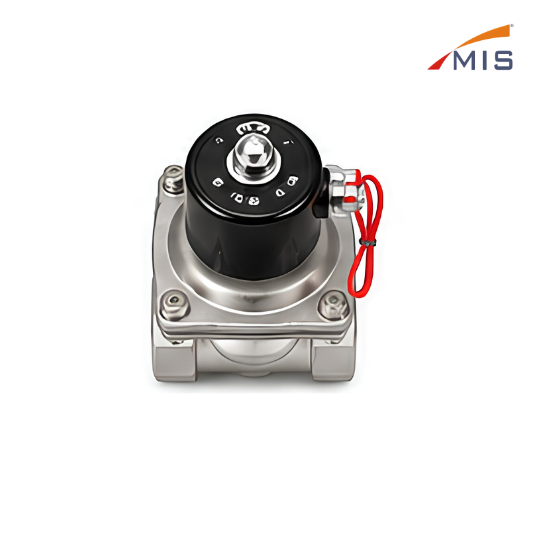

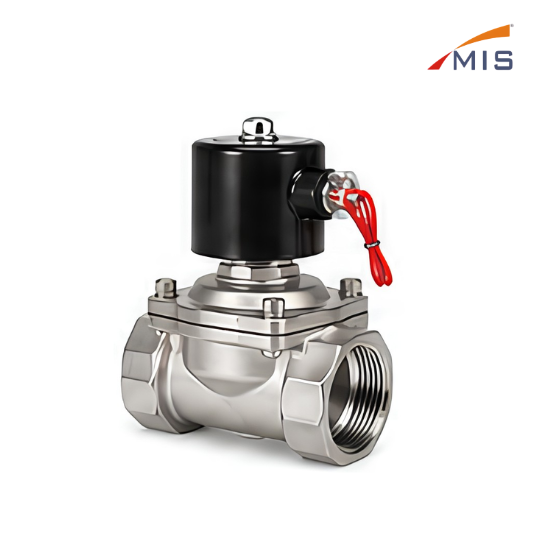

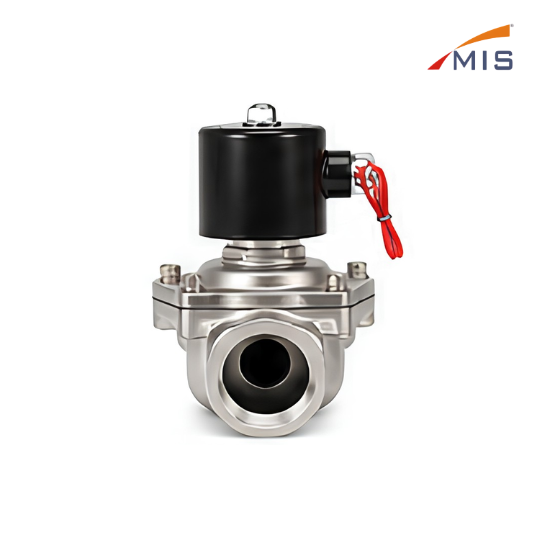

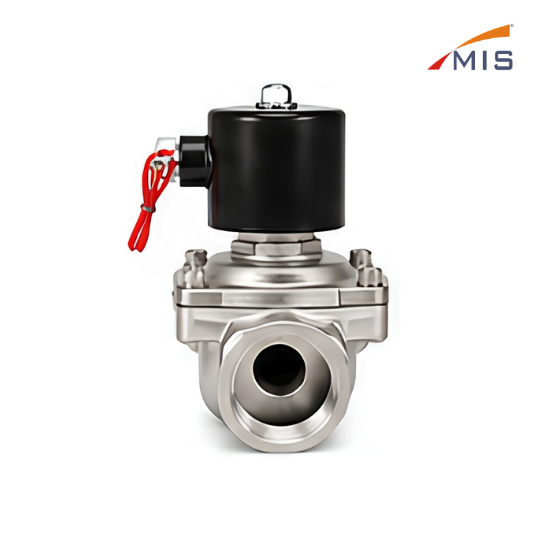

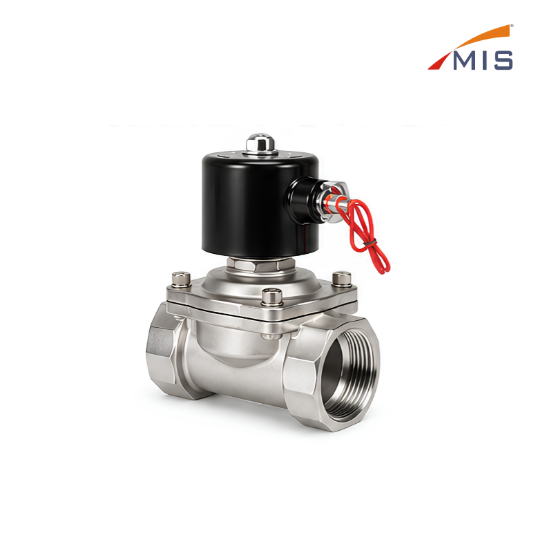

S2012D Series is a 2/2 way direct acting diaphragm type solenoid valve designed specifically for steam applications. The valve body. is made of high quality stainless steel for excellent corrosion resistance and durability. It operates with a direct acting mechanism, ensuring fast response, reliable performance and long service life.
Specifications
Valve Type
:
2/2 Way Direct Acting, Normally Closed
Operation
:
Direct Acting
Actuation
:
Solenoid Operated
Seal/Diaphragm
:
PTFE
Media
:
Steam
Body Material
:
Stainless Steel (SS 304)
Port Size
:
1/2" 2"
Orifice Size
:
15-50 mm
Operating Pressure
:
0-10 kg/cm²
Max. Pressure
:
15 kg/cm²
Temperature Range
:
5 180 °C
Coil Insulation Class
:
Class H
Voltage Options
:
AC 220V 50/60Hz, AC 110V 50/60Hz DC 24V (Optional)
