SERVO COUPLE

Name: SERVO COUPLE
Brand: mittalindustrialstore
Availability: InStock

Have questions about orders, wholesale pricing, or bulk inquiries?

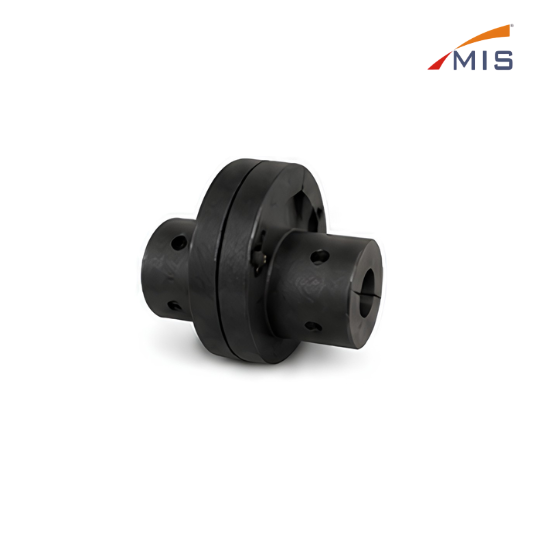

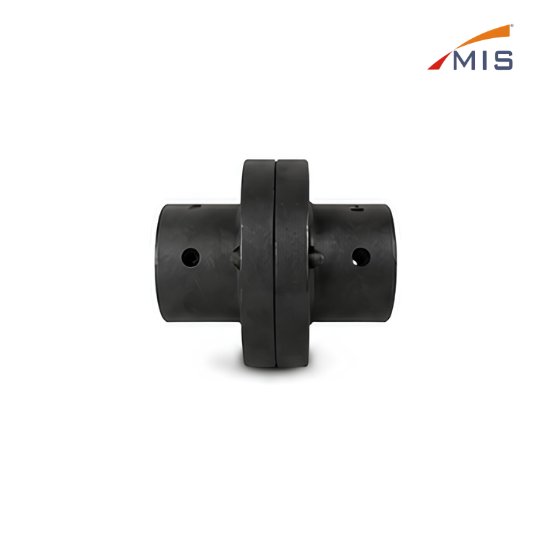

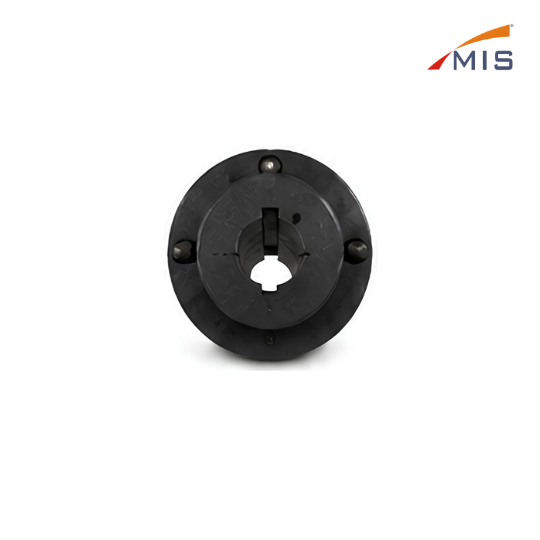

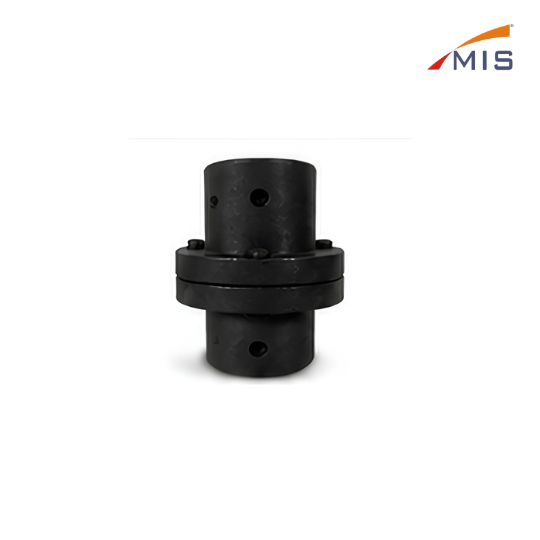

Servo Couple is a high precision rigid coupling used to connect servo motor shaft with

gearbox, ball screw, or load. It ensures zero backlash, high torsional stiffness and

excellent torque transmission. Made from high quality mild steel / EN8 and machined

to exacting standards for reliable performance in servo automation systems. Available in bore sizes 25 mm and 28 mm.

Also Known As

Servo Motor Coupling/ Flexible Coupling

Heat Treatment

Yes (As per requirement)

Bore Sizes

25 mm, 28 mm

Parallel Misalignment

±0.05 mm

Angular Misalignment

±1°

Max Torque

High (As per size & application)

Max Speed

Up to 5000 RPM

Operating Temperature

-20°C to +120°C

Surface Finish

Black Oxide

Application

Servo Motors, Precision Drives

Function

Power Transmission

Feature

High Strength, Zero Backlash.

Customization

Available on Request

Check specifications before purchase.

No return after use/installation.

Report damage within 48 hours.

Shipping charges extra.

Delivery time may vary
