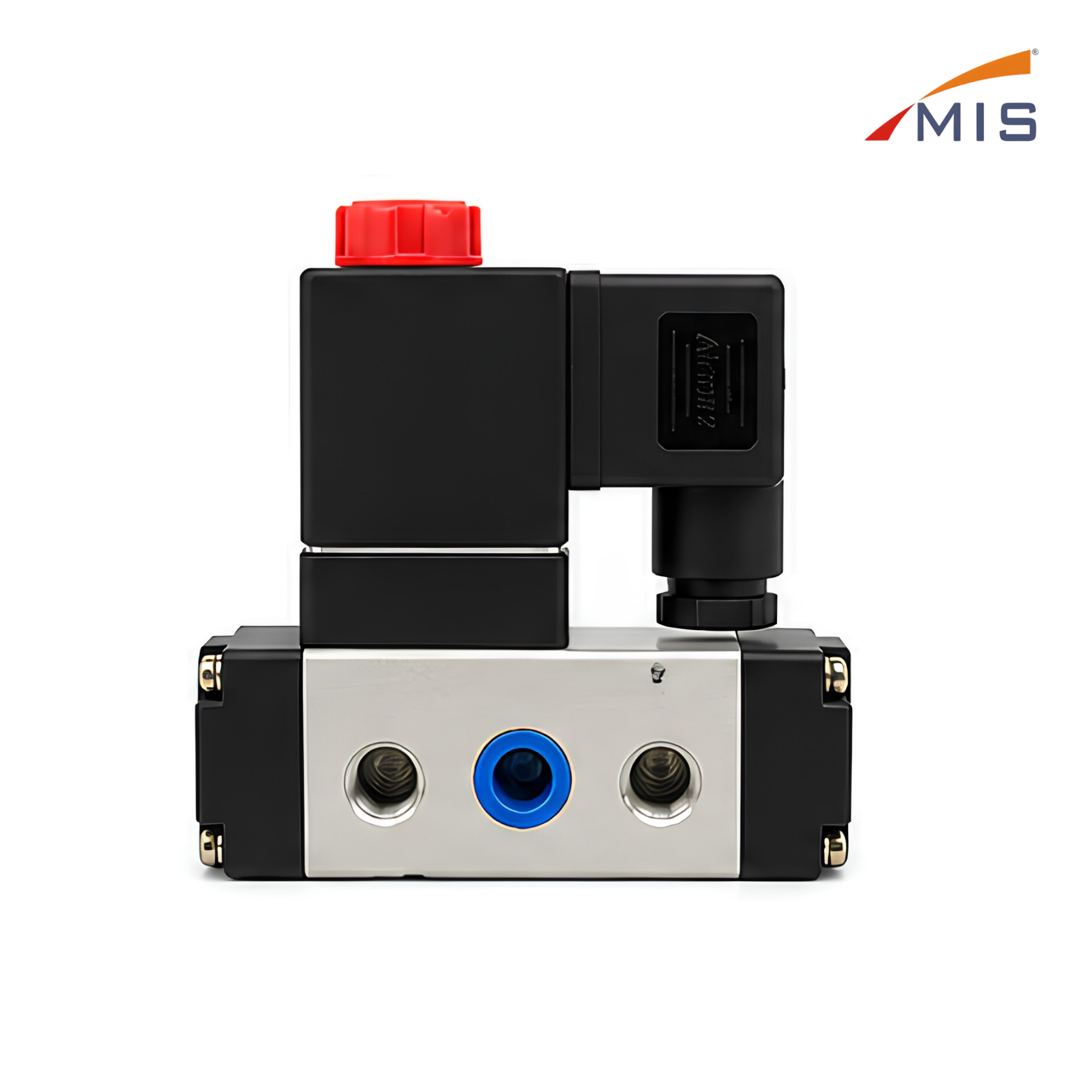

Solenoid Valve is an electrically operated directional control valve used in pneumatic systems to start, stop or change the direction of compressed air flow. It is widely used in automation, machinery and industrial applications for reliable and safe operation.
Material
:
Aluminum Alloy Body with Copper Coil & Plastic Housing
Type
:
Electrically Operated Solenoid Valve
Size (Port Size)
:
1/8", 1/4", 3/8", 1/2" (Standard Sizes)
Category
:
Pneumatic Control Valves
Working Medium
:
Compressed Air
Working Pressure
:
0 – 10 Bar (0 – 145 PSI)
Temperature Range
:
-10°C to +60°C
Voltage
:
AC 230V / AC 110V / DC 24V
Power Consumption
:
AC: 5.5 VA / DC: 4.8 W
Connection Type
:
DIN Plug Connector
Actuation
:
Electrically Operated
Mounting Type
:
Body Mount
Body Material
:
Aluminum Alloy
Fast Switching
Accurate Control
Durable Coil
Long Life
Compact Design
Easy Installation
Energy Efficient
Stable Performance
Pneumatic Systems
