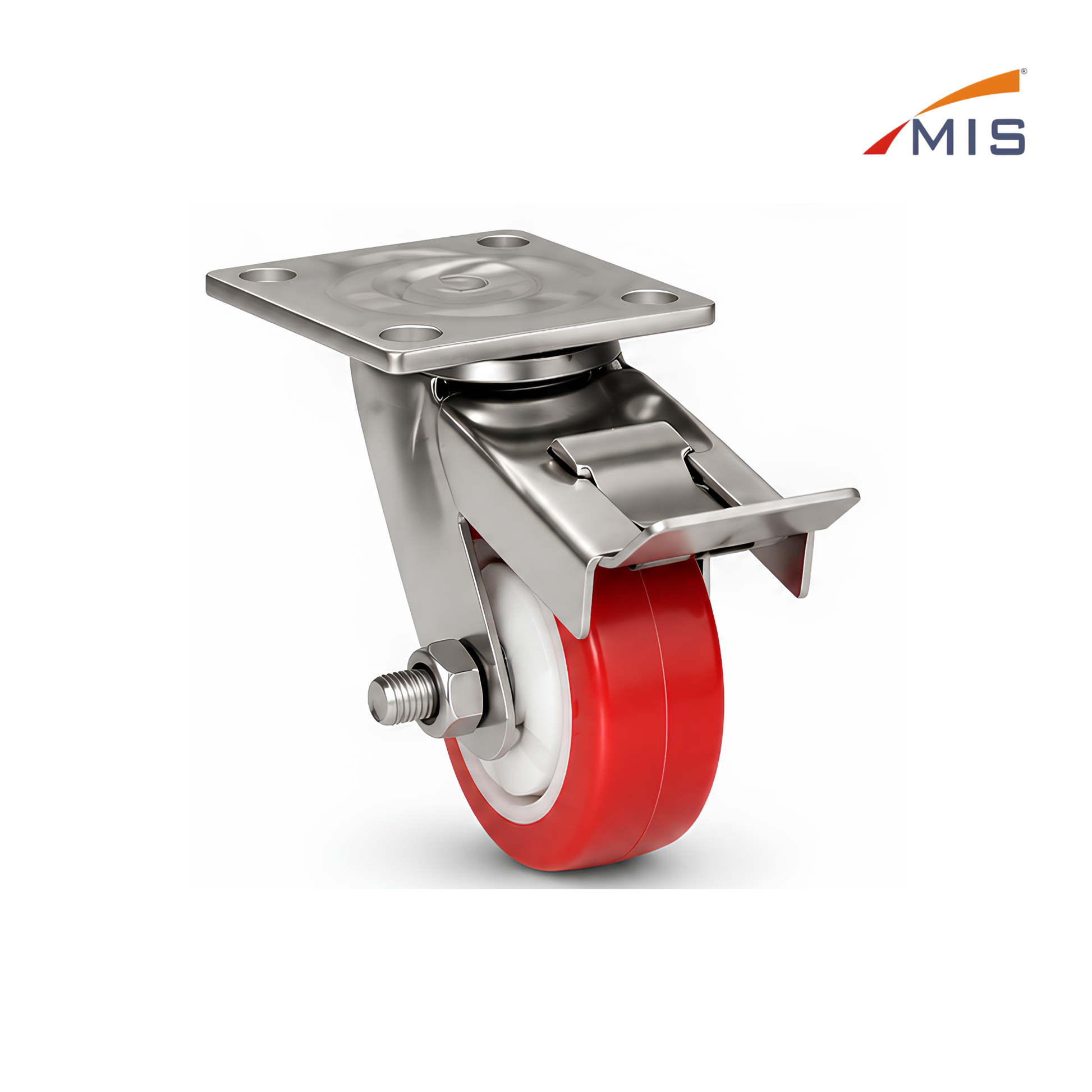

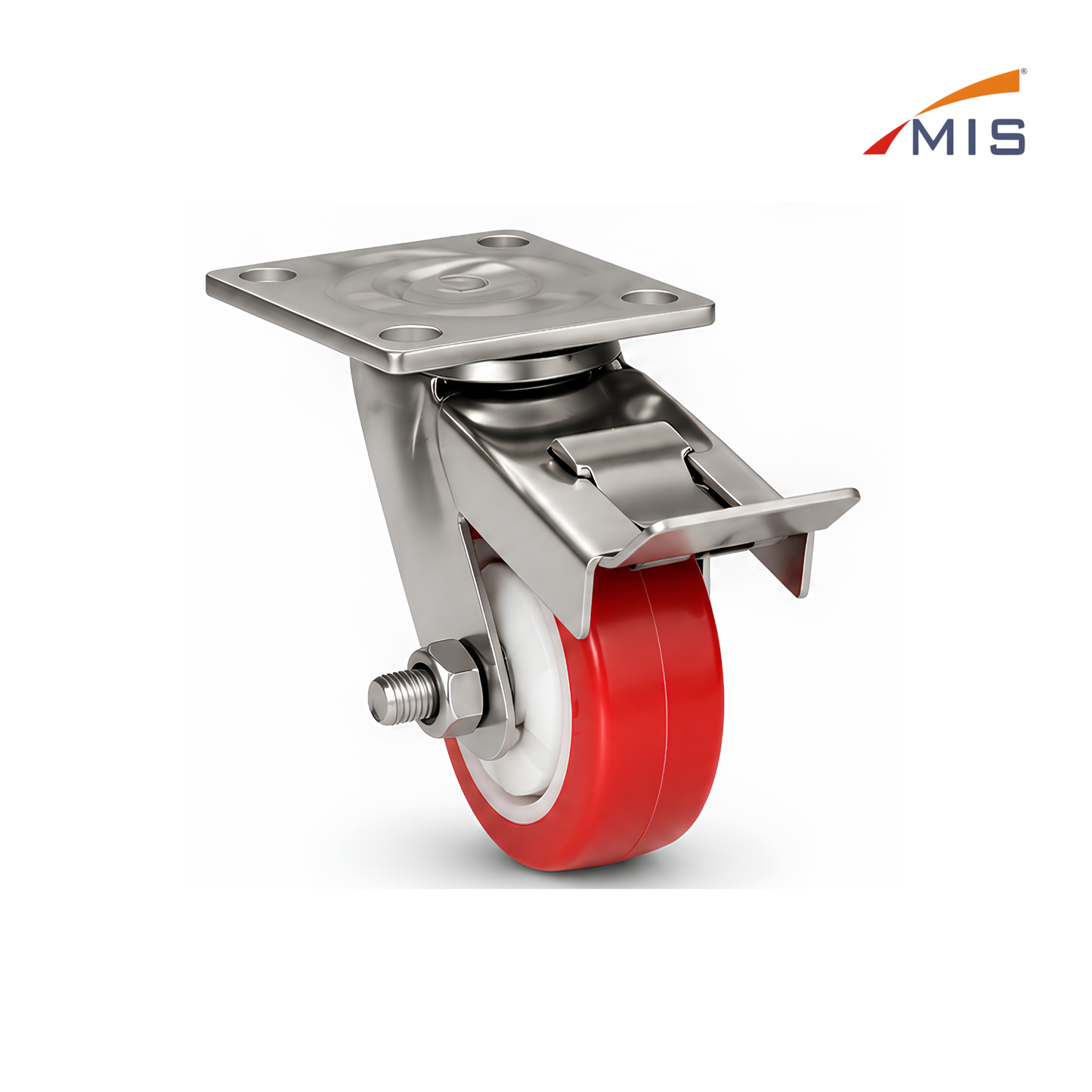

SS (304) BRAKE CASTER WHEEL

Size All size

Have questions about orders, wholesale pricing, or bulk inquiries?

The SS (304) Brake Caster Wheel is manufactured using premium SS 304 stainless steel for superior corrosion resistance, durability, and long-lasting performance in demanding industrial and hygienic environments. Designed with a polyurethane (PU) wheel and top lock brake system, this caster ensures smooth, quiet rolling along with secure stopping and stable movement. Its heavy-duty construction and high load-bearing capacity make it suitable for industrial equipment, clean rooms, marine applications, food processing units, hospital equipment, and material handling systems. The polished SS 304 finish provides excellent resistance against rust, moisture, and chemicals, while the top plate mounting offers strong and reliable installation for continuous industrial use.

Specifications

Material

Stainless Steel (SS 304)

Wheel Material

Polyurethane (PU)

Wheel Type

Swivel with Top Lock Brake

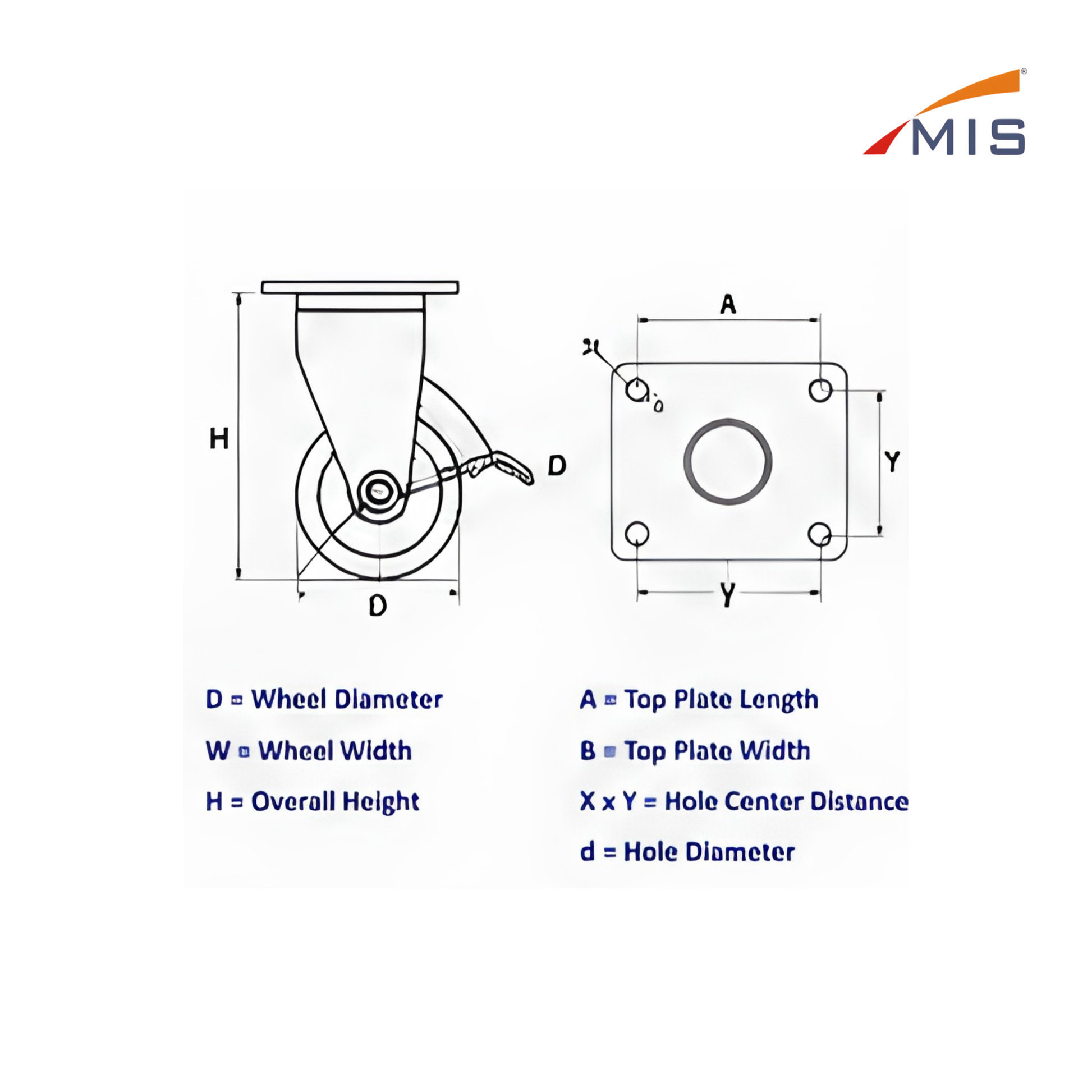

Available Sizes (mm)

50x25mm (2x1 Inch) 50x25mm (2x1 Inch)

75x32mm (3x1.1/4 Inch) 100x32mm (4x1.1/4 Inch) 100x50mm (4x2 Inch) 150x50mm (6x2 Inch)

Steel Plate Thickness

4mm (for 50mm to 100mm) 8mm (for 150mm)

Load Capacity (per 4 pcs):

150 Kg | 350 Kg | 400 Kg | 450 Kg | 800 Kg

Bearing Type

Mounting Type

Top Plate

Brake Type

Top Lock Brake

Finish

Polished SS 304 (Corrosion Resistant)

Application

Trolleys, Carts, Food Industry, Medical Equipment, Clean Room, Marine, etc.

Terms & Conditions

Check specifications before purchase.

No return after use/installation.

Report damage within 48 hours.

Shipping charges extra.

Delivery time may vary

View full details
