SS FLEP NRV

SS FLEP NRV

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

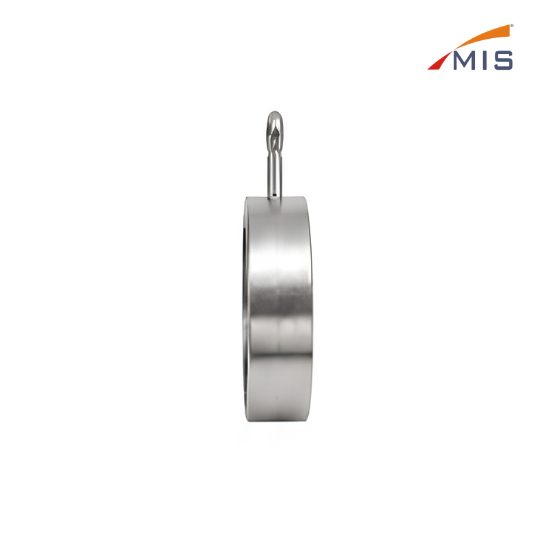

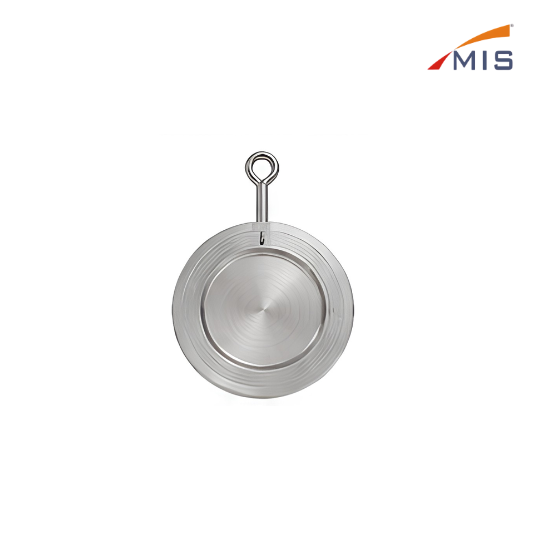

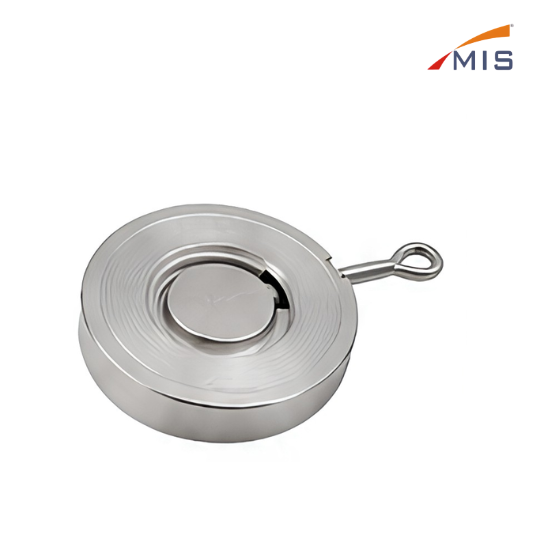

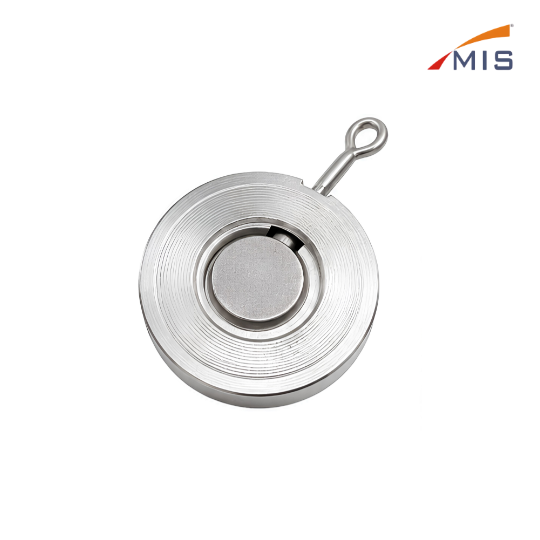

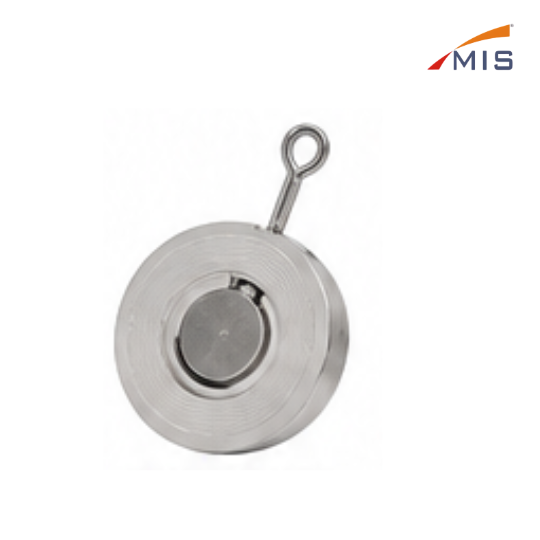

SS FLEP NRV (Flap Non Return Valve) is a wafer type check valve made from high quality

stainless steel. It allows flow in one direction and prevents reverse flow automatically.

The spring assisted flap ensures quick closing and zero leakage performance. Available in size 1 inch to 6 inch.

Specifications

 Material
:
Stainless Steel (SS 304 / SS 316)
Туре
:
Flap/Wafer Type NRV
Design
:
Wafer Pattern
Operation
:
Swing (Spring Assisted)
Size Range
:
1" to 6" (25 mm to 150 mm)
Pressure Rating
:
PN 16 (20 Kg/cm²)
Temperature Range
:
-20°C to 220°C
Seat Type
:
Integrated Metal Seat
Leakage Standard
:
API 598 (Zero Leakage)
End Connection
:
Wafer Type
 Application
:
Water, Oil, Steam, Chemicals, Air, Gas

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
