SS HORIZONTAL NRV

SS HORIZONTAL NRV

size
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

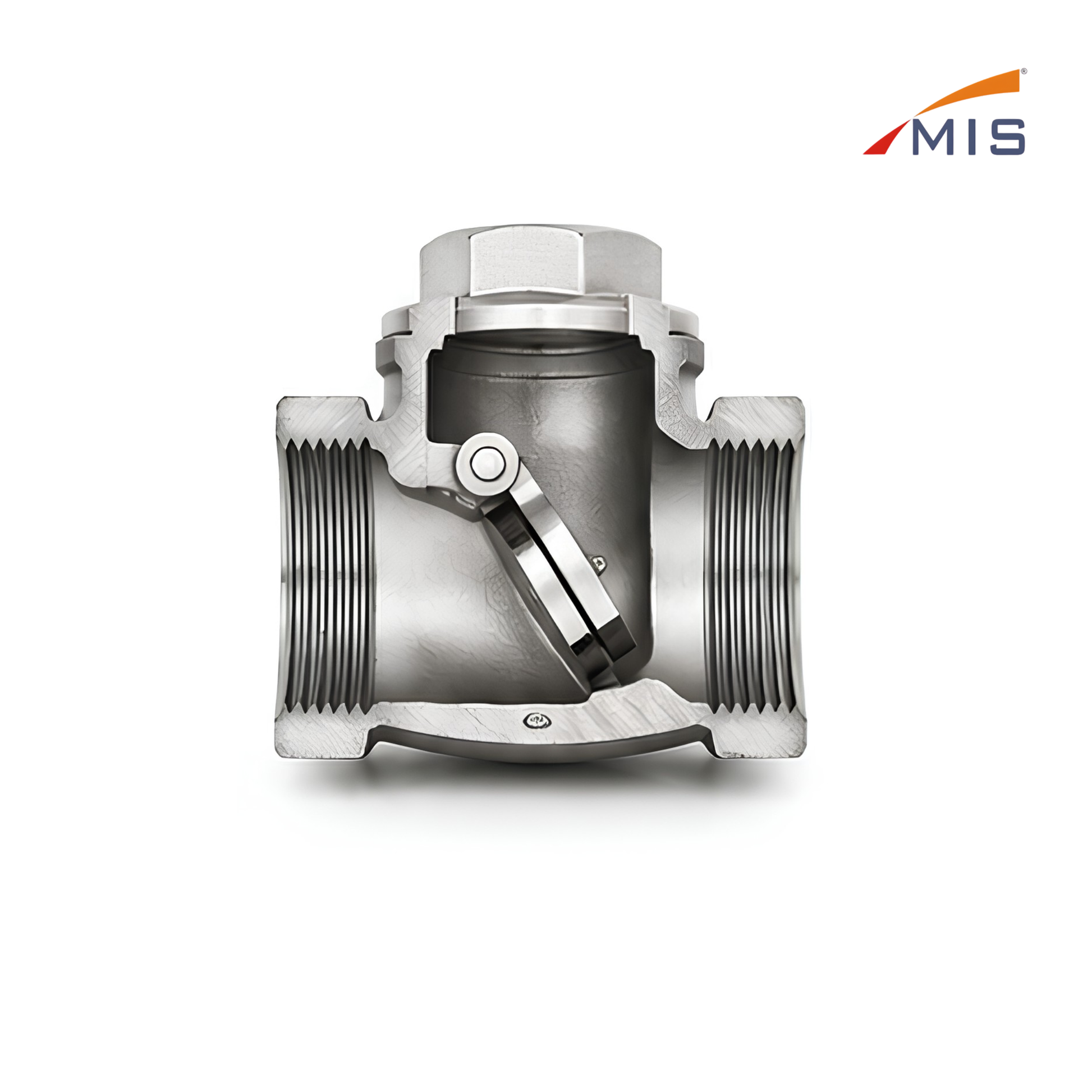

SS Horizontal NRV is a one way valve that allows fluid to flow in one direction and prevents reverse flow in horizontal piping systems. It is spring less, swing type disc design with metal to metal seating for tight shut off. It is spring less, swing type disc design with metal to metal seating for tight shut off.

.

Specifications

Product Name

:
SS Horizontal NRV (Non Return Valve
Body Material
:
Stainless Steel CF8/ CF8M
Type
:
Horizontal Check Valve (Swing Type)
Disc Material
:
Stainless Steel CF8 / CF8M

Seat


:
Metal to Metal
Size (Connection)
:

1/2° (15 NB) to 2" (50 NB)

End Connection
:
 Screwed (BSP / NPT)
Rating
:
 200# (PN 16)
Maximum Working Pressure
:
16 Bar (232 PSI)
Maximum Worlding Temperature
:
200°C
Category
:
Non Return Valve
IBR Approved
:

Water, Steam, Oil, Air & Other Industrial Fluids

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
