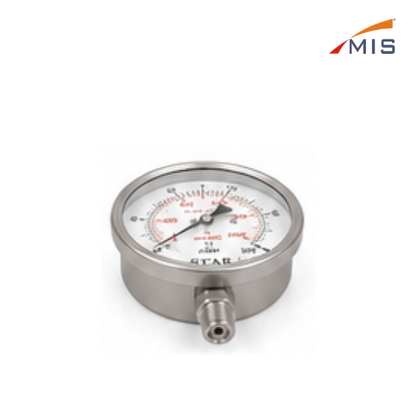

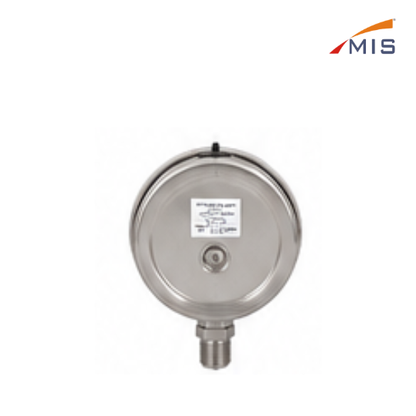

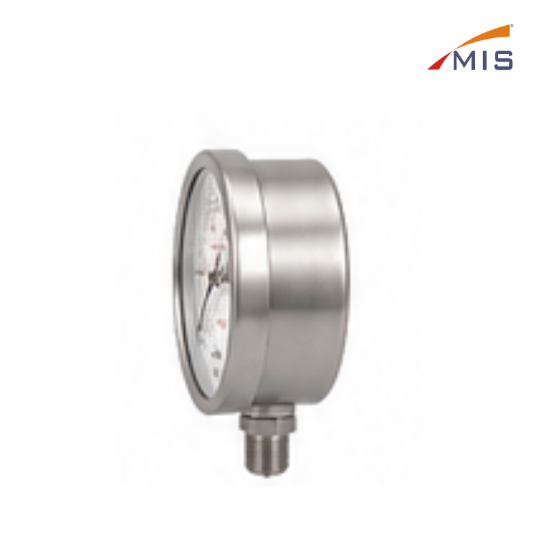

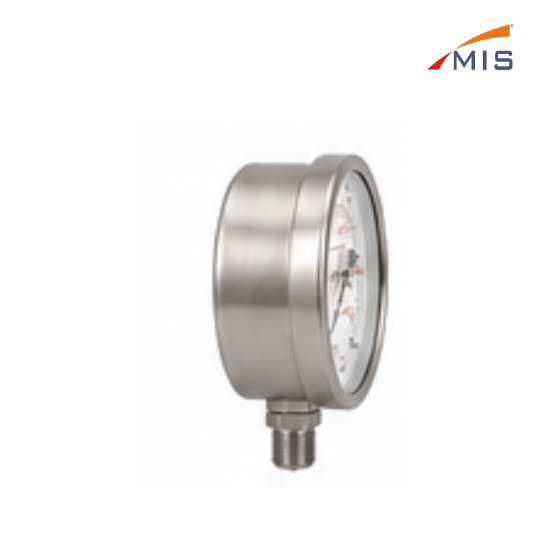

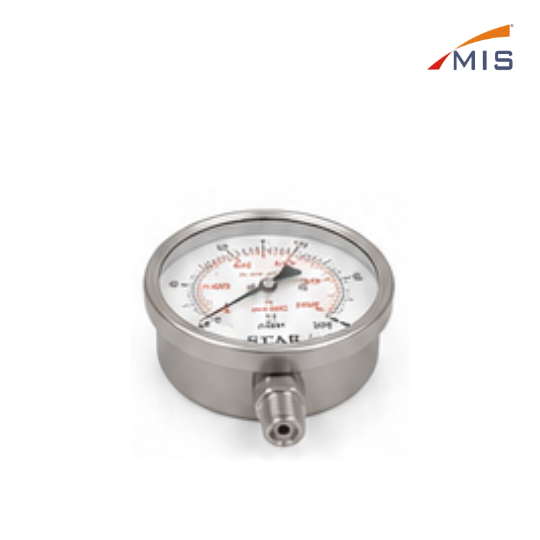

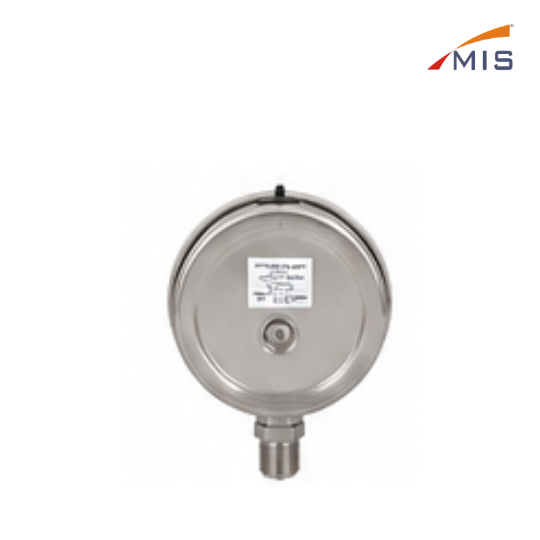

SS MC WC PRESSURE GAUGE

SS MC WC PRESSURE GAUGE

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

SS MC WC Pressure Gauge is a highly accurate and durable instrument used for measuring low pressure in mbar and mm WC.0 It is widely used in HVAC, clean rooms, pharmaceutical, and low pressure industrial applications. The gauge is built with SS 316 Capsule Sensing Element and Stainless Steel Case for excellent corrosion resistance and long service life.

Specifications

 TYPE
:
 Bourdon Type

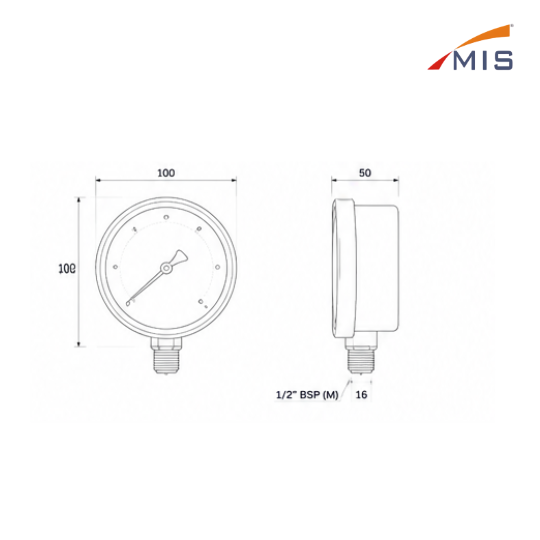

 Size
:
100 mm
 Pressure Range
:
 0 - 200 mbar

0 2000 mm WC

  Accuracy
:
±2% F.S.D.
  Dial
:

White Aluminium

Black & Red Marking

Pointer
:
 Aluminium Black

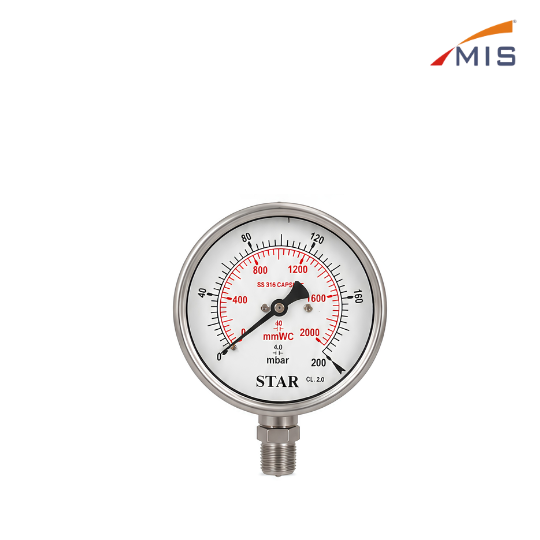

Scale
:
 Dual Scale

.Outer Scale: mbar

Inner Scale: mm WC

Sensing Element
:
 SS 316 Capsule
Case
:
 SS 304
Bezel
:
 SS 304 (Bayonet Type)

Window

:
 Toughened Glass
Connection
:
 1/2" BSP (M)
Mounting
:
 Bottom Connection
Protection
:
 IP 65
Operating Temp.
:
 -20°C to +60°C
Over Pressure Limit
:
 130% of F.S.D.

Application

:
Low Pressure (Gas/Air)

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
