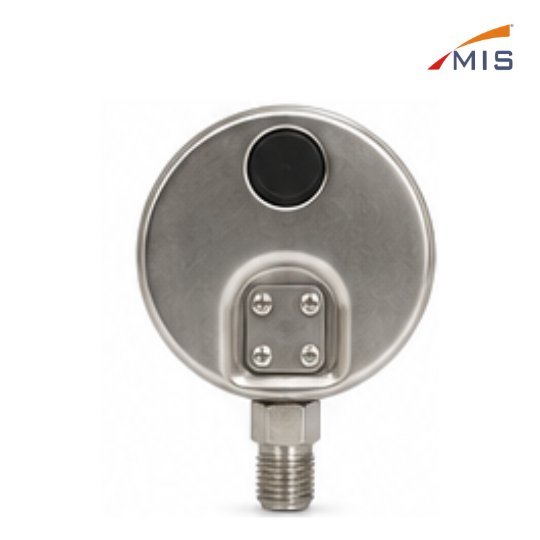

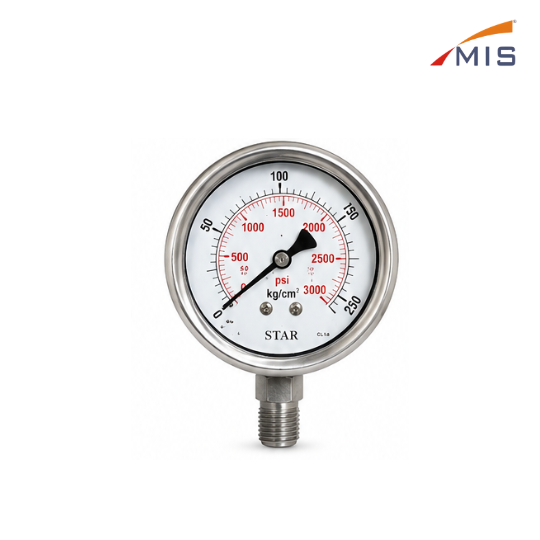

SS PRESSURE GAUGE

SS PRESSURE GAUGE

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

SS Pressure Gauge (Bourdon Tube Type) is a reliable and accurate instrument used to measure the pressure of liquids and gases in a wide range of industrial applications. It is built with stainless steel case and wetted parts for excellent corrosion resistance, durability and long service life.

Specifications

 Dial Size
:
 100 mm
 Accuracy
:
± 1.6% F.S.D.
 Mounting Type
:
Bottom Connection
 Connection Size
:
1/2" BSP (M)
  Material of Wetted Parts
:

SS 316

 Case Material
:
 SS 304
Measuring Range
:
 -1 to 0 kg/cm² to 0 to 250 kg/cm²

(Others available on request)

Scale
:
Dual Scale (kg/cm² & psi)
Working Pressure
:
Steady: 75% of Full Scale
Operating Temperature
:
 -20°C to 60°C (Dry)

-10°C to 60°C (Filled)

Movement

:
SS 304
Window
:
Shatter Proof Glass/Polycarbonate
Fill Medium (Optional)
:
Glycerin
