SS VACUUM PRESSURE GAUGE

SS VACUUM PRESSURE GAUGE

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

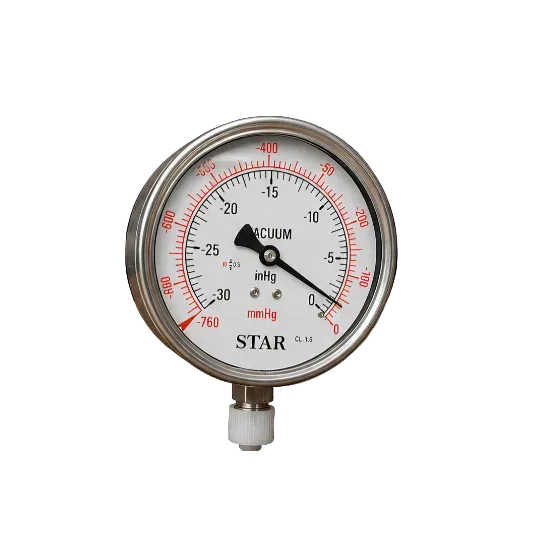

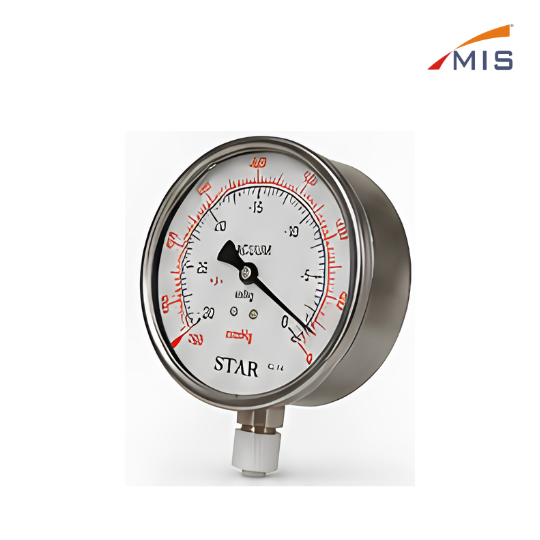

SS Vacuum Pressure Gauge is a precision measuring instrument designed to measure both vacuum and positive pressure of gases and liquids. It is widely used in industrial applications where accurate measurement and corrosion resistance are critical.

The gauge operates on the proven Bourdon tube principle and features a stainless steel case and wetted parts for excellent durability and long service life.

Specifications

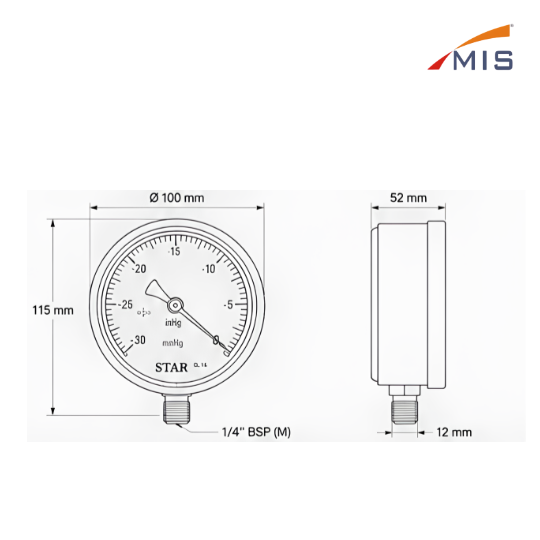

 Nominal Size
:
 4 Inch (100 mm)
 Dial Size
:
100 mm
 Measurement Range
:
 -760 mmHg to 0 to 10 kg/cm²

(-30 inHg to 0 to 150 PSI)

 Accuracy
:
±1.6% of Full Scale (Standard)
 Scale
:

Dual Scale (inHg / mmHg & PSI / kg/cm²)

Working Pressure
:
 75% of Full Scale
Max. Pressure
:
 Full Scale Value
Working Temperature
:
 -20°C to +60°C
Ambient Temperature
:
 -20°C to +60°C

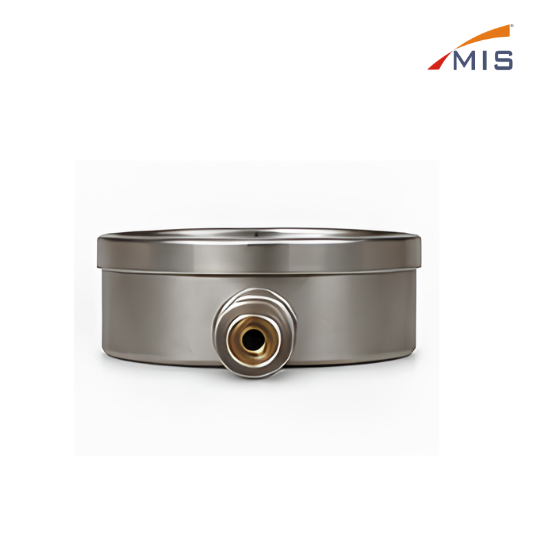

Connection Size
:
 1/4" BSP (M)

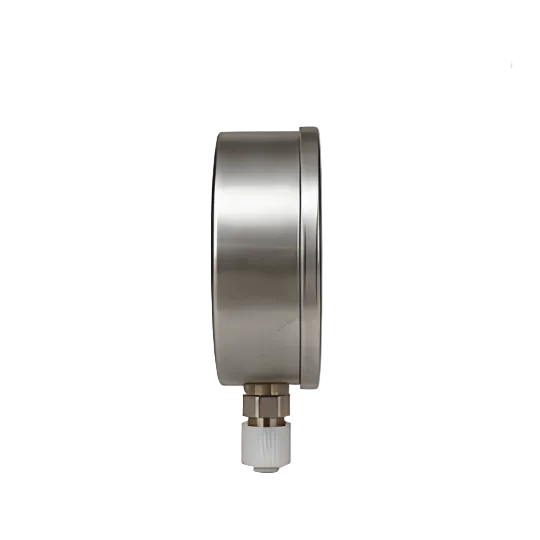

Mounting
:
 Bottom Connection
Enclosure Protection
:
 IP65 (Standard)
Application Media
:
 Gases and Liquids (Non-corrosive)

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
