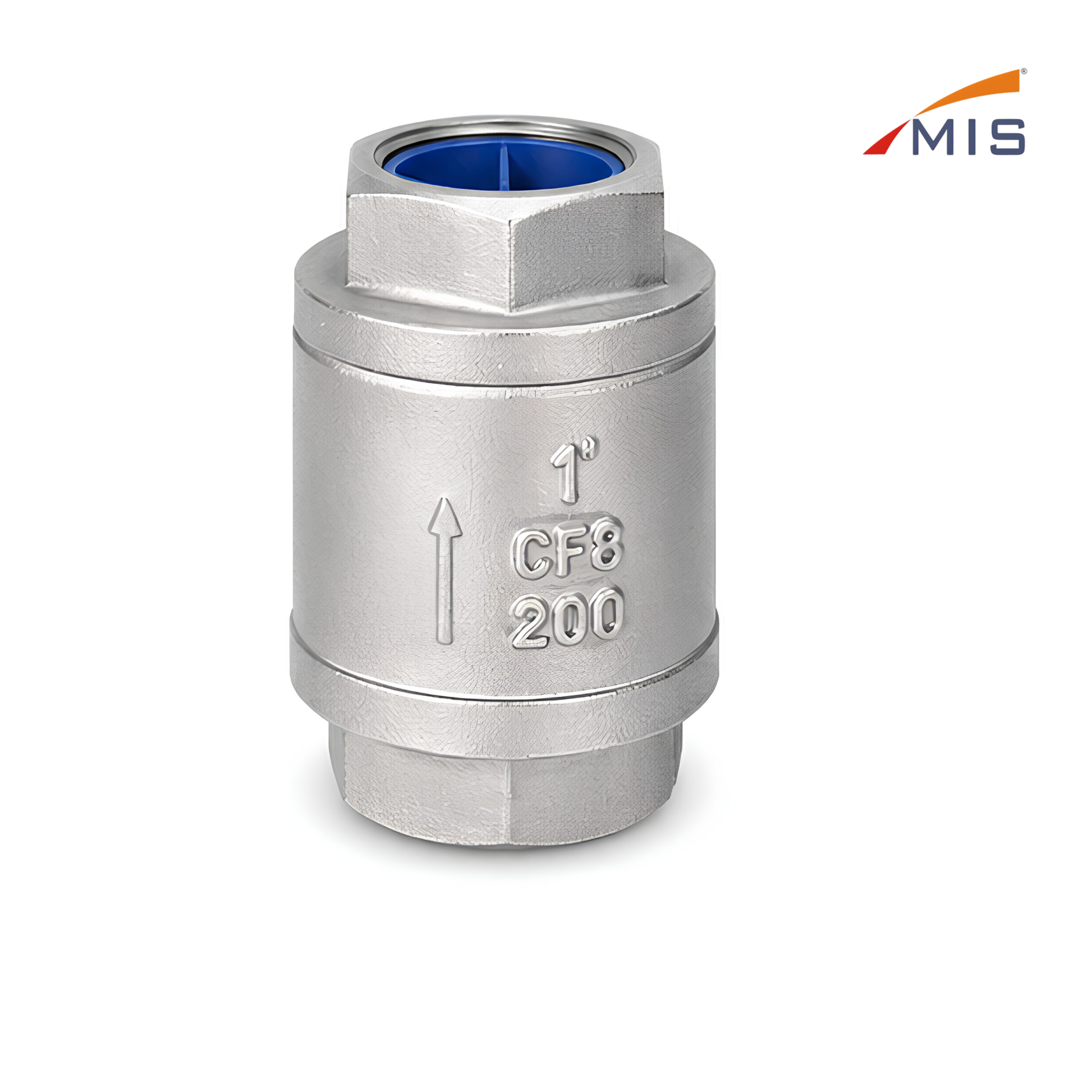

SS VERTICAL NRV

Size 1/2" 3/4" 1 1/2" 1" 1 1/4" 2"

Have questions about orders, wholesale pricing, or bulk inquiries?

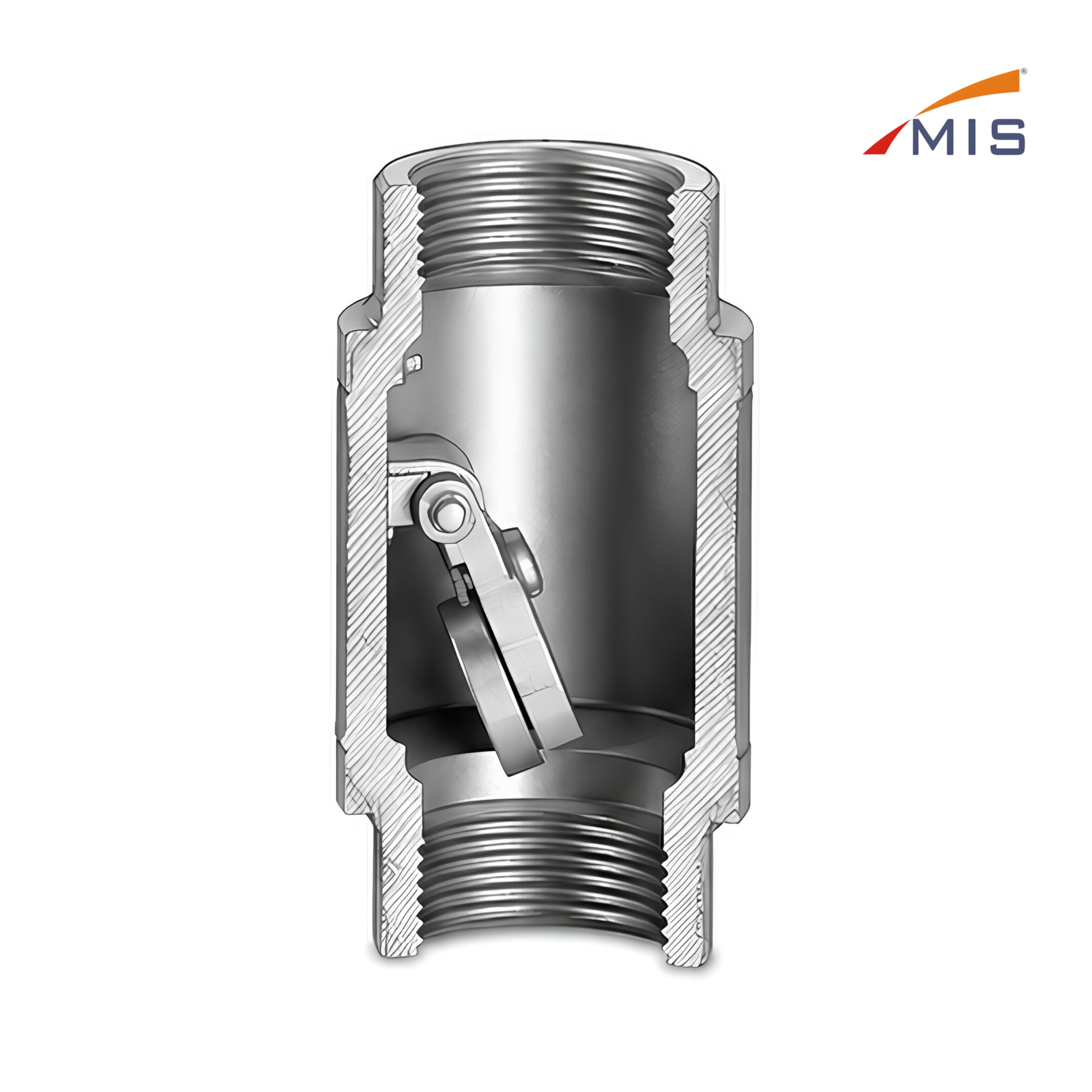

SS Vertical NRV is a one way valve that allows fluid to flow in one direction and prevents

reverse flow in vertical piping systems. It is spring less, swing type disc design with

metal to metal seating for tight shut off.

Type

Vertical Check Valve (Swing Type)

Body Material

Stainless Steel CF8 / CF8M

Disc Material

Stainless Steel CF8 / CF8M

Seat

Metal to Metal

Size (Connection)

1/2" (15 NB) to 2" (50 NB)

End Connection

Screwed (BSP/NPT)

Rating

200# (PN 16)

Maximum Working Pressure

16 Bar (232 PSI)

Maximum Working Temperature

200°C

Standard

IBR Approved

Installation

Vertical (Upward Flow) Only
