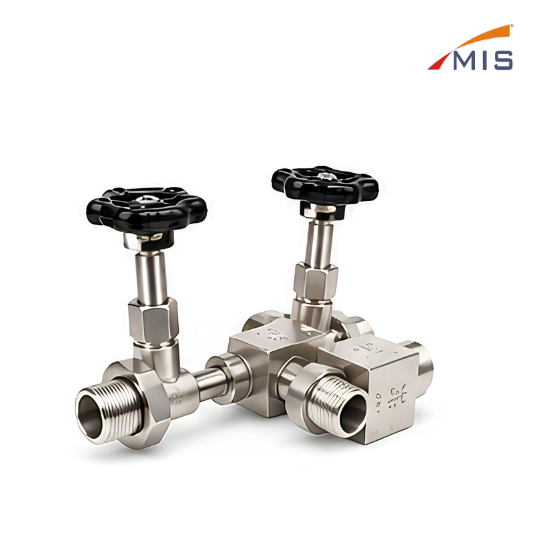

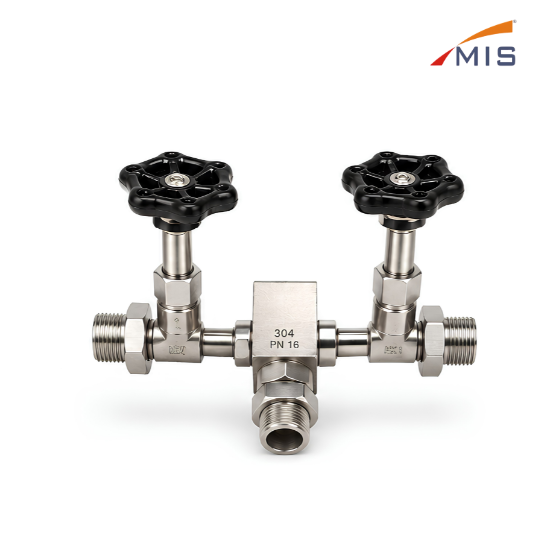

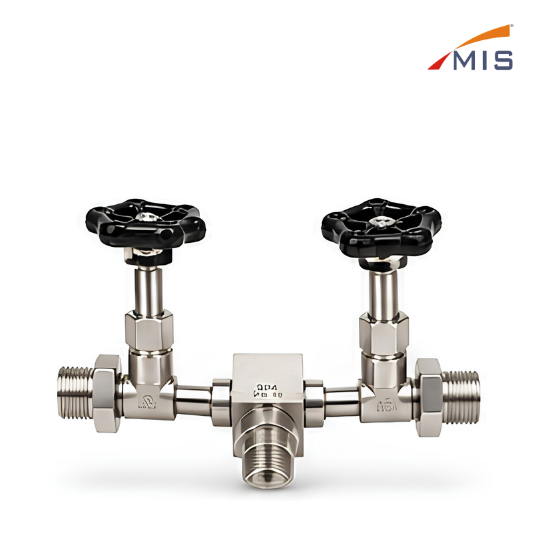

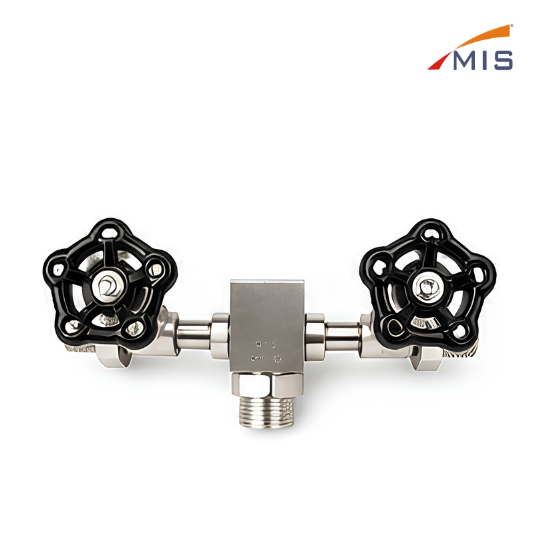

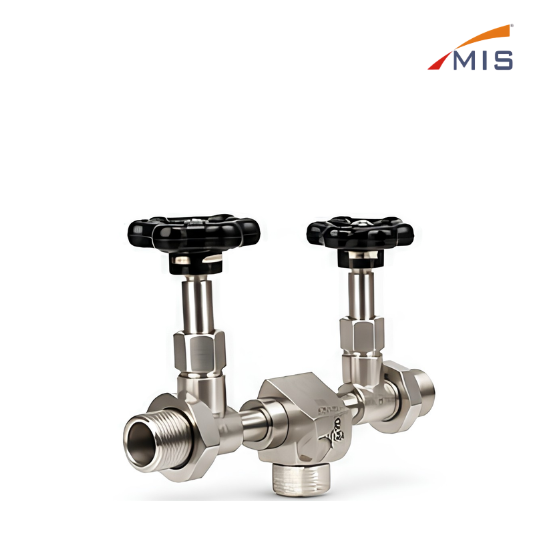

SS WATER LEVEL GAUGE SET

SS WATER LEVEL GAUGE SET

Size
Have questions about orders, wholesale pricing, or bulk inquiries?

SS Water Level Gauge Set is used to control and monitor the water level in boilers and tanks. Manufactured from high quality stainless steel for corrosion resistance, long life and trouble-free operation. Suitable for non-IBR steam and industrial applications.

Specifications

 Material
:
 Cast Iron (CI)
 Type
:
Non-IBR Water Level Gauge Set
 Connection
:
Screwed (BSPT)

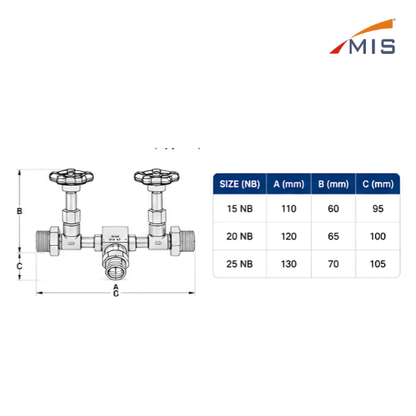

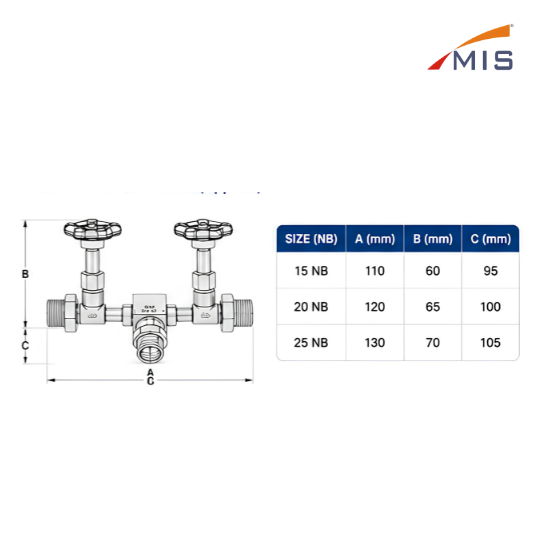

Size (NB)
:
15 NB, 20 NB, 25 NB
Pressure Rating
:

Up to 16 kg/cm² (PN 16)

Temperature Rating
:
 Up to 200°C
Application
:
 Boiler, Tanks, Industrial
Standard
:
  Non-IBR
Thread Type
:
 BSPT (British Standard Pipe Taper)
