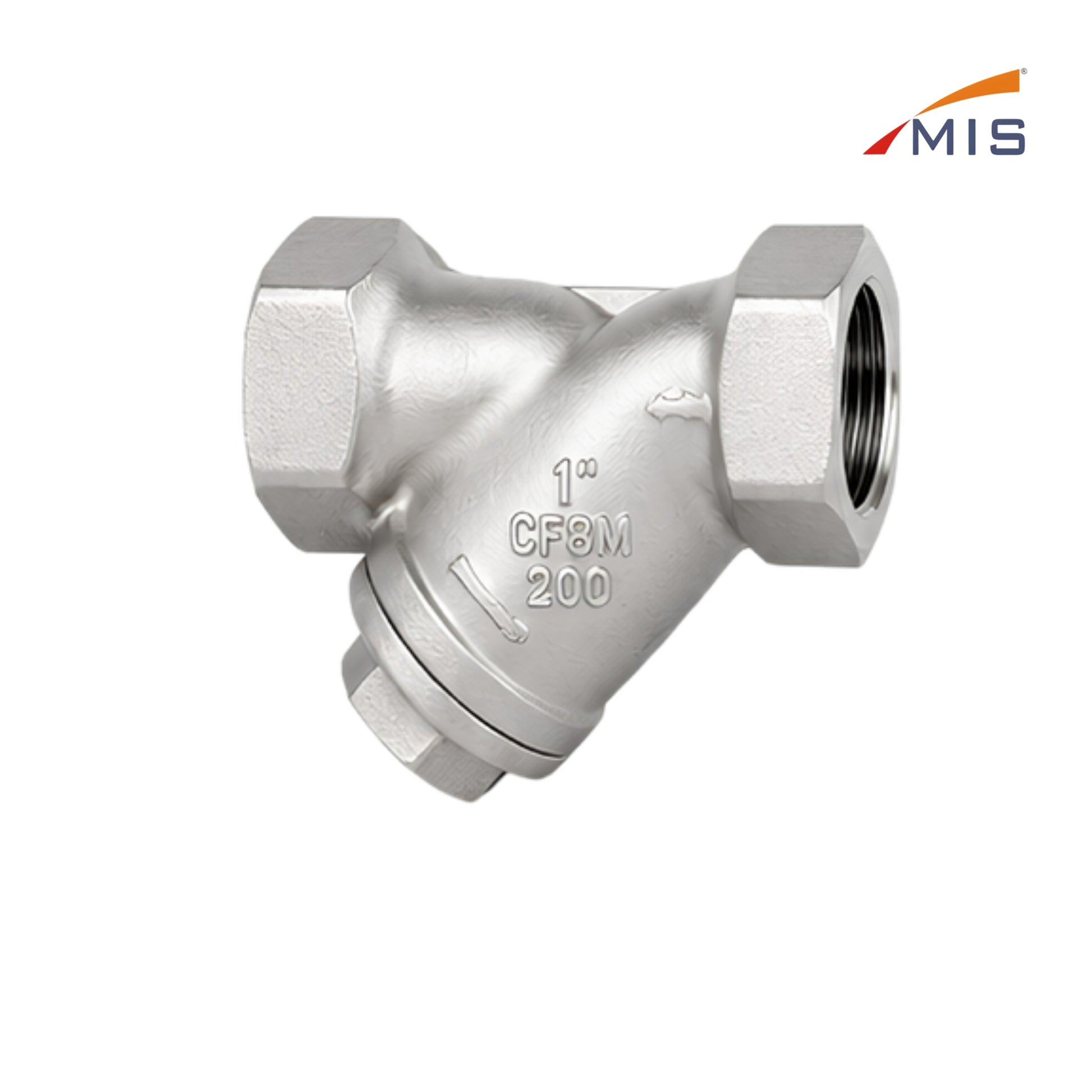

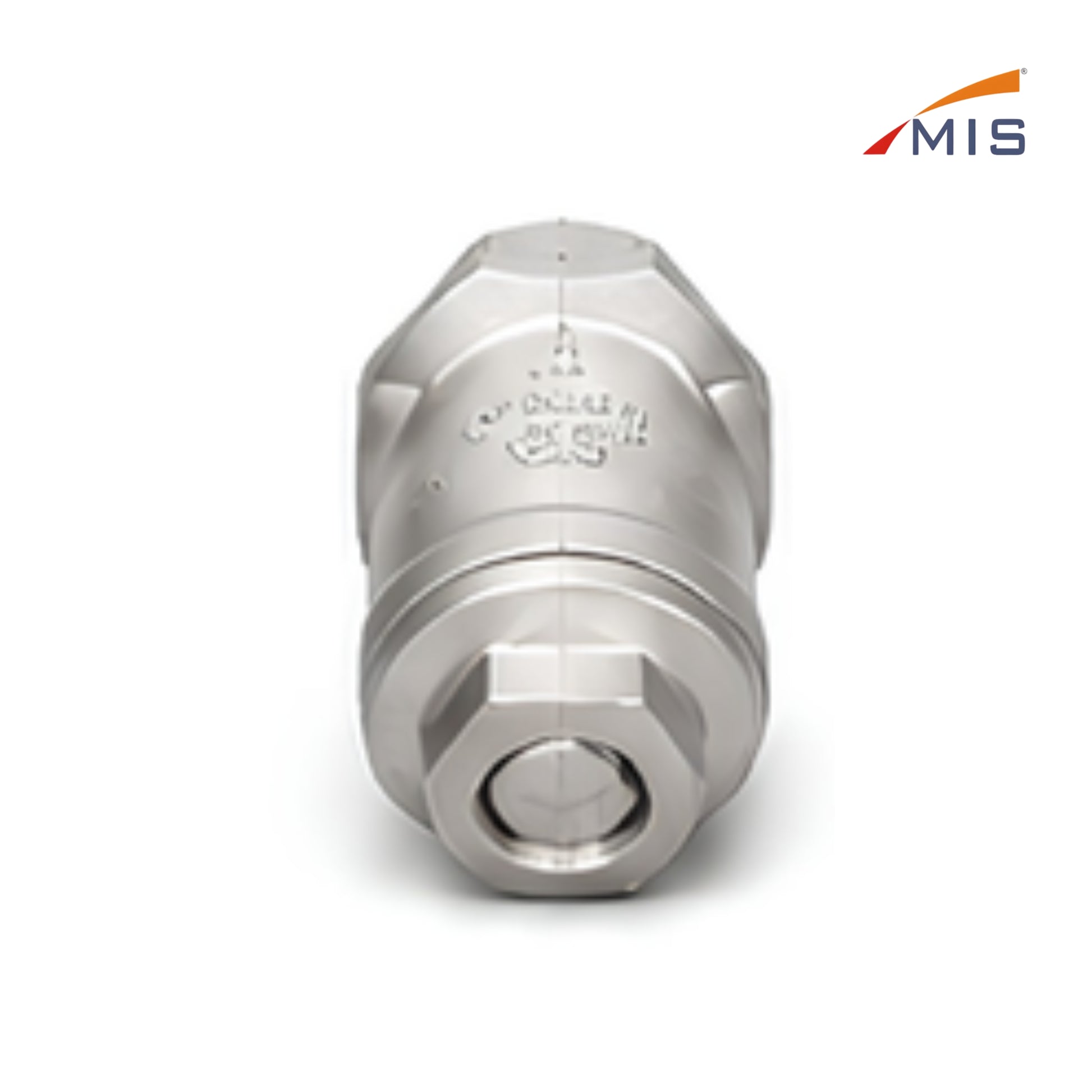

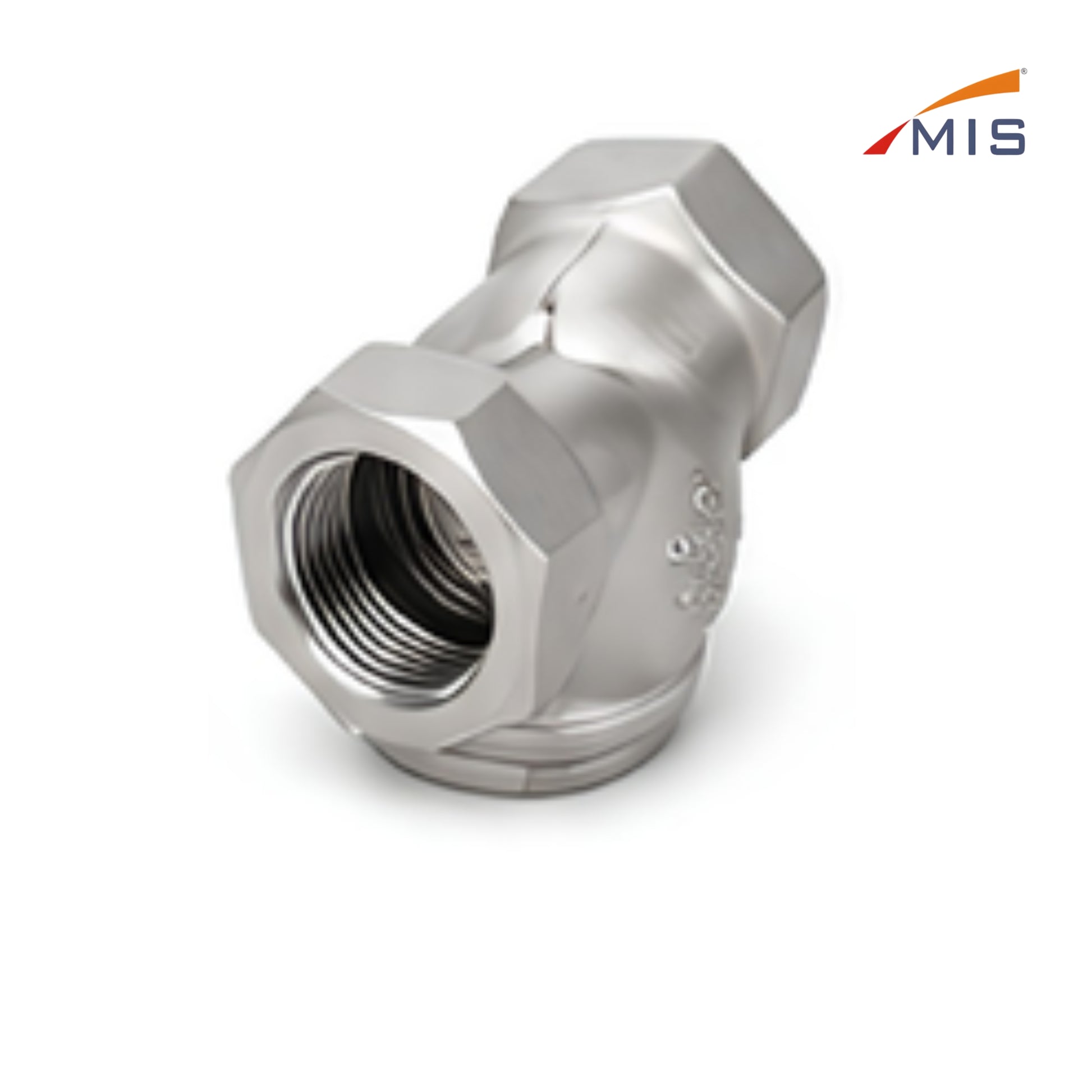

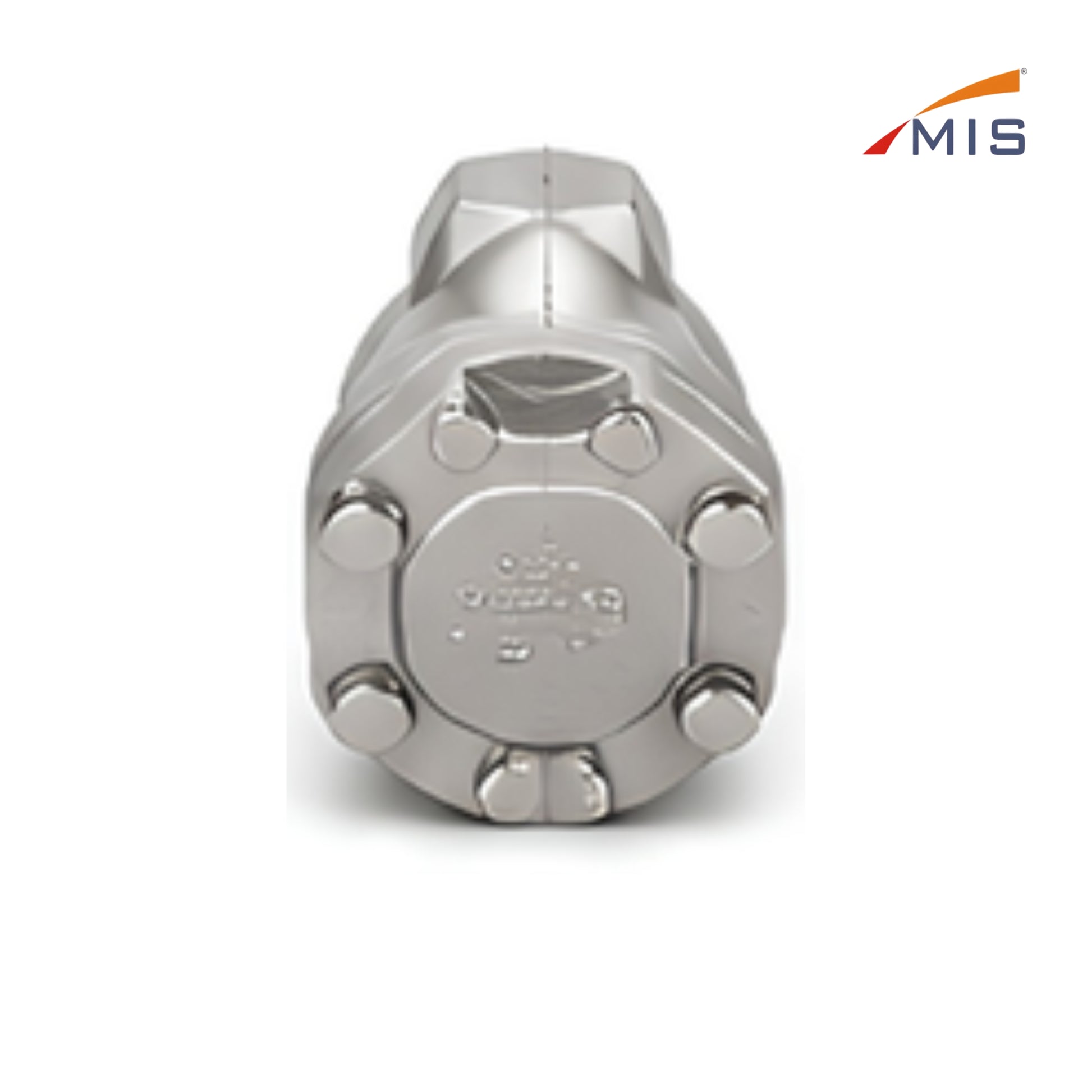

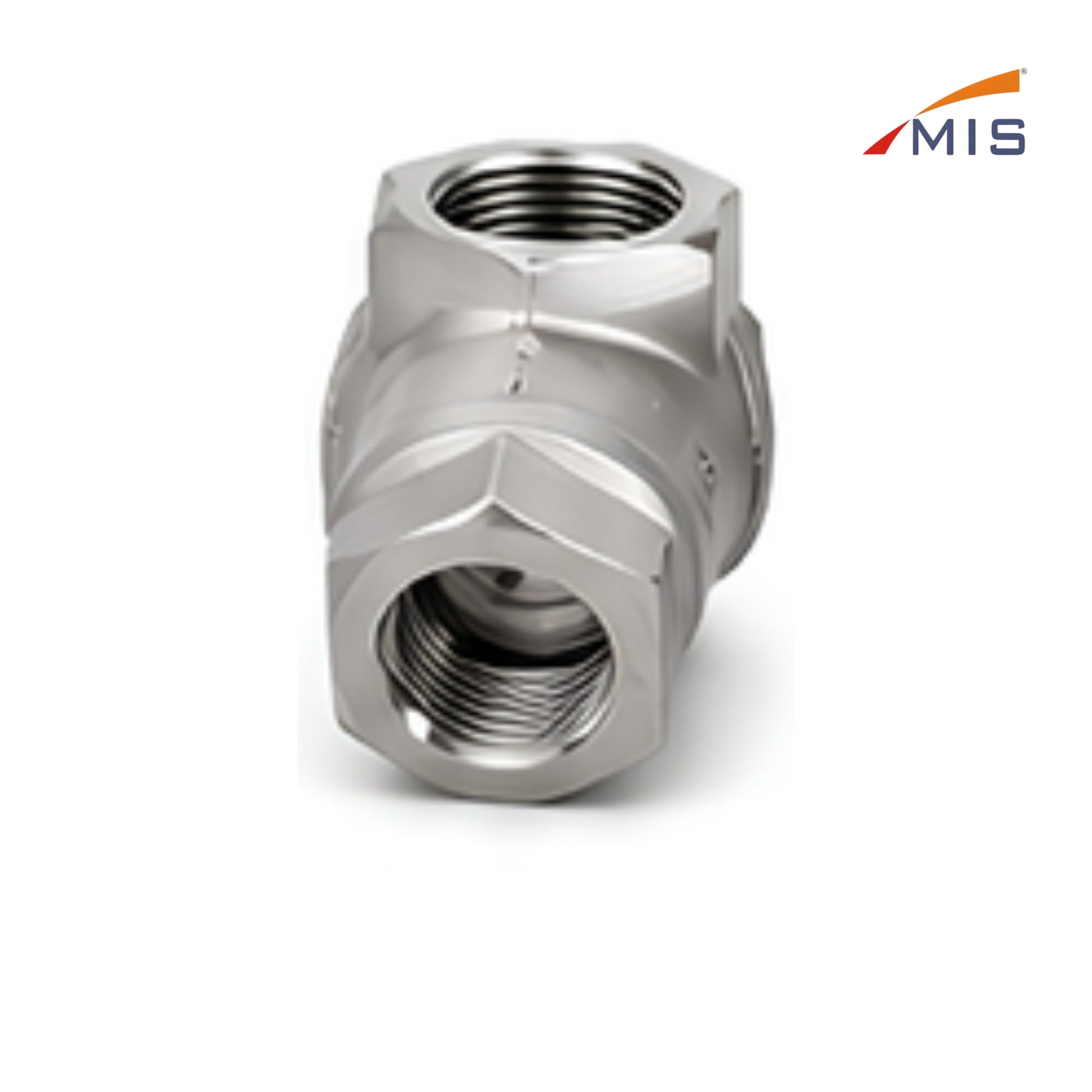

SS Y TYPE STRAINER

SS Y TYPE STRAINER

SIZE
Quantity
Have questions about orders, wholesale pricing, or bulk inquiries?

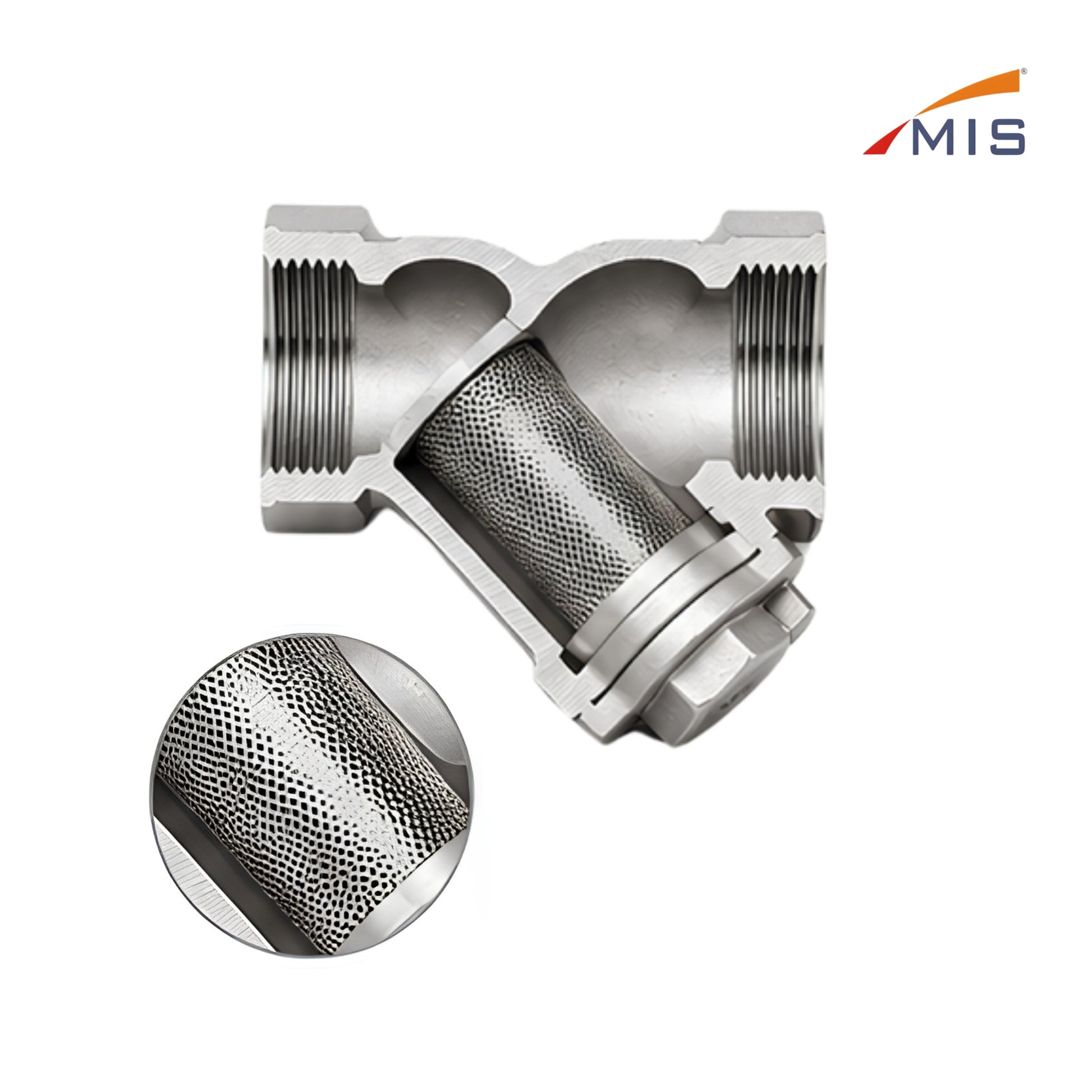

SS Y Type Strainer is used to remove dirt, rust, scale and other foreign particles from pipelines and protect downstream equipment from damage. It consists of a perforated stainless steel

screen fitted in a Y-shaped body. The screen can be removed for cleaning through the bolted cover.

 Specifications

Product Name

:
SS Y Type Strainer
Body Material
:
Stainless Stool CF8 / CF8M
TYPE
:
Y Type Strainer
Screen Material
:
Stainless Steel 304/316
 End Connection
:
Screwed (BSP / NPT)
Size (Connection)
:

1/2" (15 NB) to 2" (50 NB)

Rating
:
 200% (PN 16)
Maximum Working Pressure
:
 16 Bar (232 PSI)
Maximum Working Temperature
:
200°C
Standard
:
IBR Approved
Installation
:
Horizontal (Flow in Direction of Arrow)
Category
:

Strainer

Terms & Conditions

Check specifications before purchase.
No return after use/installation.
Report damage within 48 hours.
Shipping charges extra.
Delivery time may vary
